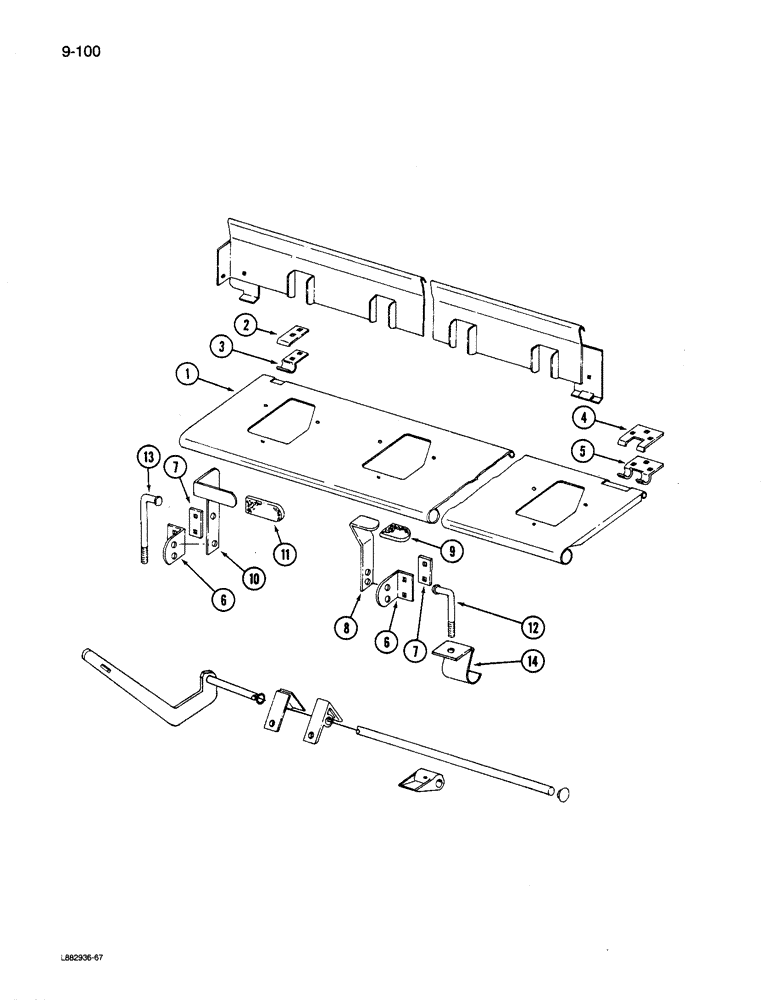

Запчасти Case IH 6200 (9-100) - FERTILIZER DROP BOTTOM (09) - CHASSIS/ATTACHMENTS

1

816213C1

BOTTOM

ASSEMBLY - fertilizer drop (14x6)

1шт.

1

816214C1

BOTTOM

ASSEMBLY - fertilizer drop (16x6)

1шт.

1

815348C1

PLOW BOTTOM

BOTTOM ASSEMBLY - fertilizer drop left (20x6)

1шт.

1

815349C1

PLOW BOTTOM

BOTTOM ASSEMBLY - fertilizer drop right (20x6)

1шт.

1

815352C1

BOTTOM

ASSEMBLY - fertilizer drop left (24x6)

1шт.

1

815353C1

BOTTOM

ASSEMBLY - fertilizer drop right (24x6)

1шт.

1

816215C1

BOTTOM

ASSEMBLY - fertilizer drop left (20x7)

1шт.

1

816216C1

BOTTOM

ASSEMBLY - fertilizer drop right (20x7)

1шт.

1

815356C2

BOTTOM

ASSEMBLY - fertilizer drop left (16x8)

1шт.

1

815357C2

BOTTOM

ASSEMBLY - fertilizer drop right (16x8)

1шт.

1

816217C1

BOTTOM

ASSEMBLY - fertilizer drop left (24x7)

1шт.

1

816218C1

BOTTOM

ASSEMBLY - fertilizer drop right (24x7)

1шт.

1

816909C1

BOTTOM

ASSEMBLY - fertilizer drop left (28x6)

1шт.

1

816910C1

BOTTOM

ASSEMBLY - fertilizer drop right (28x6)

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

- hex, 3/8 x 5/8 inch (20x6, 24x6, 16x8)

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

2

604403R2

CLAMP

STOP - drop bottom hinge intermediate (3 used 14x6; 4 used 20x6, 16x8; 5 used 16x6; 6 used 24x6, 20x7; 8 used 24x, 28x6)

1шт.

3

604404R2

CLAMP

HINGE - drop bottom intermediate (1 per stop)

1шт.

598796R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1", Gr 5

BOLT - round head square neck, 1/4 NC x 1 inch

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

4

815373C1

STOP

- drop bottom hinge outer

2шт.

5

815374C1

HINGE

- drop bottom outer

2шт.

598796R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1", Gr 5

BOLT - round head square neck, 1/4 NC x 1 inch

6шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

6шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

6

603498R1

ANGLE

- drop bottom lever (5 used 14x6, 16x6; 6 used 20x6, 16x8; 8 used 24x6, 20x7; 10 used 24x7, 28x6)

1шт.

7

603587R1

BAR

- lever angle reinforcing (1 per angle)

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

8

815377C1

LEVER

- drop bottom short (4 used 14x6, 16x6, 20x6, 16x8; 6 used 24x6, 20x7; 8 used 28x6, 24x7)

1шт.

118059

RIVET,FH, 3/8" x 9/16"

- flat head, 3/8 x 9/16 inch (1 per lever)

1шт.

9

815378C1

GRIP

- drop bottom short lever (1 per short lever)

1шт.

10

603501R1

LEVER

- drop bottom long (14x6, 16x6)

1шт.

10

603501R1

LEVER

- drop bottom long (20x6, 24x6, 20x7, 24x7, 28x6, 16x8)

2шт.

118059

RIVET,FH, 3/8" x 9/16"

- flat head, 3/8 x 9/16 inch

1шт.

11

815379C1

GRIP

- drop bottom long lever (1 per long lever)

1шт.

12

603469R1

BOLT,3/8" - 16 x 3.3", Steel

- drop bottom short (1 per short lever)

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

13

603470R1

BOLT,3/8" - 16 x 5.1", Steel

- drop bottom long (1 per long lever)

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

14

603497R1

CATCH

- drop bottom (1 per lever)

1шт.
