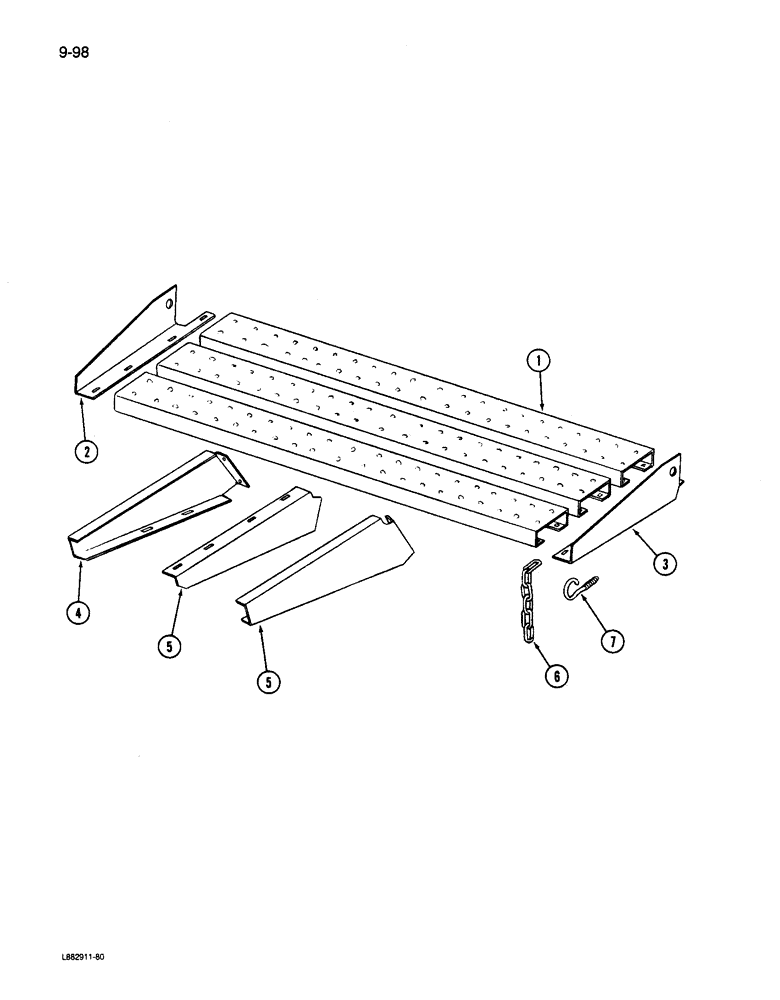

Запчасти Case IH 6200 (9-098) - FOOTBOARD (09) - CHASSIS/ATTACHMENTS

1

818431C1

BOARD

FOOTBOARD - grain drill (20x6, 16x8)

1шт.

1

818394C1

BOARD

FOOTBOARD - grain drill (24x6, 20x7)

1шт.

1

818428C1

BOARD

FOOTBOARD - grain drill (28x6, 24x7)

1шт.

1

818434C1

BOARD

FOOTBOARD - grain drill (16x6)

1шт.

1

818437C1

BOARD

FOOTBOARD - grain drill (14x6)

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

23050R1

SQ HOLE WASHER,.344" x 3/4" x .060", Sq. Hole

- square hole, 11/32 x 3/4 x 3/64 inch

1шт.

20893R1

WASHER

- flat, 11/32 x 1 x 7/64 inch

1шт.

120376

NUT,5/16"-18, G5

1шт.

2

817686C1

ARM

- footboard pivot left

1шт.

3

817687C1

ARM

- footboard pivot right

1шт.

4

818410C1

SUPPORT

- footboard center (14x6, 16x6)

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

5

818409C1

SUPPORT

- footboard inner (20x6, 16x8, 24x7, 24x6 , 20x7, 28x6)

2шт.

6

817685C1

CHAIN (AG)

CHAIN - footboard hold-up

1шт.

7

159780C1

EYEBOLT,3/8" - 16 x 2.20", Full Thd

- footboard hold-up

1шт.

619856R1

WASHER

- flat, 13/32 x 1 x 1/16 inch

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.
