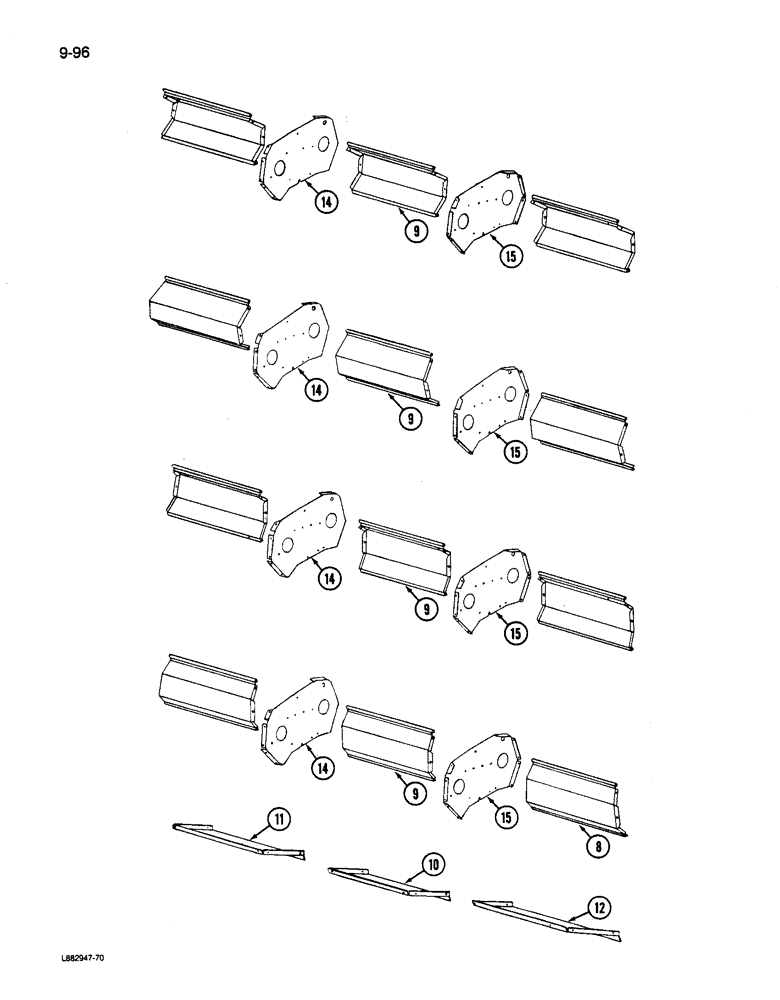

Запчасти Case IH 6200 (9-096) - PARTITION PANELS AND BAFFLES, CONTD (09) - CHASSIS/ATTACHMENTS

8

816806C1

PANEL

- fetilizer partition right (14x6)

1шт.

8

816808C1

SHIELD

PANEL - fertilizer partition right (16x6)

1шт.

8

816810C1

PANEL

- fertilizer partition right (20x6 and 16x8)

1шт.

8

816812C1

PANEL

- fertilizer partition right (24x6 and 20x7)

1шт.

8

816814C1

PANEL

- fertilizer partition right (28x6 and 24x7)

1шт.

9

816290C1

PANEL

- fertilizer partition center

1шт.

10

816804C1

PANEL

- fertilizer partition center

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

- hex, 3/8 NC x 5/8 inch

14шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

14шт.

120377

NUT,3/8" - 16, Gr 5

14шт.

11

815822C1

PANEL

- grain parition left (20x6 and 16x8)

1шт.

11

815826C1

PANEL

- grain partition left (24x6 and 20x7)

1шт.

11

816080C1

PANEL

- grain partition left (28x6 and 24x7)

1шт.

12

815823C1

PANEL

- grain partition right (20x6 and 16x8)

1шт.

12

815827C1

PANEL

- grain partition right (24x6 and 20x7)

1шт.

12

816081C1

PANEL

- grain partition right (28x6 and 24x7)

1шт.

13

815832C1

PANEL

- grain partition center

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex, 3/8 NC x 3/4 inch

10шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

14

816072C2

BAFFLE

- hopper left

1шт.

15

816073C2

BAFFLE

- hopper right

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex, 3/8 NC x 3/4 inch

20шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

20шт.

120377

NUT,3/8" - 16, Gr 5

20шт.
