Запчасти Case IH 6200 (4-04) - PLANTING MONITOR, SEED FLOW I (04) - ELECTRICAL SYSTEMS

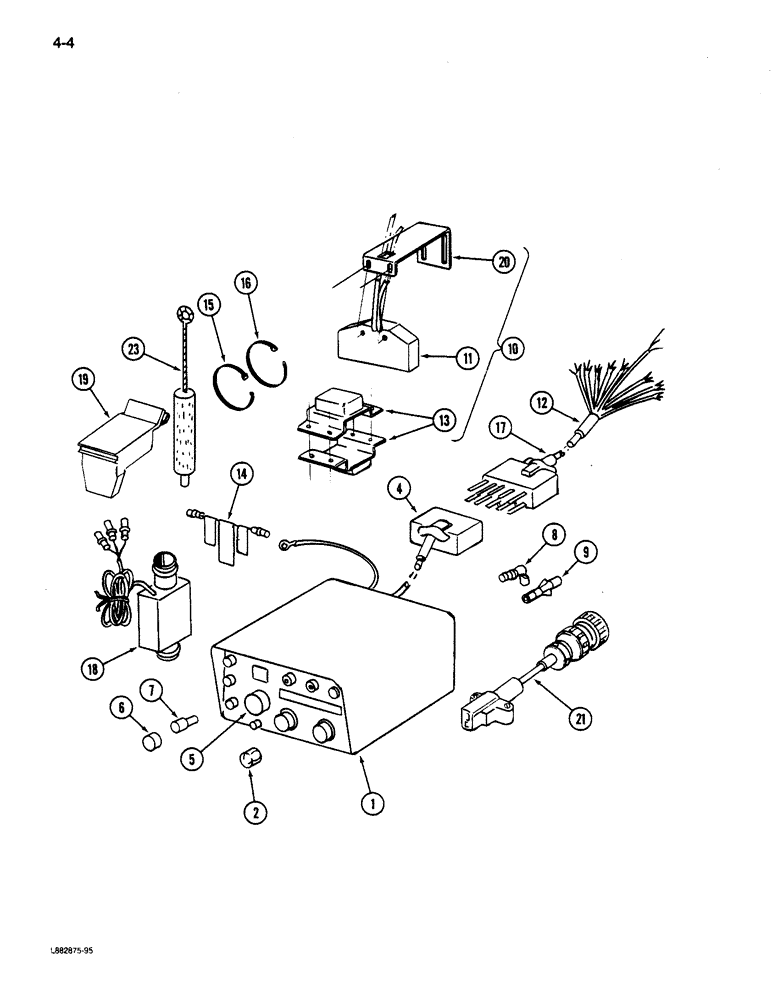

Схема запчастей Case IH 6200 - (4-04) - PLANTING MONITOR, SEED FLOW I (04) - ELECTRICAL SYSTEMS
19
13
4
21
18
9
2
20
16
1
6
10
8
17
15
12
7
5
14
11
23

Артикул

Название

Примечание

Количество

79299C1

CONSOLE

ASSEMBLY - seed flow monitor

1шт.

1

NSS

NOT SOLD SEPARAT

CONSOLE - seed flow monitor (Order 79299C1)

1шт.

2

9426337

FUSE,3 Amp, Type 3AG

- 3 ampere

1шт.

4

128814C1

SOCKET

- female connector

1шт.

5

128816C1

BUZZER

- sonalert

1шт.

6

58499C1

LENS

- amber

1шт.

7

58554C1

BULB,C2F, #1892, 14V

- light, No. 1892

1шт.

8

58558C1

SUPPRESSOR

- spark plug

1шт.

9

58559C1

SUPPRESSOR

- distributor

1шт.

133924C1

DECAL

- seed flow

1шт.

10

819972C91

SENSOR

KIT - granular shaft sensor (Includes Ref. 11, 20, 13)

1шт.

11

818367C91

SENSOR

ASSEMBLY - shaft rotation (Includes Ref. 16)

1шт.

167047

SELF-TAP SCREW,Cross Pan Hd, #8 - 32 x 1/2"

SCREW - pan head cross recess, No. 8 x 1/2 inch

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

12

819974C91

HARNESS

- monitor, 12 contact plug (Includes Ref. 14 through 17)

1шт.

12

819975C91

HARNESS

- monitor, 10 contact plug

1шт.

12

843408C91

HARNESS

- extension cable, two drill hitch

1шт.

86982776

SCREW,Rd, #4 - 40 x 5/16"

- round head slotted, No 4 x 5/16 inch

2шт.

225-14104

NUT,#4-40

- machine screw, No. 4

2шт.

131043

LOCK WASHER,#4

Washer, Lock, #4

2шт.

13

818368C91

MAGNET

- feed shaft

1шт.

14

58557C1

ELECTRICAL WIRE

WIRE - shorteining

1шт.

15

58555C1

FASTENER

STRAP - retaining, 7 inch long

1шт.

16

58556C1

CABLE TIE

STRAP - retaining, 14 inch long

1шт.

17

128813C1

CONNECTOR,ELECTRIC

CONNECTOR - male connection plug

1шт.

819971C91

SENSOR

- seed

1шт.

18

NSS

NOT SOLD SEPARAT

SENSOR - (Order 819971C91)

1шт.

19

841109C1

SHIELD

- light

1шт.

20

818369C91

BRACKET

- sensor feed shaft

1шт.

450644

BEARING ASSY,50 mm ID x 110 mm OD x 27 mm

- hex machine, No. 8 x 3/8 inch

2шт.

495-21019

WASHER,#8

- flat, 3/16 x 7/16 x 1/32 inch

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

120622

NUT,#8-32

2шт.

21

90925C1

CABLE

HARNESS - monitor adapter (Convert cyclomiter 2 console to grain drill seed flow system)

1шт.

23

128817C1

BRUSH, COMMUTATOR

BRUSH - sensor cleaning

1шт.

Выбрано товаров: 35
