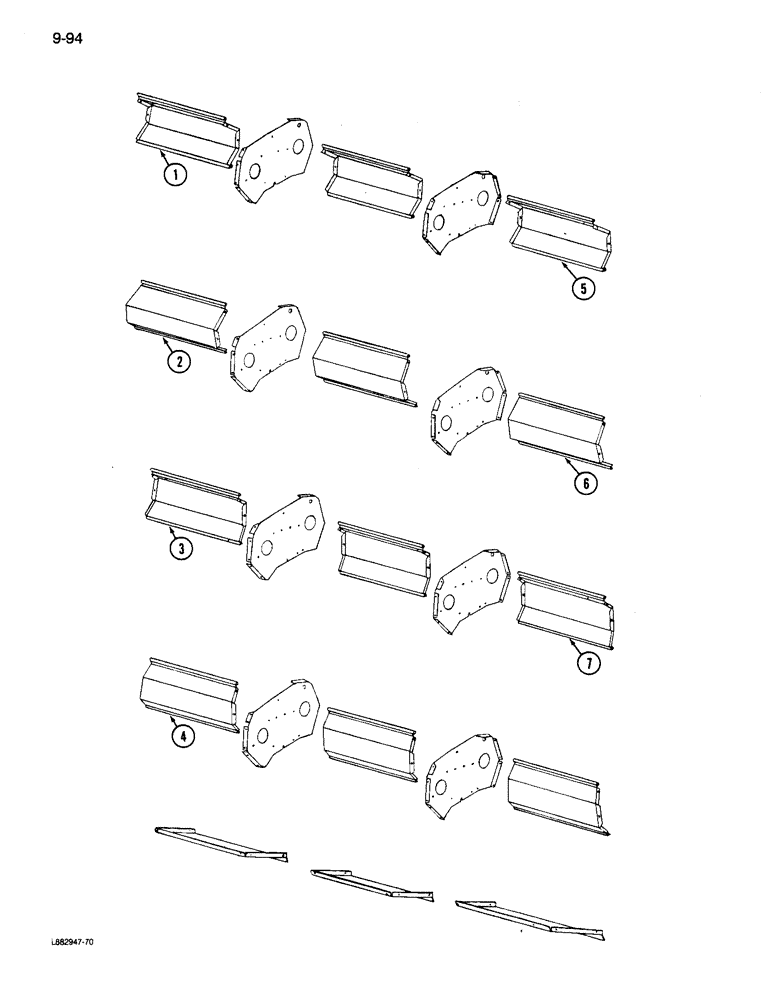

Запчасти Case IH 6200 (9-094) - PARTITION PANELS AND BAFFLES (09) - CHASSIS/ATTACHMENTS

1

816280C1

PANEL - fertilizer partition left (14x6)

1шт.

1

816282C1

PANEL

- fertilizer partition left (16x6)

1шт.

1

816284C1

PANEL

- fertilizer partition left (20x6 and 16x8)

1шт.

1

816286C1

PANEL

- fertilizer partition left (24x6 and 20x7)

1шт.

1

816288C1

PANEL

- fertilizer partition left (24x7 and 28x6)

1шт.

2

816281C1

PANEL

- fertilizer partition left (14x6)

1шт.

2

816283C1

PANEL

- fertilizer partition left (16x6)

1шт.

2

816285C1

PANEL

- fertilizer partition left (20x6 and 16x8)

1шт.

2

816287C1

PANEL

- fertilizer partition left (24x6 and 20x7)

1шт.

2

816289C1

PANEL

- fertilizer partition left (28x6 and 24x7)

1шт.

3

816806C1

PANEL

- fertilizer partition left (14x6)

1шт.

3

816808C1

SHIELD

PANEL - fertilizer partition left (16x6)

1шт.

3

816810C1

PANEL

- fertilizer partition left (20x6 and 16x8)

1шт.

3

816812C1

PANEL

- fertilizer partition left (24x6 and 20x7)

1шт.

3

816814C1

PANEL

- fertilizer partition left (28x6 and 24x7)

1шт.

4

816807C1

PANEL

- fertilizer partition left (14x6)

1шт.

4

816809C1

PANEL

- fertilizer partition left (16x6)

1шт.

4

816811C1

PANEL

- fertilizer partition left (20x6 and 16x8)

1шт.

4

816813C1

PANEL

- fertilizer partition left (24x6 and 20x7)

1шт.

4

816815C1

PANEL

- fertilizer partition left (28x6 and 24x7)

1шт.

5

816281C1

PANEL

- fertilizer partition right (14x6)

1шт.

5

816283C1

PANEL

- fertilizer partition right (16x6)

1шт.

5

816285C1

PANEL

- fertilizer partition right (20x6 and 16x8)

1шт.

5

816287C1

PANEL

- fertilizer partition right (24x6 and 20x7)

1шт.

5

816289C1

PANEL

- fertilizer partition right (28x6 and 24x7)

1шт.

6

816280C1

PANEL - fertilizer partition right (14x6)

1шт.

6

816282C1

PANEL

- fertilizer partition right (16x6)

1шт.

6

816284C1

PANEL

- fertilizer partition right (20x6 and 16x8)

1шт.

6

816286C1

PANEL

- fertilizer partition right (24x6 and 20x7)

1шт.

6

816288C1

PANEL

- fertilizer partition right (24x7 and 28x6)

1шт.

7

816807C1

PANEL

- fertilizer partition right (14x6)

1шт.

7

816809C1

PANEL

- fertilizer partition right (16x6)

1шт.

7

816811C1

PANEL

- fertilizer partition right (20x6 and 16x8)

1шт.

7

816813C1

PANEL

- fertilizer partition right (24x4 and 20x7)

1шт.

7

816815C1

PANEL

- fertilizer partition right (28x6 and 24x7)

1шт.
