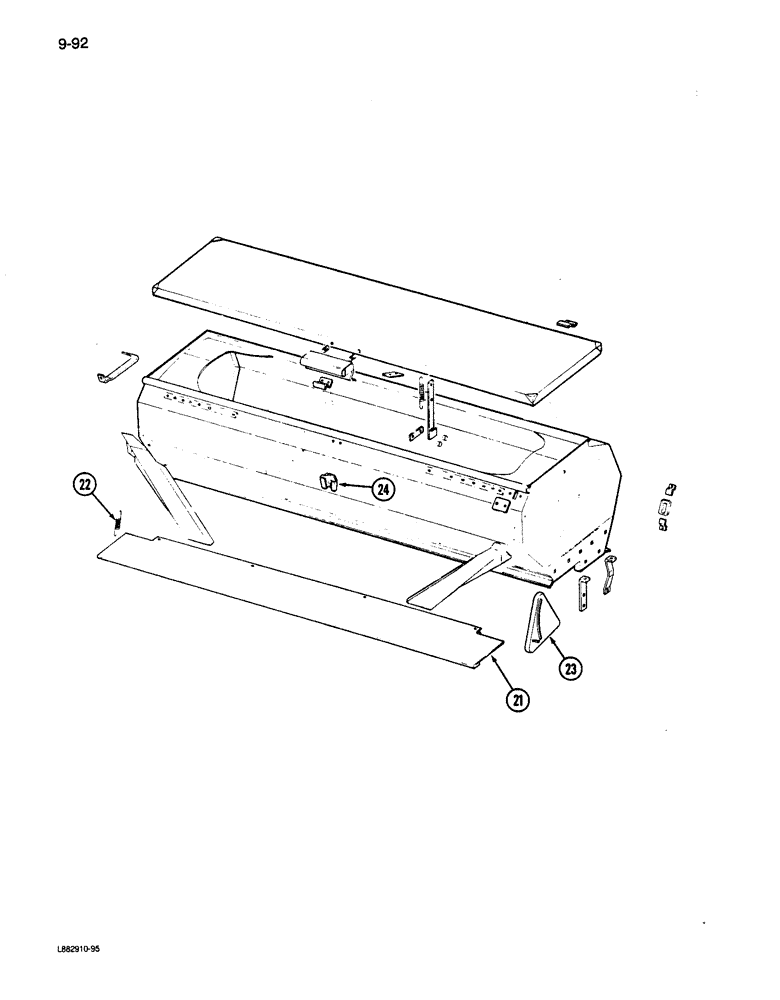

Запчасти Case IH 6200 (9-092) - GRAIN AND FERTILIZER HOPPER (09) - CHASSIS/ATTACHMENTS

21

816202C2

COVER

- fertilizer (14x6)

1шт.

21

816203C2

COVER

- fertilizer (16x6)

1шт.

21

816204C2

COVER

- fertilizer (20x6 and 16x8)

1шт.

21

816205C2

COVER

- fertilizer (24x6 and 20x7)

1шт.

21

816206C2

COVER

- fertilizer (28x6 and 24x7)

1шт.

22

815891C1

SPRING

- fertilizer cover

4шт.

23

817439C1

INDICATOR

- fertilizer left

1шт.

23

817440C1

INDICATOR

- fertilizer right

1шт.

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

24

398976R1

BRACKET

- SMV mounting

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.
