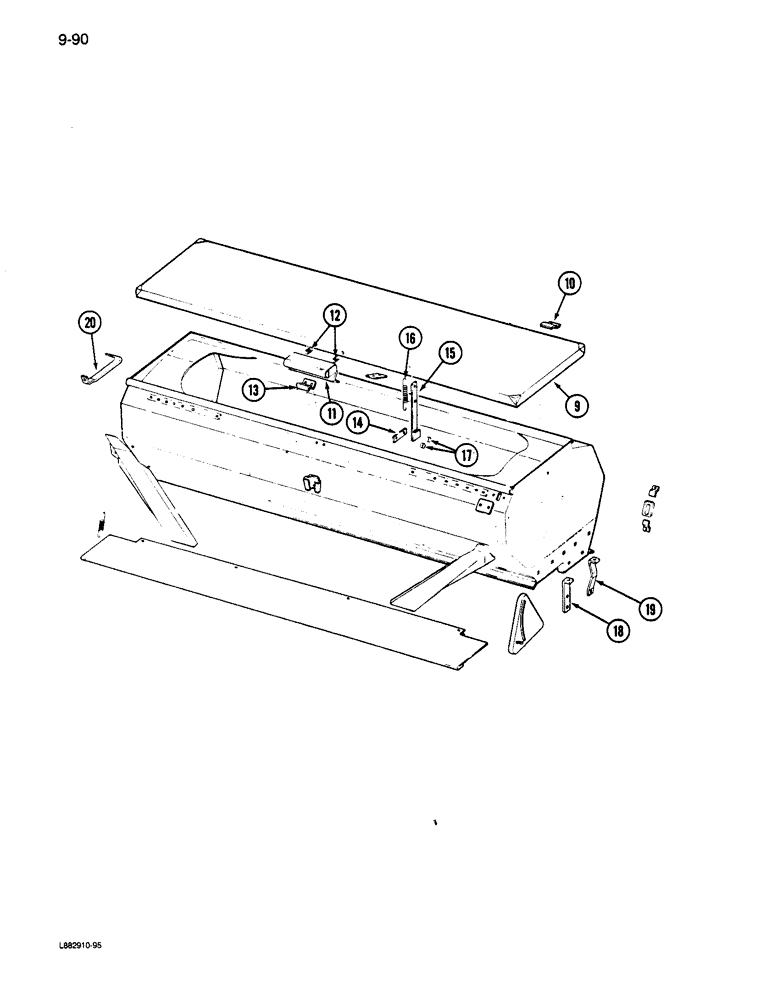

Запчасти Case IH 6200 (9-090) - GRAIN AND FERTILIZER HOPPER, CONTD (09) - CHASSIS/ATTACHMENTS

9

816082C1

COVER

- hopper (14x6)

1шт.

p/n 816082c1 is for a 7 1/2 ft door

1шт.

9

816083C1

COVER

- hopper (16x6)

1шт.

p/n 816083c1 is for a 8 1/2 ft door

1шт.

9

816084C1

COVER

- hopper (20x6 and 16x8)

1шт.

p/n 816084c1 is for a 10 1/2 ft door

1шт.

9

816085C1

COVER

- hopper (24x6 and 20x7)

1шт.

p/n 816085c1 is for a 12 1/2 ft door

1шт.

9

816086C1

COVER

- hopper (28x6 and 24x7)

1шт.

p/n 816086c1 is for a 14 ft door. MJP 6/4/99.

1шт.

10

815173C1

HINGE

- cover (14x6, 16x6)

5шт.

10

815173C1

HINGE

- cover (20x6, 24x6, 28x6, 20x7, 24x7, 16x8)

7шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

- pan head slotted, 1/4 NC x 5/8 inch

1шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

11

815174C1

LATCH

- hopper cover

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (20x6, 16x8, 24x6, 20x7, 28x6, 24x7)

2шт.

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9413952

LOCK NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

2шт.

120376

NUT,5/16"-18, G5

2шт.

12

N32176

SPRING

- cover latch

2шт.

13

815175C1

CLIP

- latch

1шт.

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

BOLT - round head square neck, 1/4 NC x 1/2 inch

2шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

14

815178C1

SPACER

SUPPORT - arm retaining

2шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

- hex, 3/8 NC x 7/8 inch

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

15

815176C1

ARM

- cover hold open

2шт.

24660R1

CLEVIS PIN,5/16" x .719"

PIN - headed, 5/16 x 23/32 inch

2шт.

132-330

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

619855R1

WASHER

- flat, 11/32 x 3/4 x 3/64 inch

6шт.

16

398304R1

SPRING

- cover return

2шт.

17

594536R1

BUSHING

- retainer bar

4шт.

18

816144C1

SUPPORT

- hopper (14x6, 16x6, 20x6, 24x6, 20x7, 28x6, 16x8)

4шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

12шт.

1203382

WASHER - lock, 3/8 inch

12шт.

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 x 13/16 x 3/64 inch

8шт.

120377

NUT,3/8" - 16, Gr 5

12шт.

19

816145C1

SUPPORT

- hopper (24x7)

4шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

20

603538R1

BRACKET

BRACE - hopper center (20x6, 24x6, 28x6, 20x7, 24x7, 16x8)

1шт.

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT - round head square neck, 1/4 NC x 3/4 inch

2шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.
