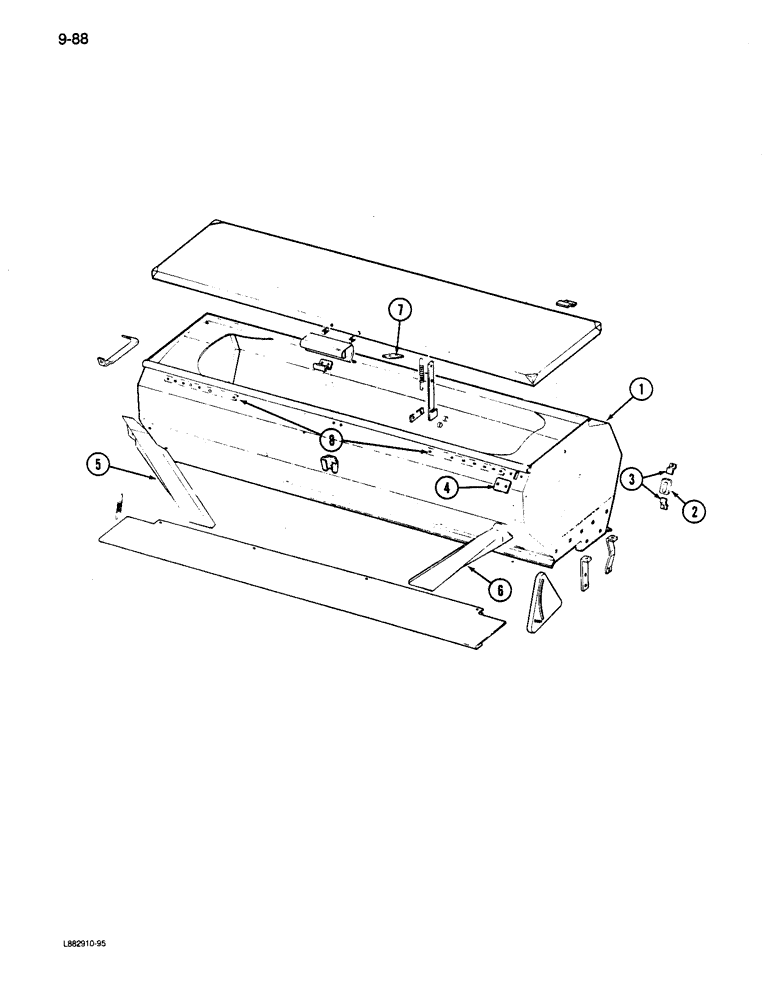

Запчасти Case IH 6200 (9-088) - GRAIN AND FERTILIZER HOPPER (09) - CHASSIS/ATTACHMENTS

1

819067C92

HOPPER

ASSEMBLY - grain and fertilizer (14x6)

1шт.

1

819068C93

HOPPER

ASSEMBLY - grain and fertilizer (16x6)

1шт.

1

819075C93

HOPPER

ASSEMBLY - grain and fertilizer (20x6 and 16x8)

1шт.

1

819076C93

HOPPER

ASSEMBLY - grain and fertilizer (24x6 and 20x7)

1шт.

1

819082C93

HOPPER

ASSEMBLY - grain and fertilizer (28x6 and 24x7)

1шт.

819809C2

DECAL

- caution, no riders (Included with Ref 1)

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

- hex, 3/8 x 5/8 inch

16шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex, 3/8 NC x 3/4 inch

2шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

1шт.

113-433

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

(14x6, 16x6, 20x6, 24x6, 20x7) Hex, 1/2"-13 x 3/4", G5, Full Thd

2шт.

113-433

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

(24x7 and 28x6) Hex, 1/2"-13 x 3/4", G5, Full Thd

4шт.

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

2шт.

2

603264R1

GLASS

WINDOW - seed vision

2шт.

3

604320R1

CLIP

- seed vision window

4шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

- pan head slotted, 1/4 NC x 5/8 inch

4шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

4

815115C1

PLATE

COVER - fertilizer indicator access hole (14x6, 16x6)

1шт.

4

815115C1

PLATE

COVER - fertilizer indicator access hole (20x6, 16x8, 24x8, 20x7, 24x7, 28x8)

2шт.

508892R1

BOLT - round head square neck, 5/16 NC x 3/4 inch (replaces 598802)

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

5

816074C2

BRACE

- hopper diagonal, left

1шт.

6

816075C2

BRACE

- hopper diagonal, right

1шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

7шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

7шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

7шт.

7

816071C1

BAR - vent mast cover (24x7, 28x6)

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

8

816683C1

BAR

- reinforcing (20x6, 24x6, 28x6, 20x7, 24x7, 16x8)

2шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

14шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

14шт.

619856R1

WASHER

- flat, 13/32 x 1 x 1/16 inch

14шт.

120377

NUT,3/8" - 16, Gr 5

14шт.
