Запчасти Case IH 6200 (9-084) - AXLES AND WHEELS ENDWISE TRANSPORT (09) - CHASSIS/ATTACHMENTS

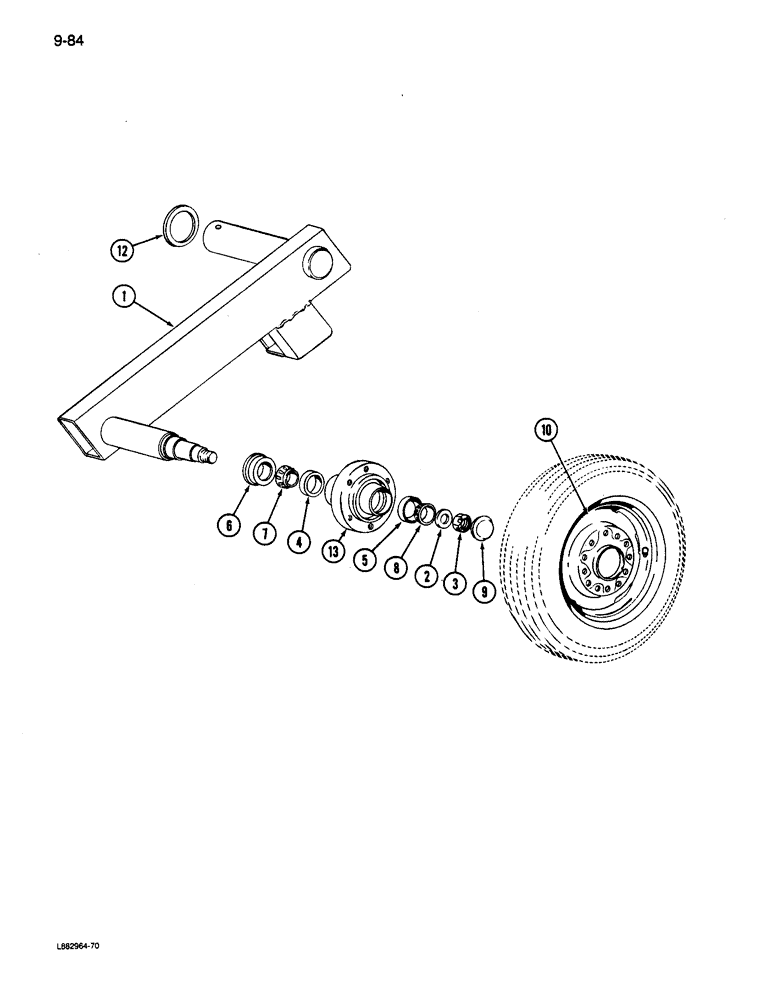

Схема запчастей Case IH 6200 - (9-084) - AXLES AND WHEELS ENDWISE TRANSPORT (09) - CHASSIS/ATTACHMENTS
10
4
2
13
9
5
3
12
6
7
1
8

Артикул

Название

Примечание

Количество

1

819959C92

AXLE

ASSEMBLY - transport wheel left (Includes Ref. 2 and 3)

1шт.

1

819960C92

AXLE

ASSEMBLY - transport wheel right

1шт.

2

619373R1

WASHER

- flat, 29/32 x 2 x 5/32 inch

1шт.

3

70120D

SLOTTED NUT,7/8"-14

NUT - hex, slotted 7/8 inch NC

1шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

19356R1

PIN,3/8" x 3", Coiled

1шт.

4

663558R1

BEARING CUP

CUP - inner bearing, 2-57/64 inch OD

1шт.

5

651817R1

BEARING CUP

CUP - outer bearing, wheel hub

1шт.

6

606556R91

OIL SEAL

SEAL - wheel hub oil

1шт.

7

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE - bearing, inner, 1-5/8 inch ID

1шт.

8

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - bearing, outer

1шт.

9

663906R1

CAP

- wheel hub

1шт.

10

481344R91

WHEEL

- 14x8 KB

1шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

- hex conical, 1/2 NC x 15/16 inch

6шт.

810768C1

VALVE

- tubeless tire steel (Replaces 387841R91)

1шт.

495-81243 - 2 - 5/16 x 3 x 1/8"

1шт.

ref #13 is P/N 606468R21

1шт.

Выбрано товаров: 17
