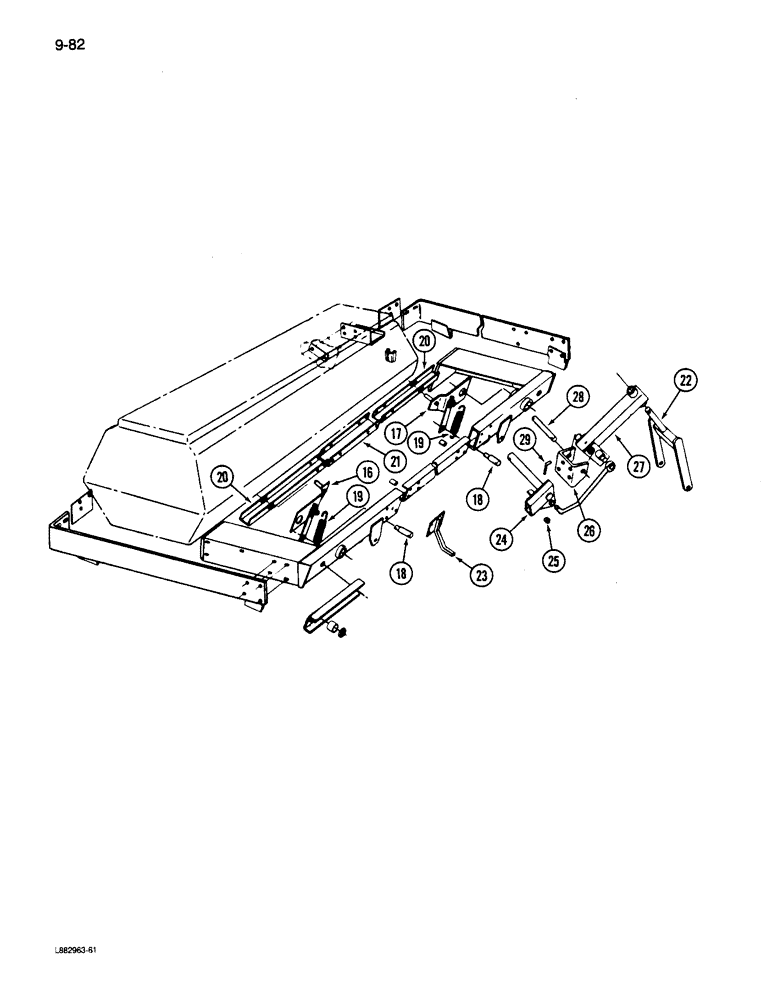

Запчасти Case IH 6200 (9-082) - FRAME ENDWISE TRANSPORT, TRAILING DRILL WITH CASTER WHEEL, CONTD (09) - CHASSIS/ATTACHMENTS

16

819865C1

LEVER

- leveling, left

1шт.

17

819869C1

LEVER

- leveling, right

1шт.

464623R1

WASHER

- flat, 21/32 x 1-1/2 x 3/32 inch

4шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

4шт.

18

819867C2

PIN

- leveling spring anchor

2шт.

464623R1

WASHER

- flat, 21/32 x 1-1/2 x 3/32 inch

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

19

819861C1

COIL SPRING

SPRING - leveling

2шт.

20

819791C1

CHANNEL

- leveling

2шт.

21

819790C1

CHANNEL

- connecting

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

22

817772C2

SUPPORT

- wheel

1шт.

20705R1

WASHER

- flat, 1-25/32 x 2-1/2 x 3/64 inch

1шт.

462997R1

WASHER

- wear

1шт.

119203

PIN,3/8" x 3"

Split (Cotter), 3/8" x 3"

1шт.

23

840998C1

SUPPORT

- transport wheel lockout, left

1шт.

24

817705C2

PIVOT

- caster wheel

1шт.

521159R1

WASHER

- flat, 2-5/16 x 3 x 3/32 inch

1шт.

19356R1

PIN,3/8" x 3", Coiled

1шт.

25

608310R1

BUSHING,32.38mm ID x 50.8mm OD x 25.4mm L

- caster wheel pivot

1шт.

26

817709C1

CHANNEL

- caster wheel support

1шт.

24879R1

BOLT,Hex, 5/8" - 11 x 3", Gr 8

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

464623R1

WASHER

- flat, 21/32 x 1-1/2 x 3/32 inch

4шт.

25528R1

NUT,5/8"-11, G8

- hex, 5/8 inch NC grade 8

4шт.

27

817764C1

SUPPORT

- caster wheel(Replaces 817700C1)

1шт.

87414

LUBE NIPPLE,1/4" - 28

FITTING - grease, 1/4 PT x 17/32 inch

2шт.

20644R1

WASHER

- flat, 1-21/32 x 1-1/4 x 3/64 inch

2шт.

28

817710C1

PIN

- caster wheel pivot

1шт.

617978R1

PIN,3/8" x 2 1/2", Coiled

1шт.

21718R1

WASHER

- flat, 1-17/32 x 2-1/4 x 3/32 inch

1шт.

29

813175C1

PIN

- lock

1шт.
