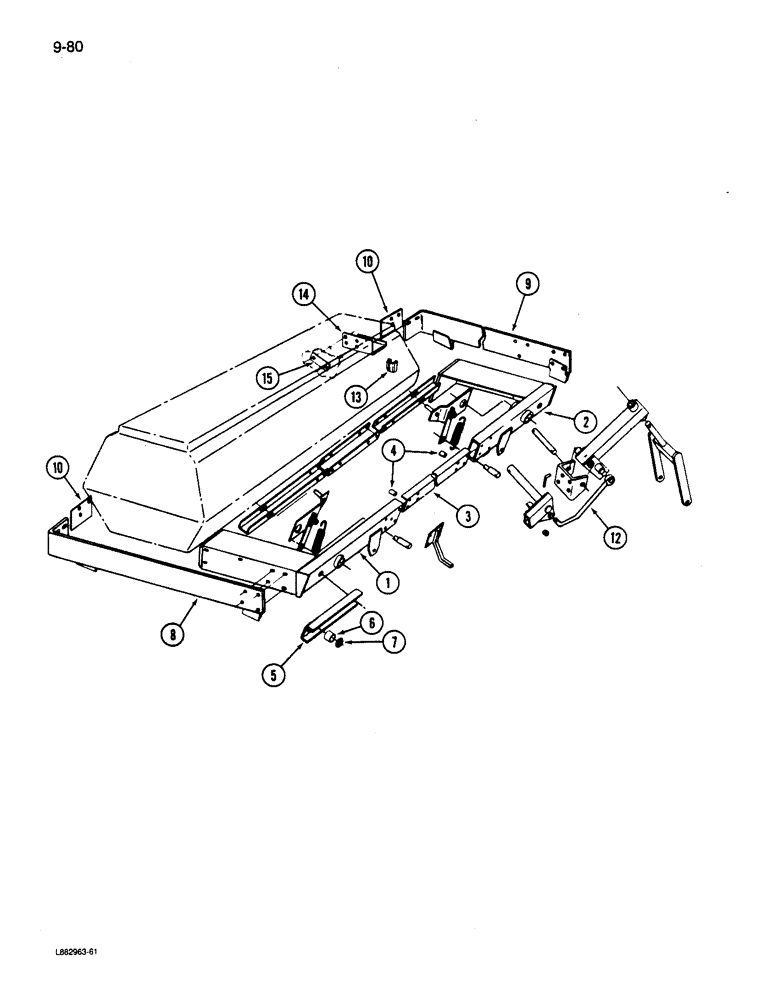

Запчасти Case IH 6200 (9-080) - FRAME ENDWISE TRANSPORT, TRAILING DRILL WITH CASTER WHEEL (09) - CHASSIS/ATTACHMENTS

1

819737C4

FRAME

- transport trail, left

1шт.

2

819738C4

FRAME

- transport trail, right

1шт.

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, taper drive, 1/8 inch

4шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

3

819754C4

CHANNEL

- transport frame tie

1шт.

4

819755C1

SPACER

- pipe

8шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

4шт.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

BOLT - hex, 1/2 NC x 3-1/2 inch

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 3/32 inch

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

5

819806C1

CHANNEL

- drill spreader

1шт.

608501R2

BOLT,Hex, 1" - 8 x 5 1/2", Drilled

- hex, 1 NC x 5-1/2 inch

2шт.

427649

SLOTTED NUT,1"-8, G5

NUT - slotted, 1 inch NC

2шт.

103411

SPLIT (COTTER), 3/16" x 2"

2шт.

6

819823C1

BUSHING

- rear

2шт.

7

819814C1

SPACER

- wear

2шт.

8

819852C2

SUPPORT

- transport frame, left

1шт.

9

819853C2

SUPPORT

- transport frame, right

1шт.

26588R1

CARRIAGE BOLT,#3, 5/8" - 11 x 2 1/4", Gr 5

BOLT - flat head square neck, 5/8 NC x 2-1/4 inch

4шт.

PO21281

PLOW BOLT,1/2" - 13 x 1 3/4", Gr 5

BOLT - flat head square neck, 1/2 NC x 1-3/4 inch

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 3/32 inch

6шт.

464623R1

WASHER

- flat, 21/32 x 1-1/2 x 3/32 inch

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

4шт.

10

819753C2

BAR

PLATE - bracket spacer

4шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

467750R1

WASHER

- flat, 25/32 x 1-1/2 x 3/32 inch

4шт.

280954

NUT,3/4"-10, G5

4шт.

12

817711C1

STEM

ROD - lift

1шт.

21226R1

WASHER

- flat, 1-9/32 x 2 x 3/32 inch

1шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

1шт.

13

398976R1

BRACKET

- SMV mounting

1шт.

14

819967C1

SUPPORT

- marker tube bumper

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex, 3/8 NC x 3/4 inch

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

15

819968C1

BAR

- support backing

1шт.
