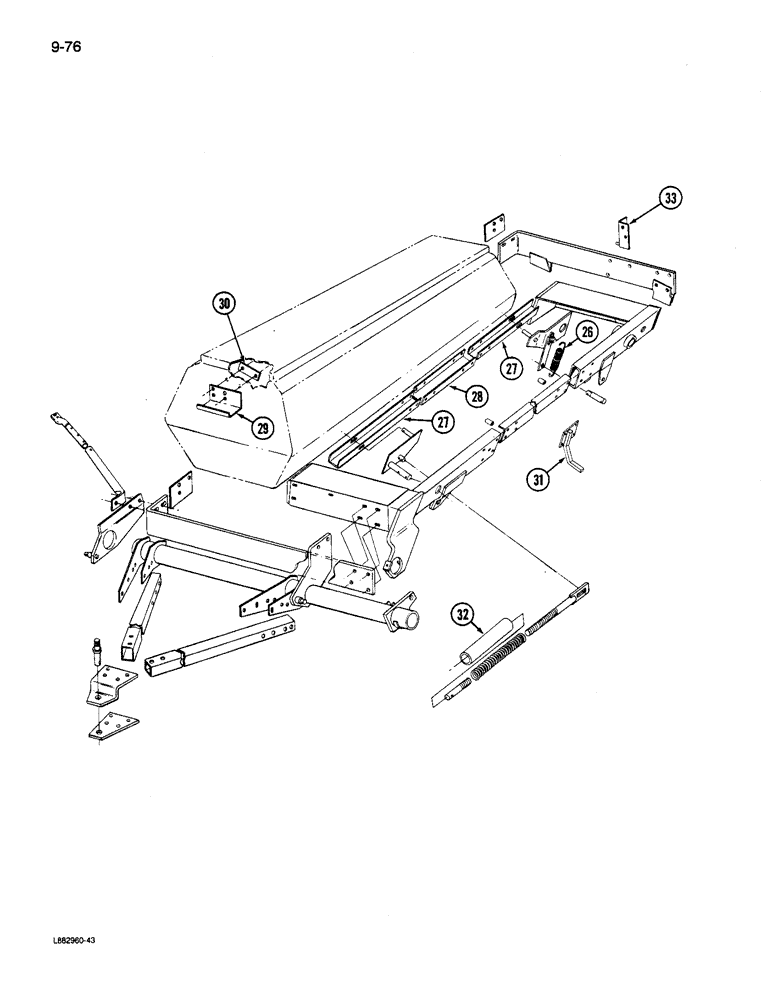

Запчасти Case IH 6200 (9-076) - FRAME AND HITCH ENDWISE TRANSPORT, LEADING DRILL, CONTD (09) - CHASSIS/ATTACHMENTS

26

819861C1

COIL SPRING

SPRING - leveling

1шт.

27

819791C1

CHANNEL

- leveling

2шт.

28

819790C1

CHANNEL

- connecting

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

29

819967C1

SUPPORT

- marker tube bumper

2шт.

30

819968C1

BAR

- support backing

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex, 3/8 NC x 3/4 inch

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

31

841020C1

SUPPORT

- transport wheel lockout, right

1шт.

32

818283C1

TUBE,1.315" OD, 508 mm Length

- spring rod

1шт.

33

819955C1

PIVOT

- marker

1шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

- hex, 1/2 NC x 2 inch

2шт.
