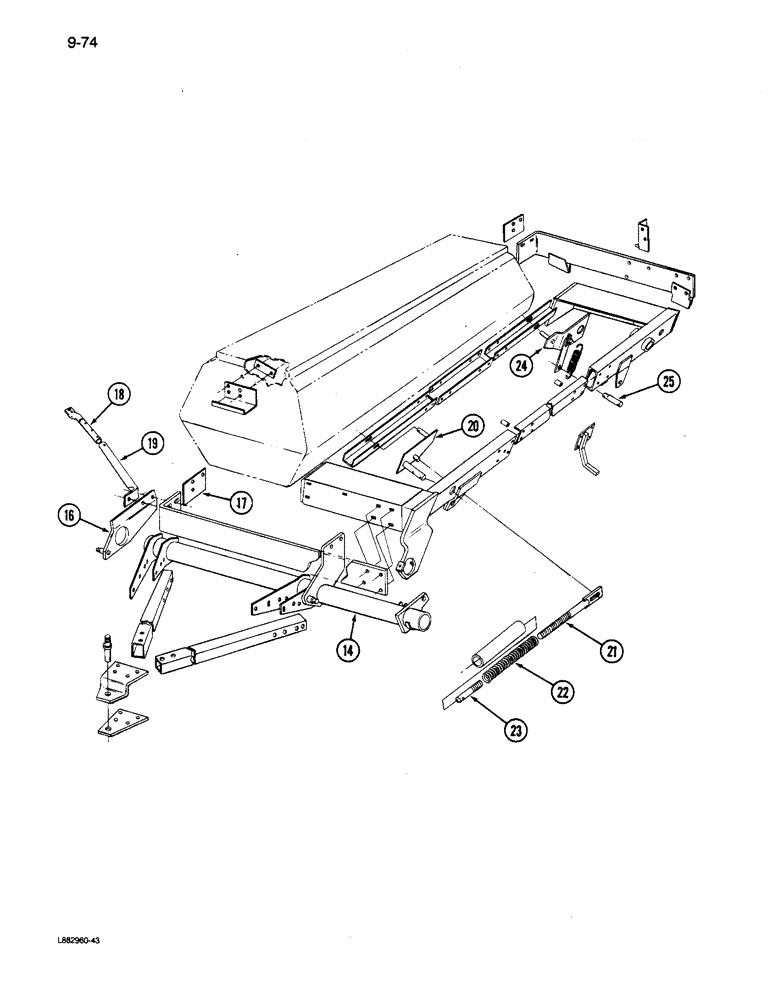

Запчасти Case IH 6200 (9-074) - FRAME AND HITCH ENDWISE TRANSPORT, LEADING DRILL, CONTD (09) - CHASSIS/ATTACHMENTS

14

819756C1

TUBE

- hitch pivot

1шт.

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, taper drive, 1/8 inch

1шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

2шт.

271733

BODY,Hex, 5/8" - 11 x 4 1/2", Gr 5

- hex, 5/8 NC x 4-1/2 inch

2шт.

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- hex, 5/8 NC x 5 inch

2шт.

464623R1

WASHER

- flat, 21/32 x 1-1/2 x 3/32 inch

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

6шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

16

819958C1

SUPPORT

- hitch pivot tube front

1шт.

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, taper drive, 1/8 inch

1шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

17

819753C2

BAR

PLATE - bracket spacer

2шт.

18

819803C3

BRACE

- hitch front

1шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

BOLT - hex, 5/8 NC x 1-3/4 inch

2шт.

464623R1

WASHER

- flat, 21/32 x 1-1/2 x 3/32 inch

1шт.

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

- flange lock, 5/8 inch NC

2шт.

19

819801C1

BRACE

- hitch rear

1шт.

271776

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5

- hex, 3/4 NC x 3-1/4 inch

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

467750R1

WASHER

- flat, 25/32 x 1-1/2 x 3/32 inch

1шт.

280954

NUT,3/4"-10, G5

1шт.

21933R1

PIN

- headed, 5/8 x 2-1/2 inch

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

20

819810C1

LEVER

- leveling front

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

609836R1

WASHER

- flat, 1-1/32 x 1-3/4 x 3/64 inch

2шт.

464623R1

WASHER

- flat, 21/32 x 1-1/2 x 3/32 inch

3шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

3шт.

21

819796C1

ROD

- leveling

1шт.

22

819863C1

SPRING

- leveling rod

1шт.

23

819862C1

STUD

- leveling spring

1шт.

22634R1

PIN,3/8" x 1 3/4"

- headed, 3/8 x 1-3/4 inch

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

24

8198869C1

LEVER - leveling, right

1шт.

464623R1

WASHER

- flat, 21/32 x 1-1/2 x 3/32 inch

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

25

819867C2

PIN

- leveling spring anchor

1шт.

464623R1

WASHER

- flat, 21/32 x 1-1/2 x 3/32 inch

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.
