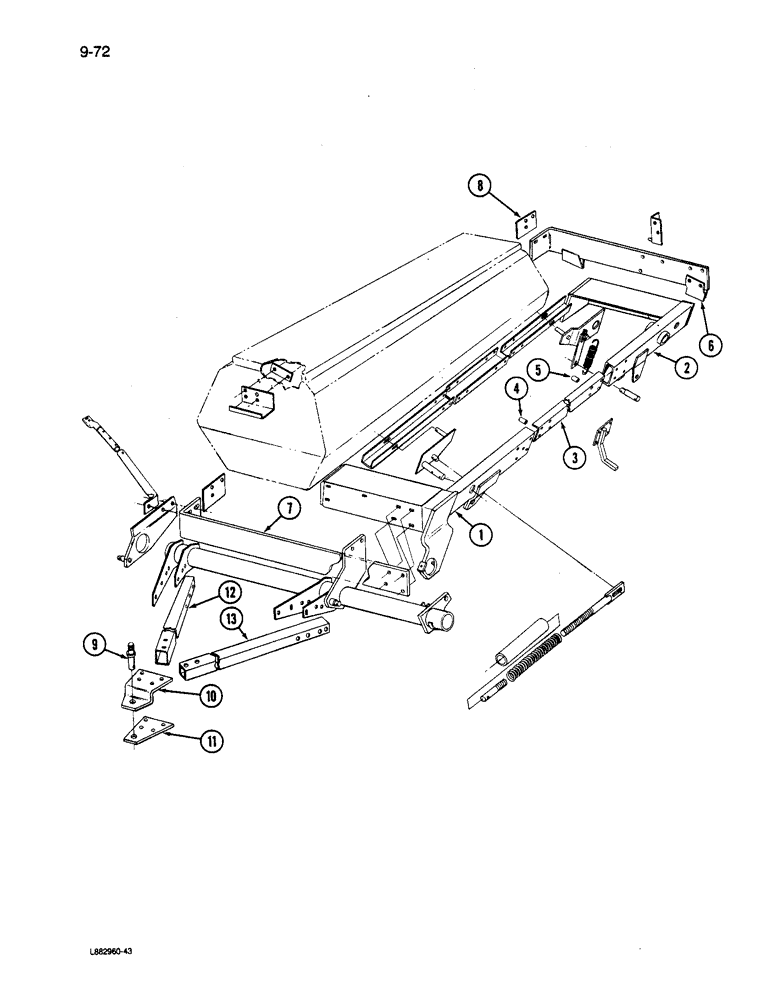

Запчасти Case IH 6200 (9-072) - FRAME AND HITCH ENDWISE TRANSPORT, LEADING DRILL (09) - CHASSIS/ATTACHMENTS

1

819768C4

FRAME

- transport lead, left

1шт.

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, taper drive, 1/8 inch

1шт.

PO21281

PLOW BOLT,1/2" - 13 x 1 3/4", Gr 5

BOLT - flat head square neck, 1/2 NC x 1-3/4 inch

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 3/32 inch

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

2

819738C4

FRAME

- transport, right

1шт.

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, taper drive, 1/8 inch

2шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

3

819754C4

CHANNEL

- transport frame tie

1шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 3/32 inch

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

4

819964C1

SPACER

- pipe

4шт.

5

819755C1

SPACER

- pipe

4шт.

6

819853C2

SUPPORT

- transport frame, right

1шт.

7

819751C2

SUPPORT

- transport frame, left

1шт.

26588R1

CARRIAGE BOLT,#3, 5/8" - 11 x 2 1/4", Gr 5

BOLT - flat head square neck, 5/8 NC x 2-1/4 inch

8шт.

PO21281

PLOW BOLT,1/2" - 13 x 1 3/4", Gr 5

BOLT - flat head square neck, 1/2 NC x 1-3/4 inch

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 3/32 inch

3шт.

464623R1

WASHER

- flat, 21/32 x 1-1/2 x 3/32 inch

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

8шт.

8

819753C2

BAR

PLATE - bracket spacer

2шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

467750R1

WASHER

- flat, 25/32 x 1-1/2 x 3/32 inch

2шт.

280954

NUT,3/4"-10, G5

2шт.

9

472790R2

STUD

PIN - hitch

1шт.

492-11112

LOCK WASHER,1 1/8"

- lock, 1-1/8 inch

1шт.

427359

NUT,1 1/8"-12, G5

- hex, 1-1/8 inch NC

1шт.

392181R91

PIN

- snap lock

1шт.

10

819762C1

SUPPORT

- hitch stud

1шт.

11

819763C1

PLATE

- hitch stud

1шт.

12

819765C1

TUBE,55.8" Length

- hitch left

1шт.

13

819766C1

TUBE,61.1" Length

- hitch right

1шт.

271733

BODY,Hex, 5/8" - 11 x 4 1/2", Gr 5

- hex, 5/8 NC x 4-1/2 inch

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

4шт.
