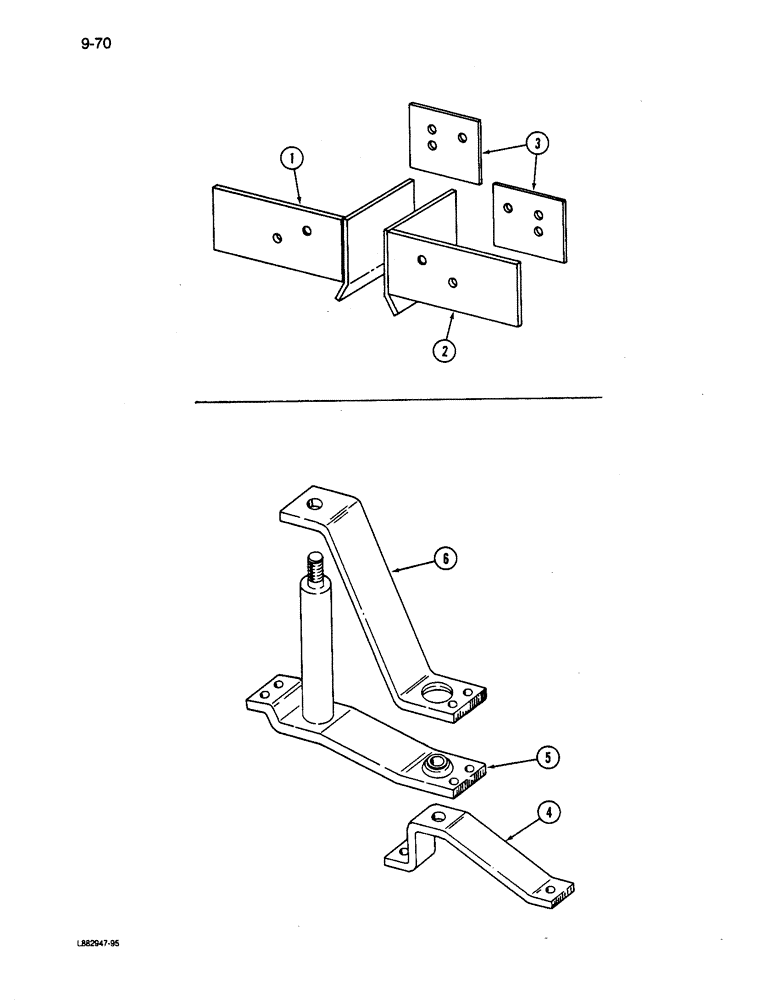

Запчасти Case IH 6200 (9-070) - BUMPER BRACKET REAR CORNER, HITCH SERIAL NUMBER 501 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

1279000C1

BRACKET

- rear corner bumper left

1шт.

2

1279001C1

BRACKET

- rear corner bumper right

1шт.

3

819753C2

BAR

PLATE - bracket spacer

4шт.

271777

KNOB,Hex, 3/4" - 10 x 3 1/2", Gr 5

- hex, 3/4 NC x 3-1/2 inch

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

2шт.

4

604348R2

BRACE

STRAP - land packer adaptor, hitch drill 14x6, 16x6

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

- hex, 1/2 NC x 1-1/2 inch (For duplexing only), hitch drill packer 14x6, 16x6

2шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch (Single drills only), hitch drill packer 14x6, 16x6

2шт.

271114

SPARE PART

BOLT - hex, 3/4 NC x 2-3/4 inch, hitch drill packer 14x6, 16x6

1шт.

120384

WASHER,1/2"

LOCK, , Hitch drill packer 14x6, 16x6 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , Hitch drill packer 14x6, 16x6 1/2"-13, G5

4шт.

218443

NUT

- hex jam, 3/4 inch NC, hitch drill packer 14x6, 16x6

2шт.

5

816523C1

TRAILER HITCH

HITCH - drill/packer 14x6, 16x6

1шт.

492-11100

LOCK WASHER,1"

WASHER, LOCK, , hitch drill packer 14x6, 16x6 1"

1шт.

9849633

NUT,1"-8, G5

hitch drill packer 14x6, 16x6 1"-8, G5

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

- hex, 1/2 NC x 1-1/2 inch, hitch drill packer 14x6, 16x6

2шт.

120384

WASHER,1/2"

LOCK, , Hitch drill packer 14x6, 16x6 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , Hitch drill packer 14x6, 16x6 1/2"-13, G5

2шт.

6

816526C1

SUPPORT

- drill/packer hitch, 14x6, 16x6

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

- hex, 1/2 NC x 1-1/2 inch, hitch drill packer 14x6, 16x6

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , Hitch drill packer 14x6, 16x6 1/2"-13, G5

2шт.
