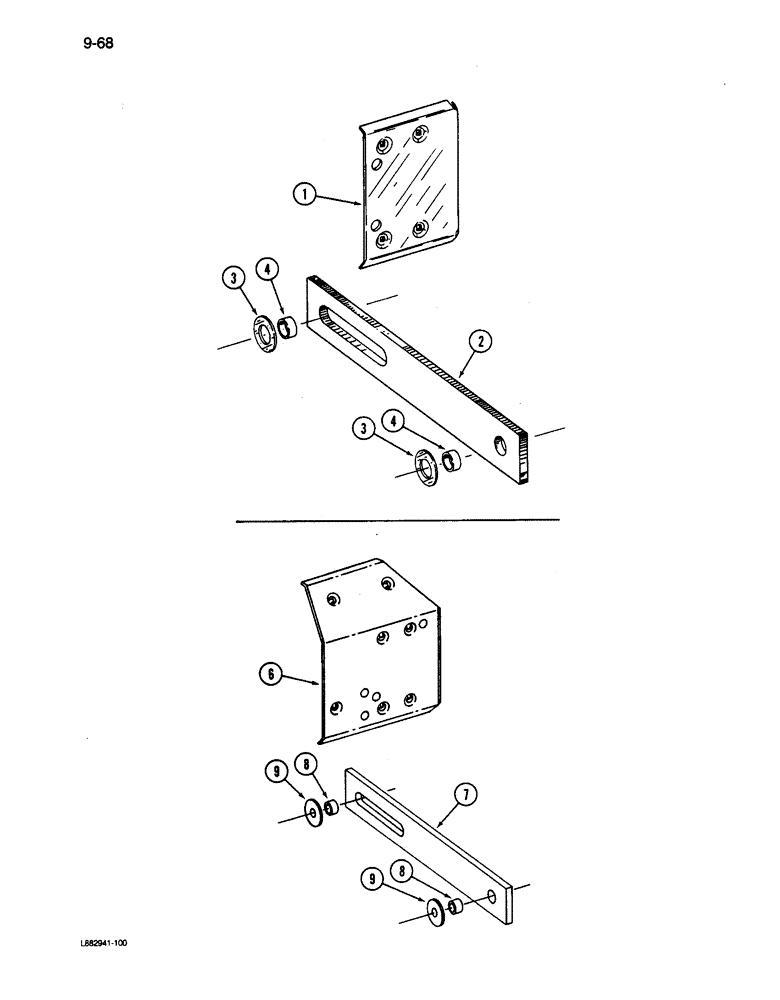

Запчасти Case IH 6200 (9-068) - HITCH BUMPER PLATE AND STABILZIER, DRILLS WITH MULTIPLE HITCHES, PRIOR TO HITCH SERIAL NUMBER 501 (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

PLATE - bumper, two drill, left (Order 1268392C1)

1шт.

1

NSS

NOT SOLD SEPARAT

PLATE - bumper, two drill, right (Order 1268393C1)

1шт.

1

NSS

NOT SOLD SEPARAT

PLATE - bumper, three drill, left (Order 1268392C1)

2шт.

1

NSS

NOT SOLD SEPARAT

PLATE - bumper, three drill, right (Order 1268393C1)

2шт.

1

NSS

NOT SOLD SEPARAT

PLATE - bumper, four drill, left (Order 1268392C1)

3шт.

1

NSS

NOT SOLD SEPARAT

PLATE - bumper, four drill, right (Order 1268393C1)

3шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch (2 per plate)

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch (2 per plate)

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

2

816374C1

BAR

STABILIZER - hitch (Two drill)

1шт.

2

816374C1

BAR

STABILIZER - hitch (Three drill)

2шт.

2

816374C1

BAR

STABILIZER - hitch (Four drill)

3шт.

113-705

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

- hex, 3/4 NC x 2-1/2 inch

1шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

3

816375C1

SPACER

- stabilizer bar (1 per plate)

1шт.

4

597176R1

WASHER

- stabilizer bar (1 per spacer)

1шт.

6

1268392C1

PLATE

- bumper left, hitch s.n. 501 and after

1шт.

6

1268393C1

PLATE

- bumper right, hitch s/n 501 and after

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch, hitch s/n 501 and after

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch, hitch s/n 501 and after

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , Hitch S/N 501 and after 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

Hitch S/N 501 and after 3/8"-16, G5

1шт.

7

816374C1

BAR

STABILIZER - hitch, s/n 501 and after

1шт.

8

1277514C1

BUSHING

SPACER - stabilizer bar, hitch s/n 501 and after

1шт.

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

- hex, 3/4 NC x 2-13/2 inch, hitch S/N 501 and after

1шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, , Hitch S/N 501 and after 3/4"

1шт.

280954

NUT,3/4"-10, G5

Hitch S/N 501 and after 3/4"-10, G5

1шт.

9

597176R1

WASHER

- stabilizer bar, hitch s/n 501 and after

1шт.
