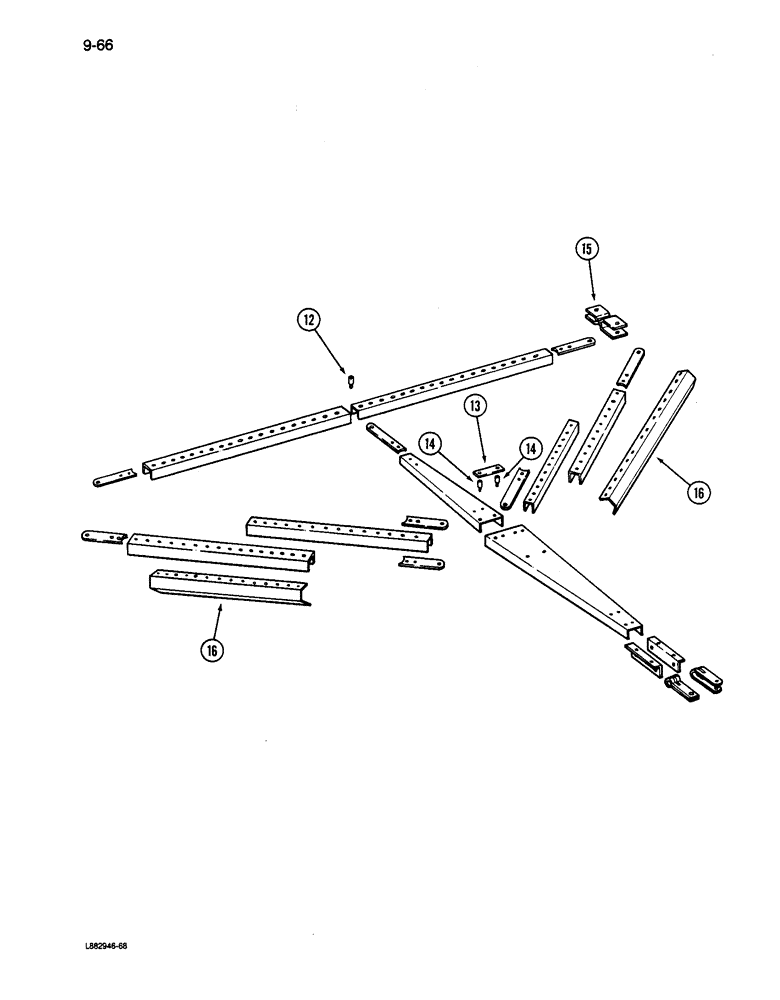

Запчасти Case IH 6200 (9-066) - HITCH TWO DRILL, HITCH THREE DRILL, HITCH LIGHT DUTY 14 X 6, CONTD (09) - CHASSIS/ATTACHMENTS

12

816365C1

STUD

- hitch (Two drill)

1шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

20825R1

WASHER

- flat, 25/32 x 2 x 3/32 inch

2шт.

280954

NUT,3/4"-10, G5

1шт.

471194R1

AXLE PIN

PIN - hair

1шт.

13

816367C1

BAR

BRACE - hitch support

1шт.

14

816365C1

STUD

- hitch

2шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

471194R1

AXLE PIN

PIN - hair

2шт.

15

816368C91

BRACKET

ASSEMBLY - hitch coupling

1шт.

104131

RIVET - binding head, 1/2 x 1-1/2 inch

2шт.

932388R1

PIN,1" x 3 1/2"

- headed, 1 x 3-1/2 inch

1шт.

25419R1

PIN

- headed, 1 x 2-3/4 inch

1шт.

471194R1

AXLE PIN

PIN - hair

1шт.

16

816800C1

CHANNEL

- hitch bumper

2шт.

88691

BOLT,Hex, 3/4" - 10 x 1 1/4", Gr 5, Full Thd

Hex, 3/4"-10 x 1-1/4", G5

4шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.
