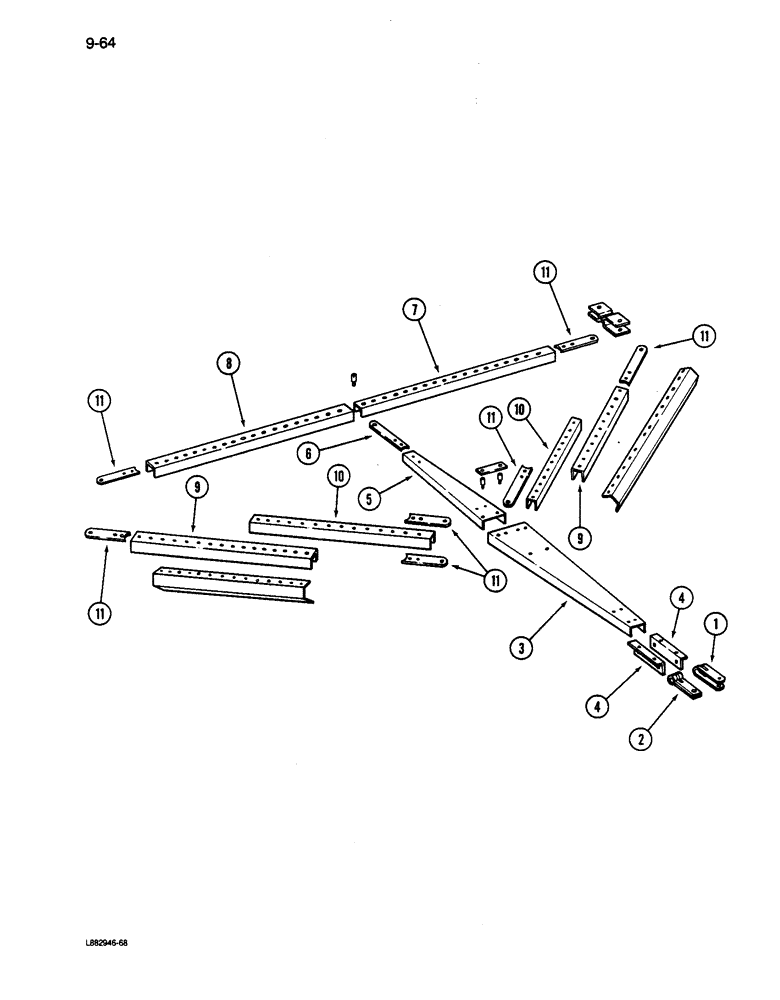

Запчасти Case IH 6200 (9-064) - HITCH TWO DRILL, HITCH THREE DRILL, HITCH LIGHT DUTY 14 X 6 (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
601910R3
CLEVIS
- hitch
1шт.
2
601909R1
CLEVIS
- hitch (Use with crawler tractor)
1шт.
608605R1
BOLT,Hex, 1" - 8 x 4 1/2", Drilled
- hex, 1 NC x 4-1/2 inch
1шт.
23049R1
WASHER
- flat, 1-1/32 x 2-1/2 x 3/32 inch
2шт.
9849633
NUT,1"-8, G5
1шт.
3
816336C2
CHANNEL
- hitch front
1шт.
4
816354C1
ANGLE
BRACE - hitch clevis angle
2шт.
113-424
BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd
4шт.
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
4шт.
129-105
NUT,Hex, 1/2" - 13, Gr 5
4шт.
5
816357C1
CHANNEL
- hitch rear (Two drill)
1шт.
5
816356C2
CHANNEL
- hitch rear (Three drill)
1шт.
88691
BOLT,Hex, 3/4" - 10 x 1 1/4", Gr 5, Full Thd
Hex, 3/4"-10 x 1-1/4", G5
2шт.
192-27
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
2шт.
6
816358C1
BAR
BRACE - hitch
1шт.
113-709
BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5
2шт.
192-27
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
2шт.
7
816359C1
CHANNEL
- hitch (Two drill)
1шт.
7
816359C1
CHANNEL
- hitch (Three drill)
4шт.
8
816360C1
CHANNEL
- hitch (Two drill)
1шт.
8
816360C1
CHANNEL
- hitch (Three drill)
4шт.
9
816363C1
CHANNEL
- hitch (Two drill)
2шт.
10
816364C1
CHANNEL
- hitch (Two drill)
2шт.
88691
BOLT,Hex, 3/4" - 10 x 1 1/4", Gr 5, Full Thd
Hex, 3/4"-10 x 1-1/4", G5
1шт.
192-27
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
1шт.
11
816358C1
BAR
BRACE - hitch (Two drill)
8шт.
11
816358C1
BAR
BRACE - hitch (Three drill)
10шт.
113-709
BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5
(Two drill) Hex, 3/4"-10 x 1 1/2", G5
8шт.
113-709
BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5
(Three drill) Hex, 3/4"-10 x 1 1/2", G5
12шт.
413-1232
BOLT,Hex, 3/4" - 10 x 2", Gr 5
- hex, 3/4 NC 2 inch
4шт.
192-27
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
1шт.
132-56
COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"
Pin, Split (Cotter), 1/8" x 2"
1шт.
Выбрано товаров: 36
