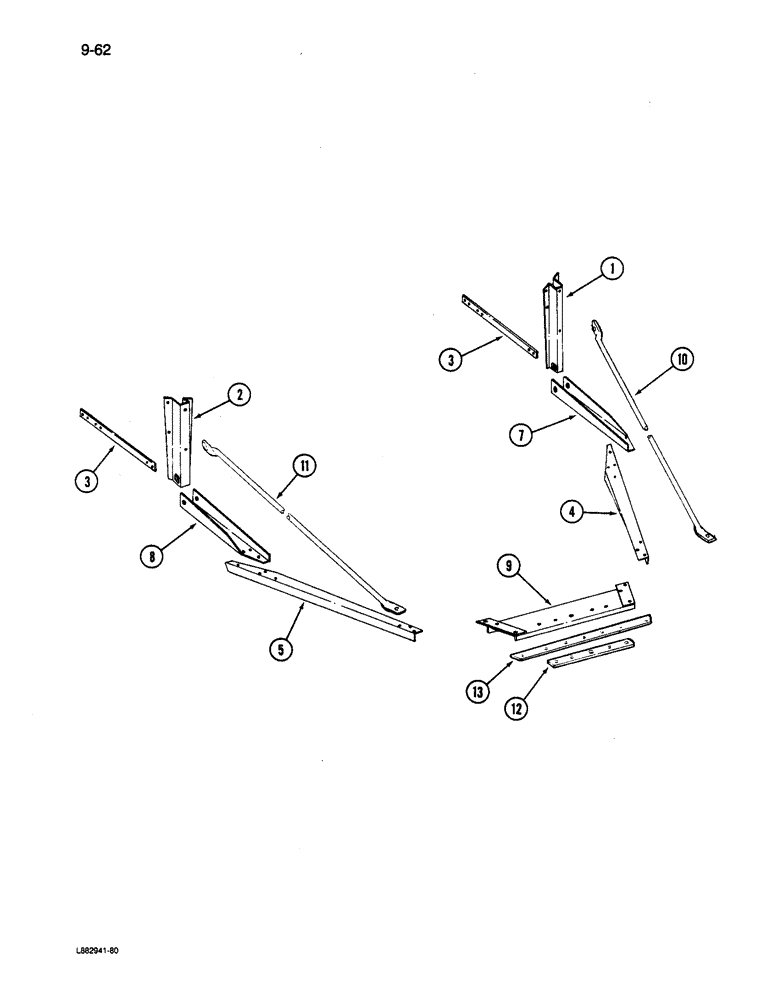

Запчасти Case IH 6200 (9-062) - HITCH LIGHT DUTY, BASIC TRACTOR MULTIPLE HOOK UP, 14 X 6 (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
815980C2
SUPPORT
- hitch left
1шт.
2
815981C2
SUPPORT
- hitch right
1шт.
113-424
BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd
8шт.
487374R1
BEARING LOCK NUT,Flg, USR, 1/2"-13
- hex, flange lock, 1/2 inch
8шт.
3
815989C1
BAR
BRACE - side support
2шт.
113-410
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
8шт.
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
8шт.
20601R1
WASHER
- flat, 17/32 x 1-1/4 x 3/32 inch
4шт.
129-105
NUT,Hex, 1/2" - 13, Gr 5
8шт.
4
815996C2
ANGLE
- hitch side left
1шт.
5
815997C2
ANGLE
- hitch side right
1шт.
7
816561C2
CHANNEL
- hitch rear left
1шт.
8
816562C2
CHANNEL
- hitch rear right
1шт.
113-606
BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd
8шт.
174763C1
FLANGE NUT,Flg, USR, 5/8"-12
- flange lock, 5/8 inch NC
8шт.
642292R1
HEADED PIN,7/8" x 4"
PIN - headed, 7/8 x 4 inch
2шт.
520175R1
CLIP
PIN - hair
2шт.
9
819035C2
SUPPORT
- hitch cross
1шт.
113-417
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd
2шт.
113-607
BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd
4шт.
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
129-105
NUT,Hex, 1/2" - 13, Gr 5
2шт.
174763C1
FLANGE NUT,Flg, USR, 5/8"-12
- flange lock, 5/8 inch NC
4шт.
10
816371C3
BRACE
- hitch left, 45-1/2 inch (Order two 1279789C1)
1шт.
10
1279789C1
BRACE
- hitch left and right, 47 inches
2шт.
11
816372C3
BRACE
- hitch right, 45-1/2 inch (Order two 1279789C1)
1шт.
113-602
BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd
1шт.
174763C1
FLANGE NUT,Flg, USR, 5/8"-12
- flange lock, 5/8 inch NC
1шт.
12
816726C1
BAR
BRACE - hitch support reinforcing
1шт.
13
816727C1
BAR
BRACE - hitch support reinforcing
1шт.
113-421
BOLT,Hex, 1/2" - 13 x 2", Gr 5
(2 drill) Hex, 1/2"-13 x 2", G5
8шт.
113-421
BOLT,Hex, 1/2" - 13 x 2", Gr 5
(3 drill) Hex, 1/2"-13 x 2", G5
6шт.
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
1шт.
129-105
NUT,Hex, 1/2" - 13, Gr 5
1шт.
Выбрано товаров: 34
