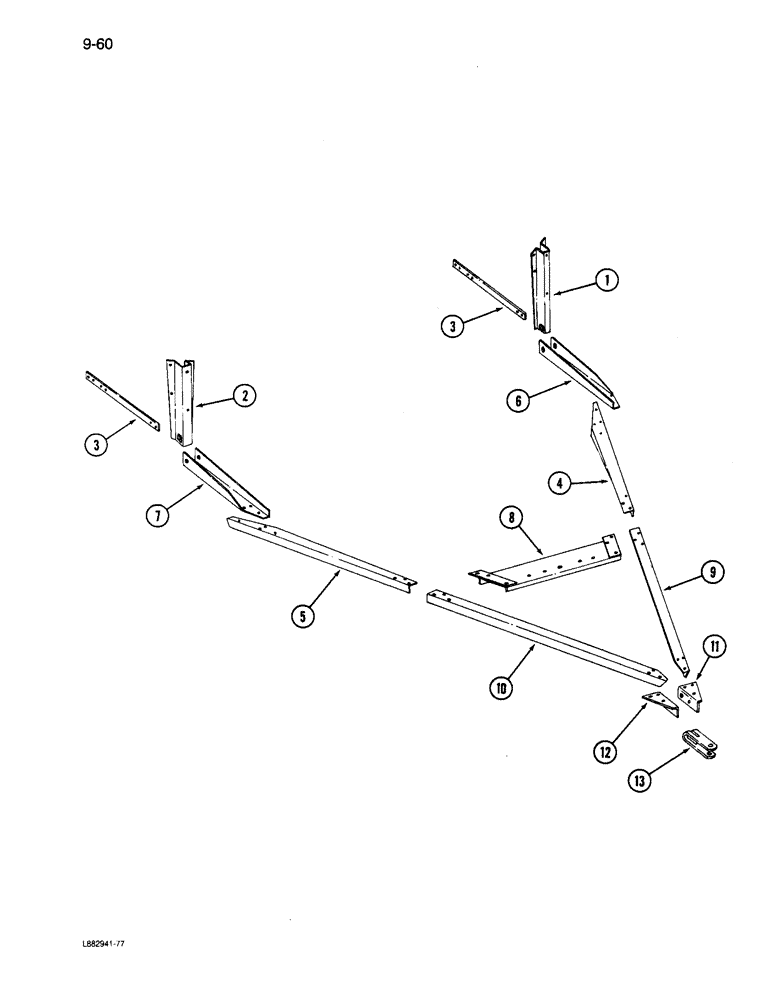

Запчасти Case IH 6200 (9-060) - HITCH LIGHT DUTY SINGLE DRILL, 14 X 6 (09) - CHASSIS/ATTACHMENTS

1

815980C2

SUPPORT

- hitch left

1шт.

2

815981C2

SUPPORT

- hitch right

1шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

8шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- hex, flange lock, 1/2 inch

8шт.

3

815989C1

BAR

BRACE - side support

2шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

20601R1

WASHER

- flat, 17/32 1-1/4 x 3/32 inch

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

4

815996C2

ANGLE

- hitch side left

1шт.

5

815997C2

ANGLE

- hitch side right

1шт.

6

816561C2

CHANNEL

- hitch rear left

1шт.

7

816562C2

CHANNEL

- hitch rear right

1шт.

113-606

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

8шт.

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

- flange lock, 5/8 inch NC

8шт.

642292R1

HEADED PIN,7/8" x 4"

PIN - headed, 7/8 x 4 inch

2шт.

520175R1

CLIP

PIN - hair

2шт.

8

819035C2

SUPPORT

- hitch cross

2шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

- flange lock, 5/8 inch NC

4шт.

9

816352C2

ANGLE

- hitch front left

1шт.

10

816353C2

ANGLE

- hitch front right

1шт.

11

816563C1

ANGLE

- hitch clevis left

1шт.

12

816564C1

ANGLE

- hitch clevis right

1шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

7шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

7шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

7шт.

13

601910R3

CLEVIS

- hitch

1шт.

608605R1

BOLT,Hex, 1" - 8 x 4 1/2", Drilled

- hex, 1 NC x 4-1/2 inch

1шт.

23049R1

WASHER

- flat, 1-1/32 x 2-1/2 x 3/32

2шт.

9849633

NUT,1"-8, G5

1шт.

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

1шт.
