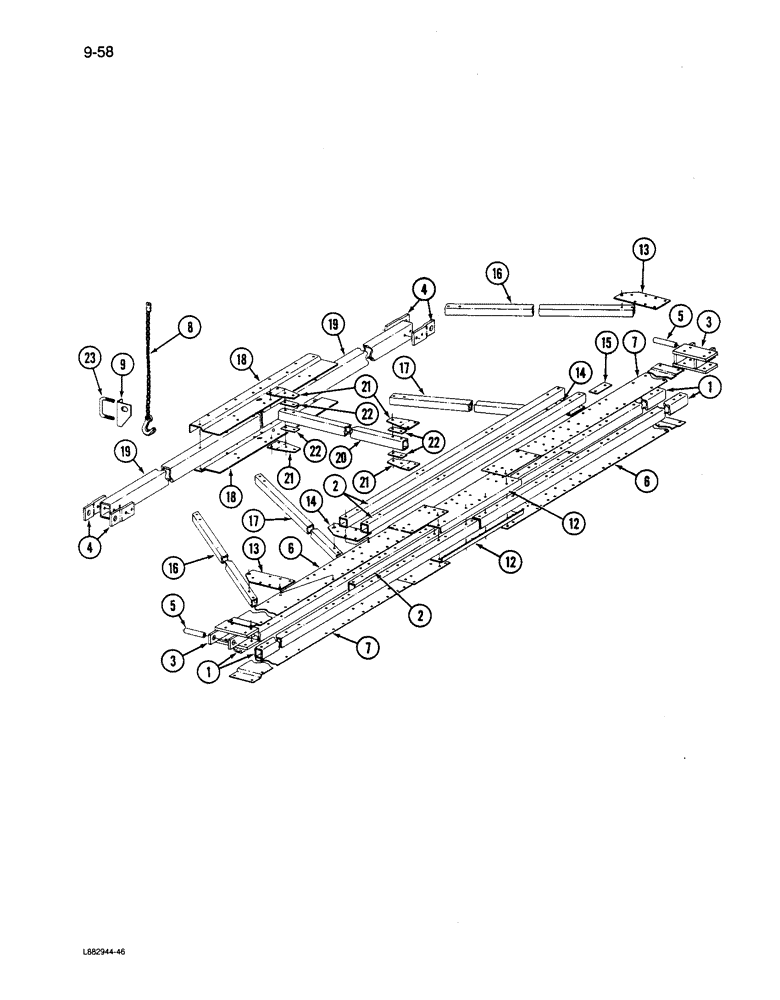

Запчасти Case IH 6200 (9-058) - CENTER HITCH AND STABILIZER FOUR DRILL, 24 X 6, 28 X 6, 20 X 7, 24 X 7, SERIAL NUMBER 501 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

819874C2

TUBE

BRACE - hitch main frame front

4шт.

2

818118C2

TUBE,2021 mm Length

BRACE - center reinforcing

3шт.

90811C1

BAR

- spacer, center of front brace

1шт.

3

819889C1

PIVOT

- wing front

2шт.

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

113-643

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

4шт.

464623R1

WASHER

- flat, 21/32 x 1-1/2 x 3/32 inch

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

8шт.

4

841130C1

BAR

- frame connecting

4шт.

113-643

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

4шт.

5

1279421C1

SPACER

- hitch pivot

2шт.

21400R1

BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 5

- hex, 3/4 NC x 7-1/2 inch

2шт.

467750R1

WASHER

- flat, 25/32 x 1-1/2 x 3/32 inch

4шт.

280954

NUT,3/4"-10, G5

2шт.

6

841078C2

SUPPORT

- front tube right top and left lower

2шт.

7

841077C2

TUBE

SUPPORT - front tube right lower and left top

2шт.

8

819901C2

CHAIN (AG)

CHAIN - frame support

2шт.

24875R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

2шт.

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

- flange lock, 5/8 inch NC

2шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 3/32 inch

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

20803R1

WASHER

- flat, 13/32 x 1 x 7/64 inch

2шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

9

841153C1

ANGLE

- frame support chain

2шт.

12

819879C2

SUPPORT

- front extension

2шт.

113-654

BOLT,Hex, 5/8" - 11 x 7", Gr 5

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

8шт.

13

819876C2

BAR

- diagonal brace tube outer

4шт.

14

841082C1

BAR

- diagonal brace tube inner

4шт.

15

843179C1

BAR

- center reinforcing tube spacer (12-1/2 foot drills)

2шт.

16

819882C2

TUBE,2171.7 mm Length

- diagonal brace outer

2шт.

17

819883C1

TUBE,101.5" Length

- diagonal brace inner

2шт.

18

841137C1

SUPPORT

- rear extension

2шт.

19

841133C1

TUBE,2742 mm Length

- hitch main frame rear

2шт.

113-643

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

6шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

6шт.

20

841132C1

TUBE

BRACE - hitch center connecting

1шт.

21

841134C1

BAR

- tube mounting

4шт.

22

841142C1

BAR

- tube mounting spacer

11шт.

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

10шт.

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

24шт.

113-654

BOLT,Hex, 5/8" - 11 x 7", Gr 5

8шт.

464623R1

WASHER

- flat, 21/32 x 1-1/2 x 3/32 inch

12шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

1шт.

23

812659C1

BOLT,5/8" - 11 x 4.4"

U-BOLT - support chain angle

2шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

4шт.
