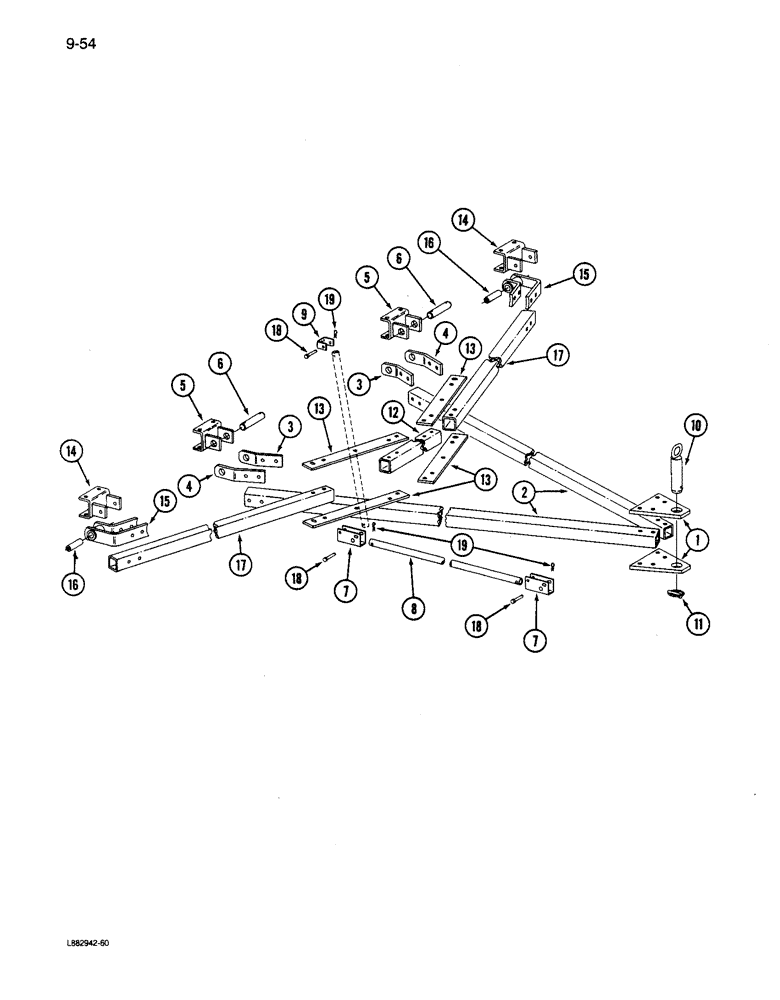

Запчасти Case IH 6200 (9-054) - FRONT HITCH FOUR DRILL, 24 X 6, 28 X 6, 20 X 7, 24 X 7, HITCH SERIAL NUMBER 501 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

819892C1

PLATE

- hitch

2шт.

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

3шт.

113-647

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- hex, 5/8 NC x 5 inch

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

4шт.

2

819684C1

TUBE,2245 mm Length

FRAME - hitch

2шт.

3

819894C1

SUPPORT

- hitch tube inner

2шт.

4

819895C1

SUPPORT

- hitch tube outer

2шт.

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

4шт.

5

819770C1

PIVOT

- hitch tube

2шт.

113-654

BOLT,Hex, 5/8" - 11 x 7", Gr 5

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

4шт.

6

819724C1

PIN

- wing rear pivot

2шт.

195-2120

WASHER,1.28" ID x 2" OD x 0.24" Thk

- flat, 1-9/32 x 2 x 7/32 inch

6шт.

132-352

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

4шт.

7

819018C2

CHANNEL

- transport tube support

2шт.

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

1шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

1шт.

8

1279802C1

SUPPORT TUBE,26.7 mm OD, 2130 mm Length

SUPPORT - hitch transport

1шт.

9

819010C1

YOKE

- tube support

1шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

1шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

10

817771C1

PIN

- hitch

1шт.

11

621006C1

PIN

- lock

1шт.

12

1279392C1

TUBE,1074 mm Length

- hitch tie

1шт.

13

1279390C1

STRAP

- hitch tie tube

4шт.

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

10шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

10шт.

14

1279640C1

PIVOT

- hitch bracket

2шт.

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

4шт.

15

1279647C1

BRACKET

- brace pivot

2шт.

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- he, 5/8 inch NC

4шт.

16

1279643C1

BUSHING

- pivot

2шт.

113-650

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

2шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

2шт.

17

1279416C1

TUBE,1720.5 mm Length

BRACE - hitch

2шт.

18

23948R1

HEADED PIN,3/8" x 3 1/4"

PIN, HEADED, 3/8" x 3 1/4"

3шт.

19

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN - hair

3шт.
