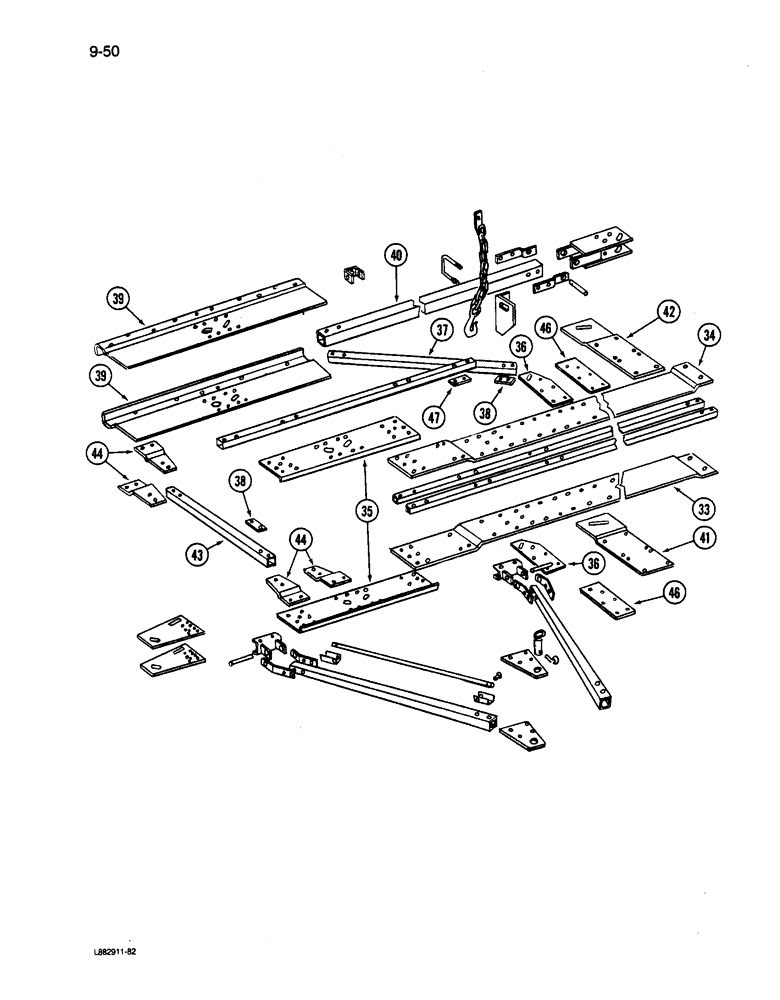

Запчасти Case IH 6200 (9-050) - HITCH HEAVY DUTY FOUR DRILL, 20 X 6, 16 X 8, 16 X 6 (09) - CHASSIS/ATTACHMENTS

33

841168C1

SUPPORT

- front tube right top and left lower

2шт.

34

841169C1

SUPPORT

- front tube right lower and left top

2шт.

35

819879C2

SUPPORT

- front extension

2шт.

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

8шт.

36

841111C1

BAR

- diagonal brace tube (20x6, 16x8)

4шт.

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

4шт.

37

841200C1

TUBE

BRACE - diagonal

2шт.

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

4шт.

464623R1

WASHER

- flat, 21/32 x 1-1/2 x 3/32 inch

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

8шт.

38

841142C1

BAR

- tube mounting spacer

6шт.

39

841137C1

SUPPORT

- rear extension

2шт.

40

841167C1

TUBE,2208.2 mm Length

BEAM - hitch main frame rear

2шт.

113-643

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

6шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

6шт.

41

841136C1

BAR

- basic hitch tie center drill (left lower and right top)

2шт.

42

841140C1

BAR

- basic hitch tie center drill (left top and right lower)

2шт.

113-647

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- hex, 5/8 NC x 5 inch

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

8шт.

43

841132C1

TUBE

BRACE - hitch center connecting

1шт.

44

841134C1

BAR

- tube mounting

4шт.

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

2шт.

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

(20x6, 16x8) Hex, 5/8"-11 x 4 1/2", G5

2шт.

113-647

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- hex, 5/8 NC x 5 inch (16x6)

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

1шт.

46

841108C1

BAR

- diagonal brace tube (16x6)

4шт.

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

8шт.

47

843179C1

BAR

- center reinforcing tube spacer (16x6)

2шт.
