Запчасти Case IH 6200 (9-048) - HITCH HEAVY DUTY FOUR DRILL, 20 X 6, 16 X 8, 16 X 6 (09) - CHASSIS/ATTACHMENTS

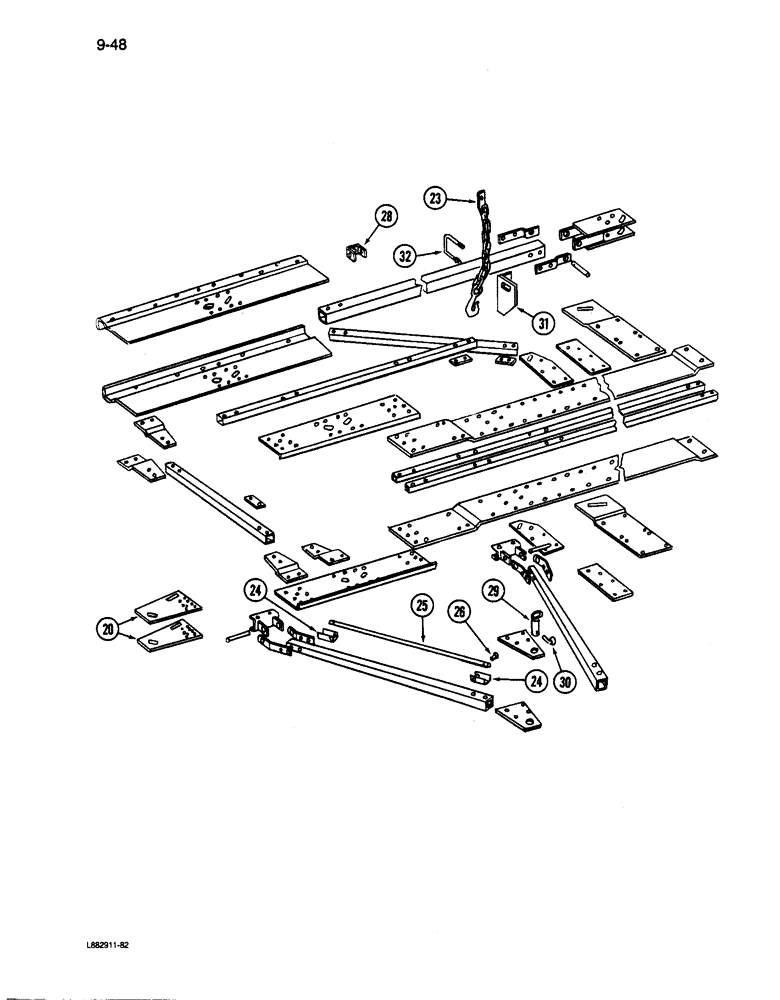

Схема запчастей Case IH 6200 - (9-048) - HITCH HEAVY DUTY FOUR DRILL, 20 X 6, 16 X 8, 16 X 6 (09) - CHASSIS/ATTACHMENTS
20
32
30
23
31
25
24
28
29
26
24

Артикул

Название

Примечание

Количество

20

819772C2

PLATE

- basic hitch tie wing right

2шт.

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

8шт.

819258C1

BOLT,Hex, 7/8" - 9 x 5", Drilled

- hex, 7/8 NC x 5 inch

4шт.

26070R1

WASHER,15/16" x 1 3/4" x .179", HDN

- hardened flat, 15/16 x 1-3/4 x 3/16 inch

12шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

427643

SLOTTED NUT,7/8"-9, G5

NUT - hex slotted, 7/8 inch NC

8шт.

23

819901C2

CHAIN (AG)

CHAIN - frame support

2шт.

24875R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

2шт.

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

20803R1

WASHER

- flat, 17/32 x 1 x 3/32 inch

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 3/32 inch

2шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

- flange lock, 5/8 inch NC

2шт.

24

819018C2

CHANNEL

- transport tube support

2шт.

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

1шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

1шт.

25

819022C1

TUBE

- hitch transport support

1шт.

26

23948R1

HEADED PIN,3/8" x 3 1/4"

PIN, HEADED, 3/8" x 3 1/4"

3шт.

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN - hair

3шт.

28

819010C1

YOKE

- tube support

1шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

1шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

29

817771C1

PIN

- hitch

1шт.

30

621006C1

PIN

- lock

1шт.

31

841153C1

ANGLE

- frame support chain

2шт.

32

812659C1

BOLT,5/8" - 11 x 4.4"

U-BOLT - support chain angle

2шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

4шт.

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

4шт.

Выбрано товаров: 35
