Запчасти Case IH 6200 (9-046) - HITCH HEAVY DUTY FOUR DRILL, 20 X 6, 16 X 8, 16 X 6 (09) - CHASSIS/ATTACHMENTS

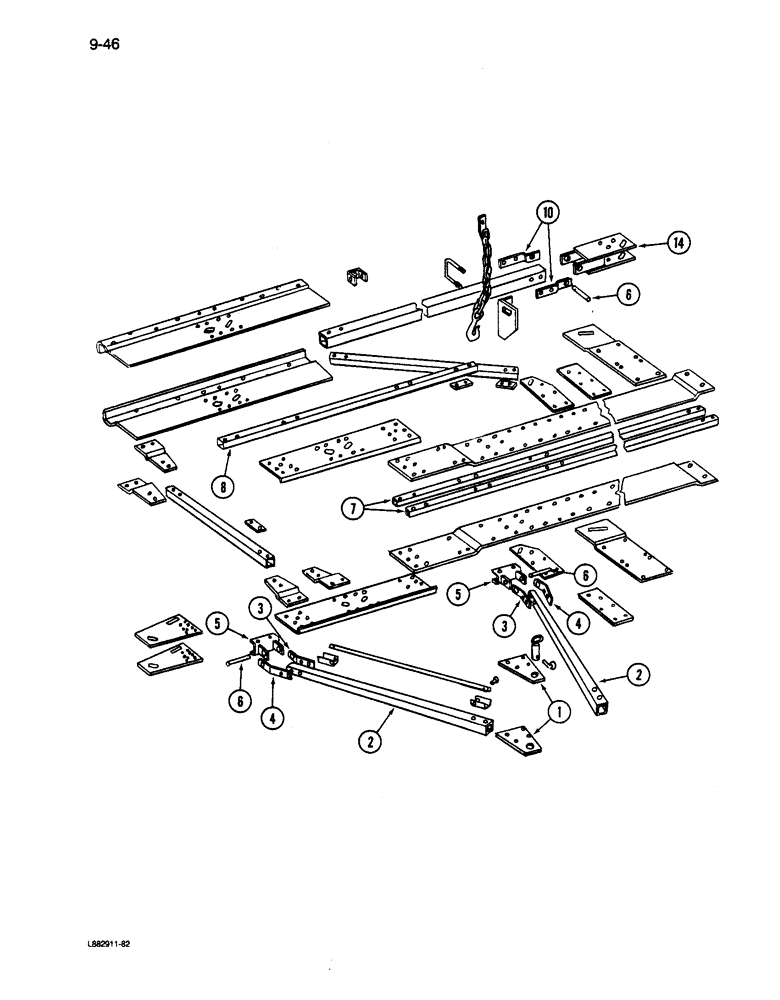

Схема запчастей Case IH 6200 - (9-046) - HITCH HEAVY DUTY FOUR DRILL, 20 X 6, 16 X 8, 16 X 6 (09) - CHASSIS/ATTACHMENTS
4
2
6
1
8
5
3
3
6
10
6
14
7
2
5
4

Артикул

Название

Примечание

Количество

1

819892C1

PLATE

- hitch

2шт.

2

819684C1

TUBE,2245 mm Length

FRAME - hitch

2шт.

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

3шт.

113-647

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- hex, 5/8 NC x 5 inch

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, inch NC

4шт.

3

819894C1

SUPPORT

- hitch tube inner

2шт.

4

819895C1

SUPPORT

- hitch tube outer

2шт.

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

4шт.

5

819770C1

PIVOT

- hitch tube

2шт.

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

4шт.

6

81974C1

SPLIT PIN

PIN - pivot

4шт.

195-2120

WASHER,1.28" ID x 2" OD x 0.24" Thk

- flat, 1-9/32 x 2 x 7/32 inch

6шт.

132-352

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

8шт.

7

819683C1

TUBE,2245 mm Length

SUPPORT - hitch main frame front

4шт.

8

818118C2

TUBE,2021 mm Length

BRACE - center reinforcing

1шт.

113-654

BOLT,Hex, 5/8" - 11 x 7", Gr 5

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

8шт.

10

841130C1

BAR

- frame connecting

4шт.

113-643

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

4шт.

14

819656C2

SUPPORT

- wing rear

2шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

8шт.

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

4шт.

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 3/32 inch

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

12шт.

Выбрано товаров: 27
