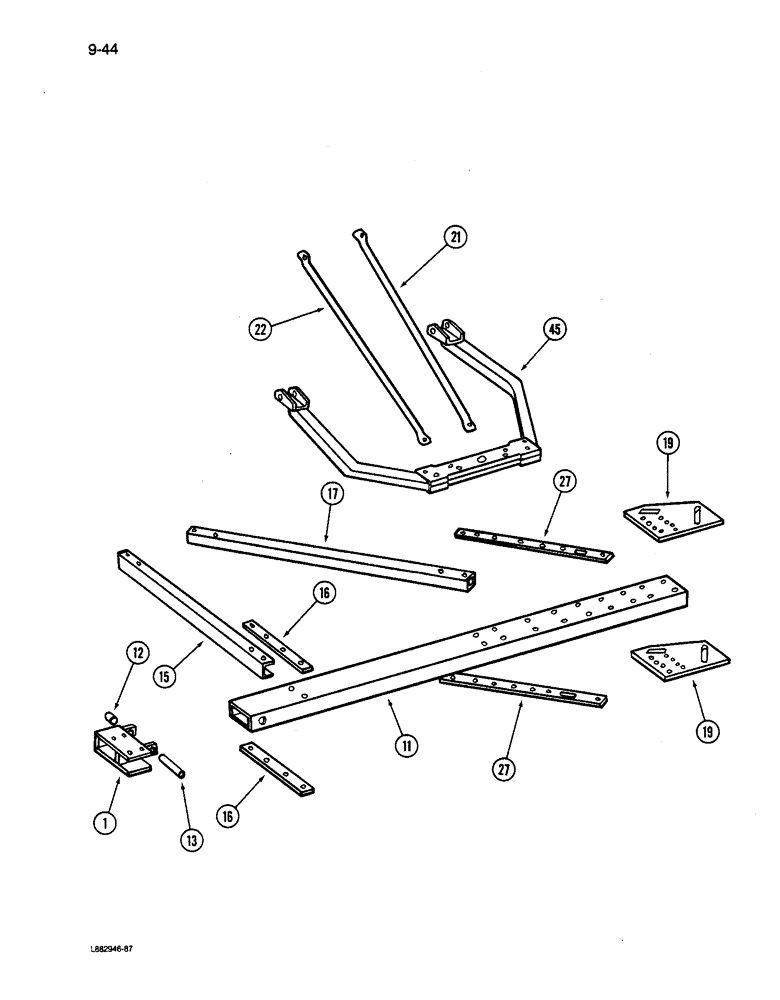

Запчасти Case IH 6200 (9-044) - HITCH HEAVY DUTY FOUR DRILL, 20 X 6, 16 X 8, 16 X 6 (09) - CHASSIS/ATTACHMENTS

9

819889C1

PIVOT

- outer drill frame

2шт.

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

113-643

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

4шт.

464623R1

WASHER

- flat, 21/32 x 1-1/2 x 3/32 inch

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

8шт.

11

819800C3

TUBE

- wing front (Order 1279432C1 and 1279421C1)

2шт.

21400R1

BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 5

- hex, 3/4 NC x 7-1/2 inch

2шт.

467750R1

WASHER

- flat, 25/32 x 1-1/2 x 3/32 inch

4шт.

280954

NUT,3/4"-10, G5

2шт.

12

819782C1

SPACER

- pivot

2шт.

13

819781C1

SPACER

- pivot

2шт.

15

819662C1

CHANNEL

- wing side

2шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

8шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

16

819664C1

BAR

- side channel connecting

4шт.

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

17

819798C3

TUBE

- wing diagonal

2шт.

19

817354C1

BAR

PLATE - basic hitch tie wing left

2шт.

21

818383C2

BRACE

SUPPORT - hitch left

4шт.

22

818384C2

BRACE

SUPPORT - hitch right

4шт.

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

8шт.

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

8шт.

21905R1

WASHER

- flat, 21/32 x 1-3?4 x 7/32 inch

16шт.

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

- flange lock, 5/8 inch NC

16шт.

27

819799C3

BAR

- diagonal tube tie (Order two 1279411C1)

4шт.

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

8шт.

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 3/32 inch

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

45

REF

INSTRUCTION

HITCH - basic (See Page 9-7)

1шт.
