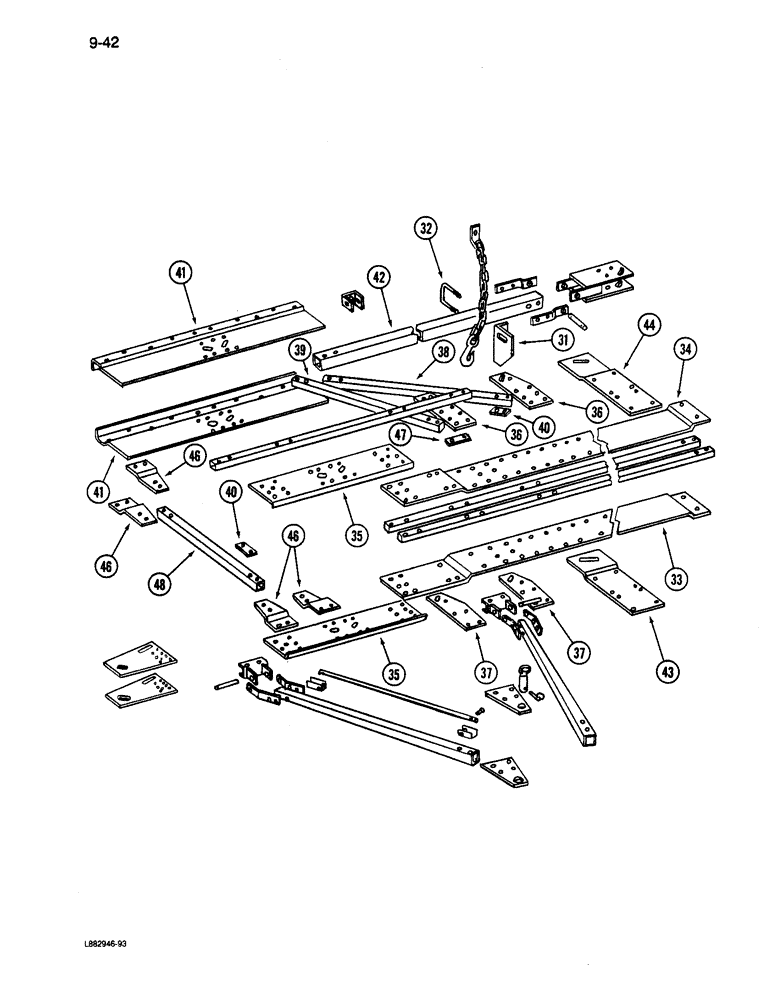

Запчасти Case IH 6200 (9-042) - HITCH HEAVY DUTY FOUR DRILL, 24 X 6, 20 X 7, 28 X 6, 24 X 7 (09) - CHASSIS/ATTACHMENTS

31

841153C1

ANGLE

- frame support chain

2шт.

32

812659C1

BOLT,5/8" - 11 x 4.4"

U-BOLT - support chain angle

2шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

4шт.

33

841077C2

TUBE

SUPPORT - front tube right top and left lower

2шт.

34

841078C2

SUPPORT

- front tube right lower and left top

2шт.

35

819879C2

SUPPORT

- front extension

2шт.

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

8шт.

36

819876C2

BAR

- diagonal brace tube outer (8 holes)

4шт.

37

841082C1

BAR

- diagonal brace tube inner (6 holes)

4шт.

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

(20x7, 24x6) Hex, 5/8"-11 x 4 1/2", G5

8шт.

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

(24x7, 28x6) Hex, 5/8"-11 x 4 1/2", G5

12шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

1шт.

38

819882C2

TUBE,2171.7 mm Length

- diagonal brace outer

2шт.

39

819883C1

TUBE,101.5" Length

- diagonal brace inner

2шт.

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

8шт.

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

8шт.

464623R1

WASHER

- flat, 21/32 x 1-1/2 x 3/32 inch

12шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

16шт.

40

841142C1

BAR

- tube mounting spacer

10шт.

41

841137C1

SUPPORT

- rear extension

2шт.

42

841133C1

TUBE,2742 mm Length

- hitch main frame rear

2шт.

113-643

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

6шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

6шт.

43

841136C1

BAR

- basic hitch tie center drill (left lower and right top)

2шт.

44

841140C1

BAR

- basic hitch tie center drill (left top and right lower)

2шт.

113-647

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- hex, 5/8 NC x 5 inch

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

8шт.

46

841134C1

BAR

- tube mounting

4шт.

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

2шт.

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

(24x7, 28x6) Hex, 5/8"-11 x 4 1/2", G5

6шт.

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

(24x6, 20x7) Hex, 5/8"-11 x 4 1/2", G5

4шт.

113-647

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- hex, 5/8 NC x 5 inch (24x6, 20x7)

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

1шт.

47

843179C1

BAR

- center reinforcing tube spacer (24x6, 20x7)

2шт.

48

841132C2

TUBE - hitch center connecting

1шт.
