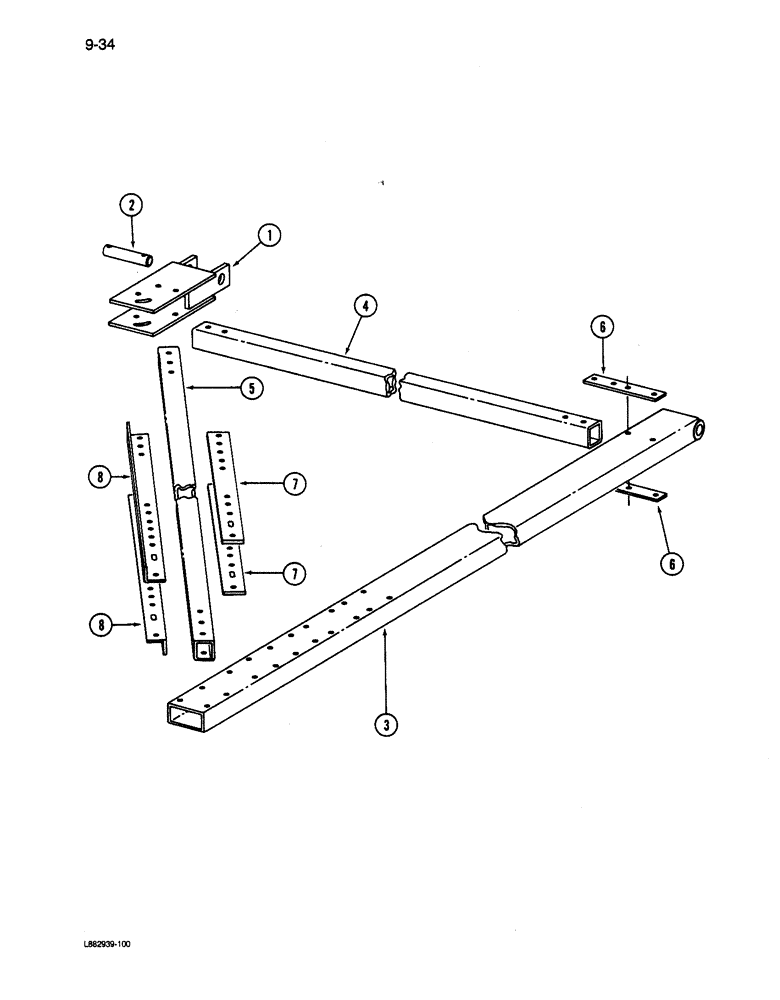

Запчасти Case IH 6200 (9-034) - WING HITCH, THREE AND FOUR DRILL, HITCH SERIAL NUMBER 501 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

819656C2

SUPPORT

- wing rear

2шт.

2

819724C1

PIN

- wing rear pivot

2шт.

132-352

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

4шт.

3

1279423C1

TUBE,2474.6 mm Length

BEAM - wing (16x6, 20x6)

2шт.

3

1279424C1

TUBE

BEAM - wing (24x6, 28x6, 20x7, 24x7)

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

4шт.

4

819662C1

CHANNEL

- wing side (Three drill)

2шт.

4

1279426C1

TUBE,1887.73 mm Length

CHANNEL - wing side (Four drill)

2шт.

5

819798C3

TUBE

- wing diagonal (20x6, 16x6)

2шт.

5

819661C2

TUBE,101.5" Length

- wing diagonal (24x6, 28x6, 20x7, 24x7)

2шт.

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

4шт.

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 3/32 inch

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

6

819664C1

BAR

- side channel connecting

4шт.

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

4шт.

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

(16x6, 20x6, 4 drill) Hex, 1/2"-13 x 3 1/2", G5

8шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

(3 drill) Hex, 1/2"-13 x 1", G5, Full Thd

8шт.

113-450

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

- hex, 1/2 NC x 3-3/4 inch (24x6, 28x6, 20x7, 24x7, four drill)

4шт.

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

7

1279411C1

BAR

BRACE - diagonal tube tie (16x6, 20x6)

4шт.

8

1279410C1

ANGLE

- diagonal tube tie (24x6, 28x6, 20x7, 24x7)

4шт.

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

8шт.

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 3/32 inch

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.
