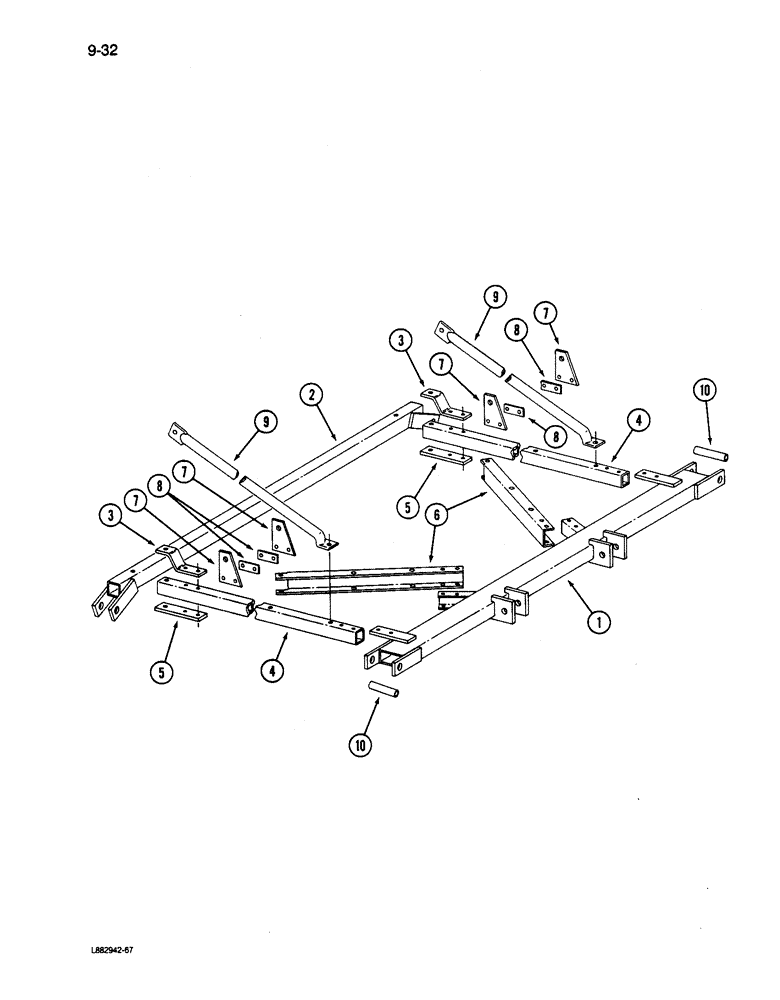

Запчасти Case IH 6200 (9-032) - CENTER HITCH AND STABILIZER, THREE DRILL, HITCH SERIAL NUMBER 501 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

819636C1

BEAM

- center front

1шт.

2

819783C1

BEAM

- center rear

1шт.

3

819792C1

SUPPORT

- side tube

2шт.

4

819637C4

TUBE,1872, 31.75 mm Length

- center side

2шт.

5

819793C1

BAR

- center side tube reinforcing lower

2шт.

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

8шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

113-650

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

2шт.

6

819640C3

CHANNEL

- front corner

2шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

8шт.

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

10шт.

7

819641C1

BAR

- basic hitch support anchor

4шт.

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

8

819778C1

BAR

SPACER - anchor bar

4шт.

9

1279789C1

BRACE

- hitch left and right

2шт.

10

1279421C1

SPACER

- hitch pivot

2шт.

21400R1

BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 5

- hex, 3/4 NC x 7-1/2 inch

2шт.

467750R1

WASHER

- flat, 25/32 x 1-1/2 x 3/32 inch

4шт.

280954

NUT,3/4"-10, G5

2шт.
