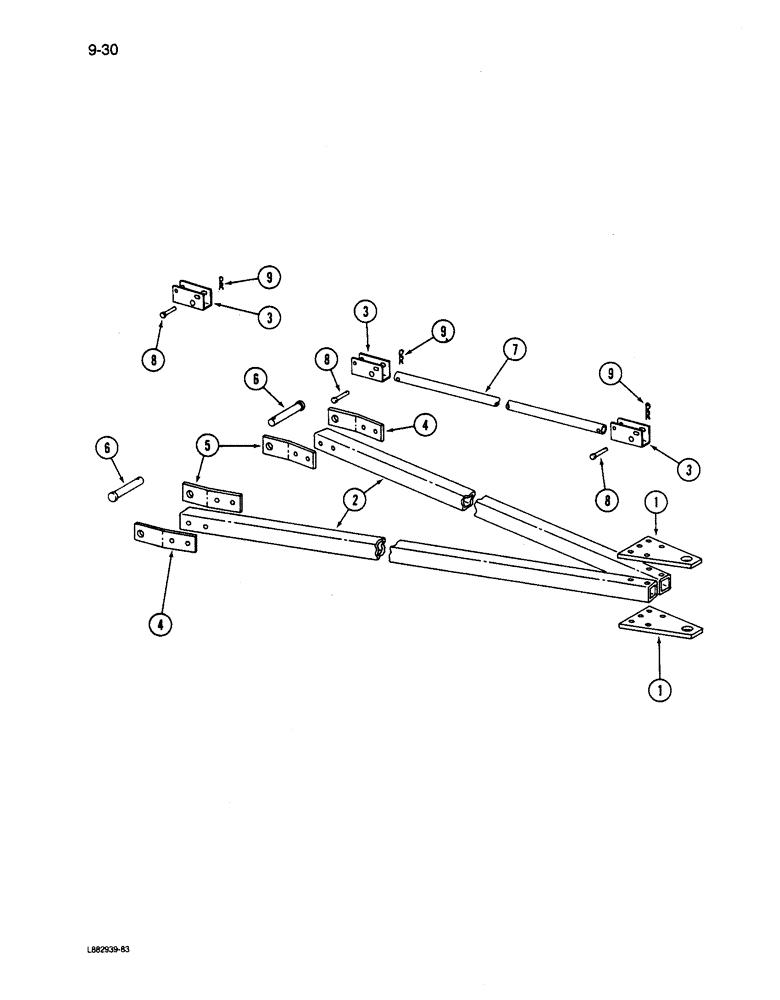

Запчасти Case IH 6200 (9-030) - FRONT HITCH, THREE DRILL, HITCH SERIAL NUMBER 501 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

819001C1

PLATE

- hitch front

2шт.

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

4шт.

2

819013C2

TUBE,56.55" Length

- hitch front

2шт.

3

819018C2

CHANNEL

- transport tube support

3шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 3/32 inch

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

4

819644C1

SUPPORT

- front hitch tube outer

2шт.

5

819643C1

SUPPORT

- front hitch tube inner

2шт.

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

4шт.

6

636167R1

HEADED PIN,1" x 5 5/8"

PIN - headed, 1 x 5-5/8 inch

2шт.

609836R1

WASHER

- flat, 1-1/32 x 1-3/4 x 3/64 inch

2шт.

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

2шт.

7

819668C1

TUBE

- hitch transport

1шт.

8

22752R1

SPLIT PIN/SAFETY PIN

PIN - headed, 3/8 x 2-1/4 inch

2шт.

9

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN - hair

2шт.
