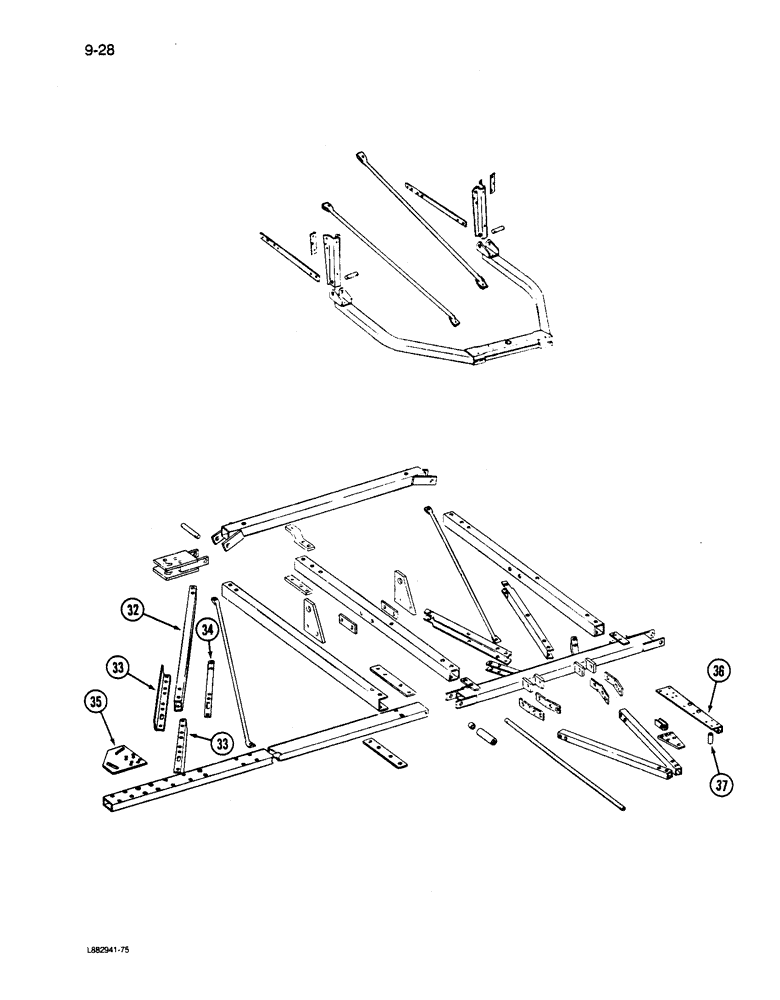

Запчасти Case IH 6200 (9-028) - HITCH, THREE DRILL HEAVY DUTY, 16 X 6, 20 X 6, 24 X 6, 28 X 6, 20 X 7, 24 X 7, 16 X 8 (09) - CHASSIS/ATTACHMENTS

32

819661C2

TUBE,101.5" Length

- wing diagonal (24x6, 28x6, 20x7, 24x7)

2шт.

32

819798C3

TUBE

- wing diagonal (20x6, 16x8, 16x6)

2шт.

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

4шт.

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 3/32 inch

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

33

819663C1

ANGLE

- diagonal tube tie (Order two 1279410C1) (24x6, 28x6, 20x7, 24x7)

4шт.

34

819799C3

BAR

- diagonal tube tie (Order two 1279411C1) (20x6, 16x8, and 16x6)

4шт.

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

8шт.

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 3/32 inch

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

35

819665C2

BAR

- basic hitch tie

4шт.

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

8шт.

819258C1

BOLT,Hex, 7/8" - 9 x 5", Drilled

- hex, 7/8 NC x 5 inch

2шт.

495-11094

WASHER,7/8", SAE

- flat, 15/16 x 1-3/4 x 3/32 inch

6шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

427643

SLOTTED NUT,7/8"-9, G5

NUT - hex slotted, 7/8 inch NC

2шт.

36

817757C1

EXTENSION

- hitch (Use with track eraser)

2шт.

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

4шт.

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

6шт.

113-643

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

3шт.

826199C1

BOLT,Adj, Hex, 5/8" - 11 x 6.50"

- hex, 5/8 NC x 6-1/2 inch

1шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

14шт.

464623R1

WASHER

- flat, 21/32 x 1-1/2 x 3/32 inch

8шт.

21793R1

WASHER

- flat, 21/32 x 1-1/2 x 5/32 inch

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

14шт.

37

817758C1

SPACER

- extension

2шт.

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

2шт.
