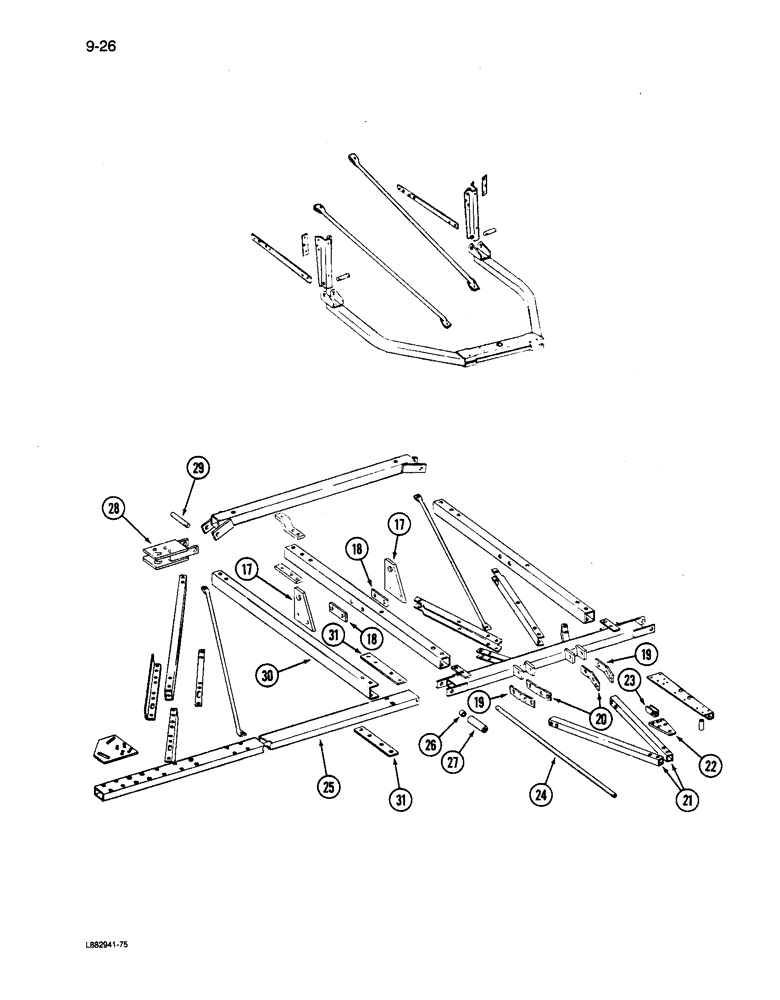

Запчасти Case IH 6200 (9-026) - HITCH, THREE DRILL HEAVY DUTY, 16 X 6, 20 X 6, 24 X 6, 28 X 6, 20 X 7, 24 X 7, 16 X 8, CONTD (09) - CHASSIS/ATTACHMENTS

17

819641C1

BAR

- basic hitch support anchor

4шт.

18

819778C1

BAR

SPACER - anchor bar

4шт.

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

19

819644C1

SUPPORT

- front hitch tube outer

2шт.

20

819643C1

SUPPORT

- front hitch tube inner

2шт.

636167R1

HEADED PIN,1" x 5 5/8"

PIN - headed, 1 x 5-5/8 inch

2шт.

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

2шт.

609836R1

WASHER

- flat, 1-1/32 x 1-3/4 x 3/64 inch

2шт.

21

819013C2

TUBE,56.55" Length

- hitch front

2шт.

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

4шт.

22

819001C1

PLATE

- hitch front

2шт.

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

4шт.

23

819018C2

CHANNEL

- transport tube support front

3шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 3/32 inch

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

24

819668C1

TUBE

- hitch transport

1шт.

22752R1

SPLIT PIN/SAFETY PIN

PIN - headed, 3/8 x 2-1/4 inch

2шт.

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN - hair

2шт.

25

819660C2

TUBE

- wing front (24x6, 28x6, 20x7, 24x7)(Order 1279424C1 tube and 1279421C1 spacer)

2шт.

25

819800C3

TUBE

- wing front (20x6, 16x8, 16x6) (Order 1279423C1 tube and 1279421C1 spacer)

2шт.

21400R1

BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 5

- hex, 3/4 NC x 7-1/2 inch

2шт.

467750R1

WASHER

- flat, 25/32 x 1-1/2 x 3/32 inch

4шт.

280954

NUT,3/4"-10, G5

2шт.

26

819782C1

SPACER

- pivot

2шт.

27

819781C1

SPACER

- pivot

2шт.

28

819656C2

SUPPORT

- wing rear

2шт.

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

29

819724C1

PIN

- wing rear pivot

2шт.

132-352

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

4шт.

30

819662C1

CHANNEL

- wing side

2шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

8шт.

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

12шт.

31

819664C1

BAR

- side channel connecting

4шт.
