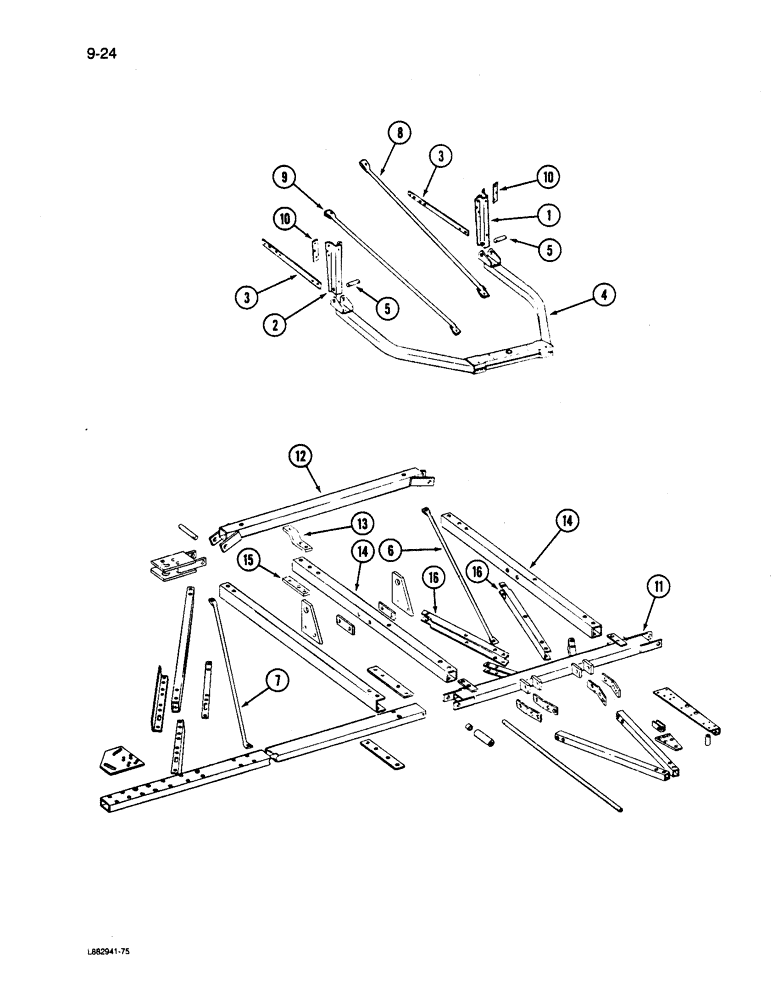

Запчасти Case IH 6200 (9-024) - HITCH, THREE DRILL HEAVY DUTY, 16 X 6, 20 X 6, 24 X 6, 28 X 6, 20 X 7, 24 X 7, 16 X 8 (09) - CHASSIS/ATTACHMENTS

1

815980C2

SUPPORT

- hitch left (16x6)

3шт.

1

815982C2

SUPPORT

- hitch left (20x6, 24x6, 28x6, 20x7, 24x7, 16x8)

1шт.

2

815981C2

SUPPORT

- hitch right (16x6)

3шт.

2

815983C2

SUPPORT

- hitch right (20x6, 24x6, 28x6, 20x7, 24x7, 16x8)

3шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

(16x6) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

24шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

(20x6, 24x6, 28x6, 20x7, 24x7, 16x8) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

36шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- hex, flange lock, 1/2 inch

1шт.

3

815990C1

BAR

BRACE - hitch support (16x6)

6шт.

3

815991C1

BAR

BRACE - hitch support (24x6, 28x6, 20x7 and 24x7)

6шт.

3

816456C1

BAR

BRACE - hitch support (20x6 and 16x8)

6шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

24шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

24шт.

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 3/32 inch

12шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

24шт.

4

818349C2

TRAILER HITCH

HITCH - basic (Use one each on left and right side)

2шт.

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 3/32 inch

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

5

818251C1

PIN

- hitch pivot channel

4шт.

520175R1

CLIP

PIN - hair

8шт.

6

1279789C1

BRACE

- hitch left and right, 47 inch (Replaces 816371C3 and 816372C3)

2шт.

6

816371C3

BRACE

- hitch left, 45-1/2 inch (Order two 1279789C1)

2шт.

7

816372C3

BRACE

- hitch right, 45-1/2 inch (Order two 1279789C1)

2шт.

8

818383C2

BRACE

SUPPORT - hitch left

2шт.

9

818384C2

BRACE

SUPPORT - hitch right

2шт.

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

2шт.

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

- flange lock, 5/8 inch NC

4шт.

10

819681C1

BAR

BRACE - hitch support upper reinforcement

4шт.

11

819636C1

BEAM

- center front

1шт.

12

819783C1

BEAM

- center rear

1шт.

13

819792C1

SUPPORT

- side tube

2шт.

14

819637C4

TUBE,1872, 31.75 mm Length

- center side

2шт.

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

8шт.

113-650

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

2шт.

15

819793C1

BAR

- center side tube reinforcing

2шт.

16

819640C3

CHANNEL

- front corner

2шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

8шт.

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

10шт.
