Запчасти Case IH 6200 (9-022) - CENTER HITCH AND STABILIZER, TWO DRILL, HITCH SERIAL NUMBER 501 AND AFTER (09) - CHASSIS/ATTACHMENTS

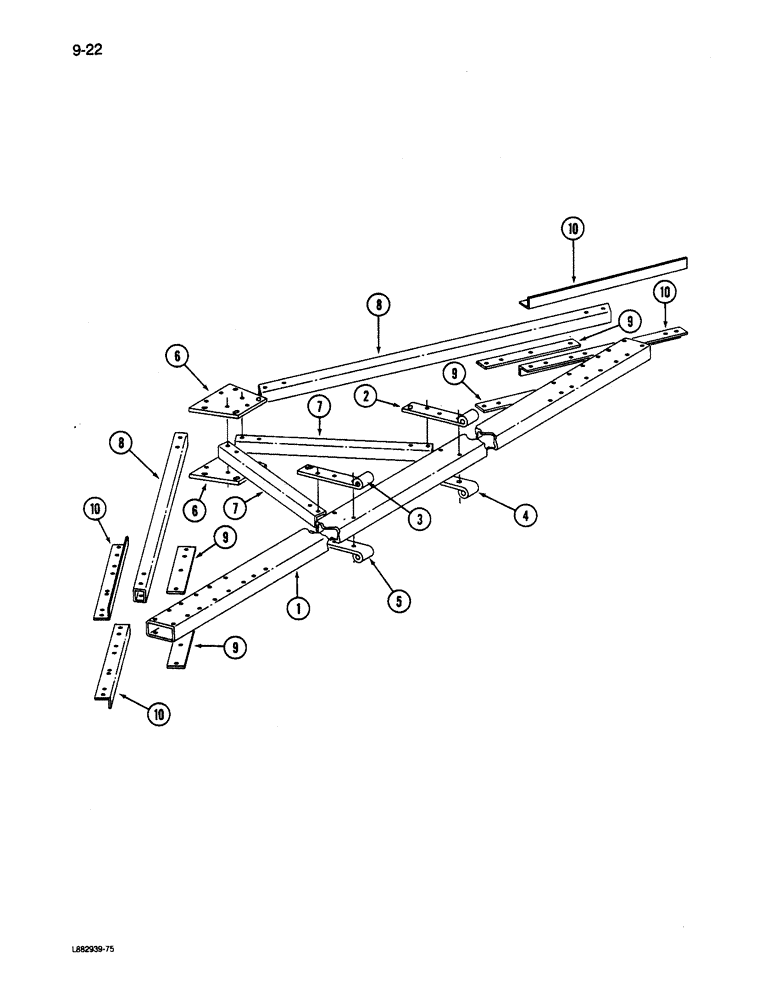

Схема запчастей Case IH 6200 - (9-022) - CENTER HITCH AND STABILIZER, TWO DRILL, HITCH SERIAL NUMBER 501 AND AFTER (09) - CHASSIS/ATTACHMENTS
10
9
10
9
7
7
4
5
6
8
9
2
8
10
9
3
1
10
6

Артикул

Название

Примечание

Количество

1

819006C3

TUBE,138.4" Length

- center hitch (16x6, 20x6)

1шт.

1

819007C2

TUBE,180.4" Length

- center hitch (24x6, 28x6, 20x7, and 24x7)

1шт.

2

819012C1

SUPPORT

- hitch hinge upper left

1шт.

3

819011C1

SUPPORT

- hitch hinge upper right

1шт.

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

4шт.

4

819011C1

SUPPORT

- hitch hinge lower left

1шт.

5

819012C1

SUPPORT

- hitch hinge lower right

1шт.

6

819009C1

PLATE

- hitch stabilizer rear

2шт.

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

4шт.

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

464623R1

WASHER

- flat, 21/32 x 1-1/2 x 3/32 inch

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

8шт.

7

819014C1

TUBE,25.17" Length

- hitch stabilizer center (20x6 and 16x6)

2шт.

7

819016C1

TUBE,30.46" Length

- hitch stabilizer center

2шт.

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

464623R1

WASHER

- flat, 21/32 x 1-1/2 x 3/32 inch

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

4шт.

8

819015C2

TUBE,47.3" Length

- hitch stabilizer outer (20x6 and 16x6)

2шт.

8

819017C1

TUBE,60.2" Length

- hitch stabilizer outer (24x6, 28x6, 20x7 and 24x7)

2шт.

9

819021C2

BAR

- outer tube support (20x6 and 16x6)

4шт.

271733

BODY,Hex, 5/8" - 11 x 4 1/2", Gr 5

- hex, 5/8 NC x 4-1/2 inch

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

8шт.

10

819008C1

ANGLE

BAR - outer tube support (24x6, 28x6, 20x7, 24x7)

4шт.

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

8шт.

Выбрано товаров: 26
