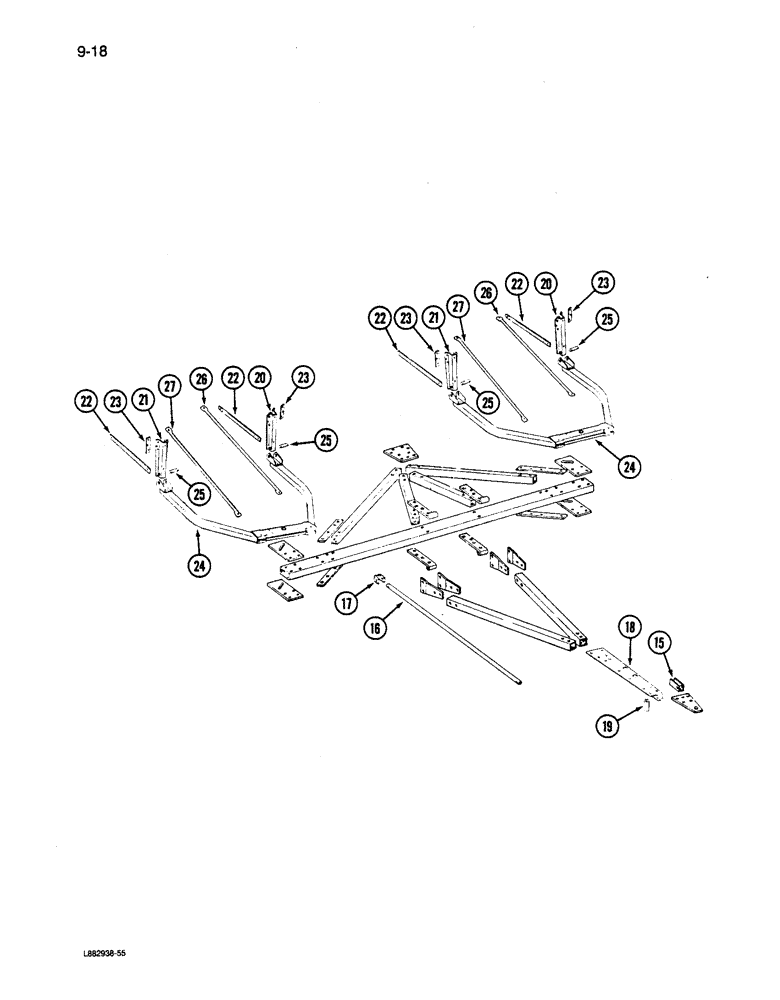

Запчасти Case IH 6200 (9-018) - HITCH, TWO DRILL HEAVY DUTY, 16 X 6, 20 X 6, 24 X 6, 28 X 6, 20 X 7, 24 X 7, 16 X 8, CONTD (09) - CHASSIS/ATTACHMENTS

15

819018C2

CHANNEL

- transport tube support

1шт.

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

1шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

1шт.

16

1279788C1

SUPPORT TUBE,26.7 mm OD, 1556 mm Length

TUBE - hitch transport support

1шт.

23948R1

HEADED PIN,3/8" x 3 1/4"

PIN, HEADED, 3/8" x 3 1/4"

2шт.

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN - hair

2шт.

17

819010C1

YOKE

- tube support

1шт.

113-709

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

1шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

- hex, 3/8 inch NC

1шт.

18

817757C1

EXTENSION

- hitch (Use with track eraser)

2шт.

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

4шт.

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

6шт.

113-643

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

3шт.

826199C1

BOLT,Adj, Hex, 5/8" - 11 x 6.50"

- hex, 5/8 NC X 6-1/2 inch

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

1шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

- flat, 21/32 x 1-1/2 x 3/32 inch

8шт.

21793R1

WASHER

- flat, 21/32 x 1-1/4 x 5/32 inch

4шт.

19

817758C1

SPACER

- extension

2шт.

20

815980C2

SUPPORT

- hitch left (16x6)

2шт.

20

815982C2

SUPPORT

- hitch left (20x6, 24x6, 28x6, 20x7, 24x7)

2шт.

21

815981C2

SUPPORT

- hitch right (16x6)

2шт.

21

815983C2

SUPPORT

- hitch right (20x6, 24x6, 28x6, 20x7, 24x7)

2шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- hex, flange lock, 1/2 inch

1шт.

22

815990C1

BAR

BRACE - hitch support (16x6)

4шт.

22

815991C1

BAR

BRACE - hitch support (24x6, 28x6, 20x7 and 24x7)

4шт.

22

816456C1

BAR

BRACE - hitch support (20x6 and 16x8)

4шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

16шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

16шт.

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 3/32 inch

8шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

16шт.

23

819681C1

BAR

BRACE - hitch support upper reinforcement

4шт.

24

818349C2

TRAILER HITCH

HITCH - basic

2шт.

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 3/32 inch

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

25

818251C1

PIN

- hitch pivot channel

2шт.

520175R1

CLIP

PIN - hair

8шт.

26

818383C2

BRACE

SUPPORT - hitch left

2шт.

27

818384C2

BRACE

SUPPORT - hitch right

2шт.

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

4шт.

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

4шт.

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

- flange lock, 5/8 inch NC

8шт.
