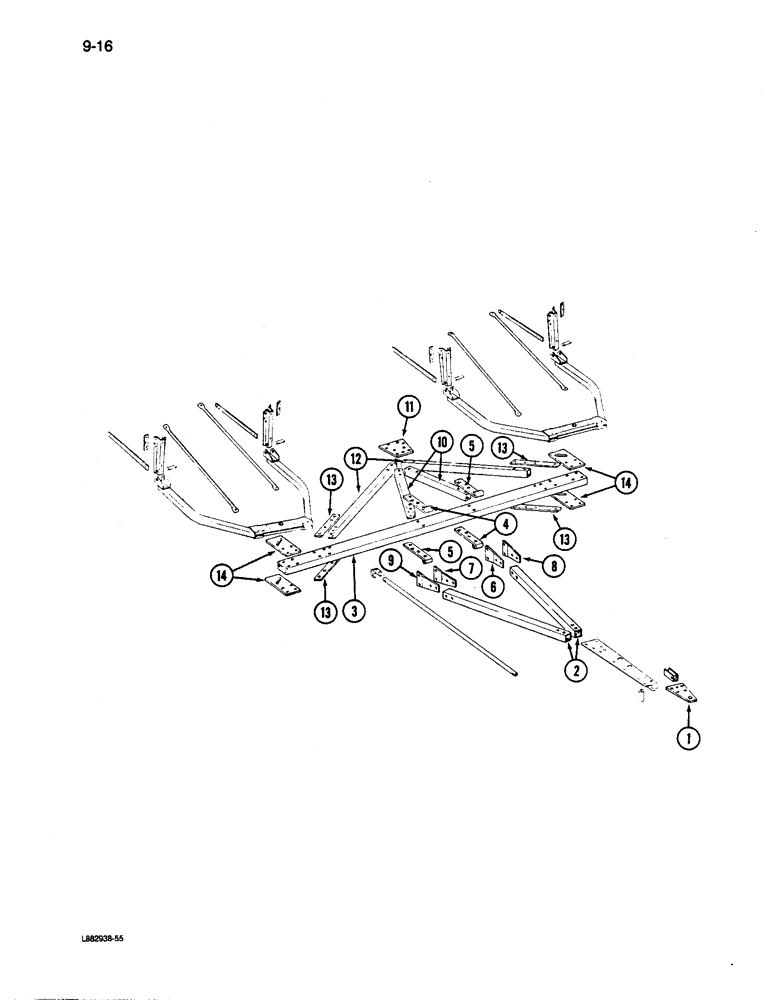

Запчасти Case IH 6200 (9-016) - HITCH, TWO DRILL HEAVY DUTY, 16 X 6, 20 X 6, 24 X 6, 28 X 6, 20 X 7, 24 X 7, 16 X 8 (09) - CHASSIS/ATTACHMENTS

1

819001C1

PLATE

- hitch front

2шт.

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

2

819013C2

TUBE,56.55" Length

- hitch front

2шт.

3

819006C3

TUBE,138.4" Length

- hitch cross (16x6, 20x6, 16x8)

1шт.

3

819007C2

TUBE,180.4" Length

- hitch cross (24x6, 28x6, 20x7, and 24x7)

1шт.

4

819011C1

SUPPORT

- hitch hinge left

2шт.

5

819012C1

SUPPORT

- hitch hinge right

2шт.

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

4шт.

6

819002C1

PLATE

- hitch hinge left inner

1шт.

7

819003C1

PLATE

- hitch hinge right inner

1шт.

8

819004C1

PLATE

- hitch hinge left outer

1шт.

9

819005C1

PLATE

- hitch hinge right outer

1шт.

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

4шт.

Q3795

HEADED PIN,3/4" x 4"

PIN - headed, 3/4 x 4 inch

4шт.

471194R1

AXLE PIN

PIN - hair

2шт.

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

2шт.

10

819016C1

TUBE,30.46" Length

- hitch stabilizer center (24x6, 28x6, 20x7, 24x7)

2шт.

10

819014C1

TUBE,25.17" Length

- hitch stabilizer center (20x6, and 16x8)

2шт.

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

464623R1

WASHER

- flat, 21/32 x 1-1/2 x 3/32 inch

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

4шт.

11

819009C1

PLATE

- hitch stabilizer rear

2шт.

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

8шт.

464623R1

WASHER

- flat, 21/32 x 1-1/2 x 3/32 inch

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

8шт.

12

819015C2

TUBE,47.3" Length

- hitch stabilizer outer (20x6 and 16x8)

2шт.

12

819017C1

TUBE,60.2" Length

- hitch stabilizer (24x6, 28x6 20x7 and 24x7

2шт.

13

819021C2

BAR

- outer tube support (20x6 and 16x8)

4шт.

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

8шт.

13

819008C1

ANGLE

BAR - outer tube support (24x6, 28x6, 20x7, 24x7)

4шт.

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

8шт.

14

819019C1

BAR

- drill hitch

4шт.

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

8шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

819258C1

BOLT,Hex, 7/8" - 9 x 5", Drilled

- hex, 7/8 NC x 5 inch

2шт.

130384

SHOVEL

- flat, 15/16 x 1-3/4 x 3/32 inch

4шт.

427643

SLOTTED NUT,7/8"-9, G5

NUT - hex slotted, 7/8 inch NC

2шт.

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

2шт.
