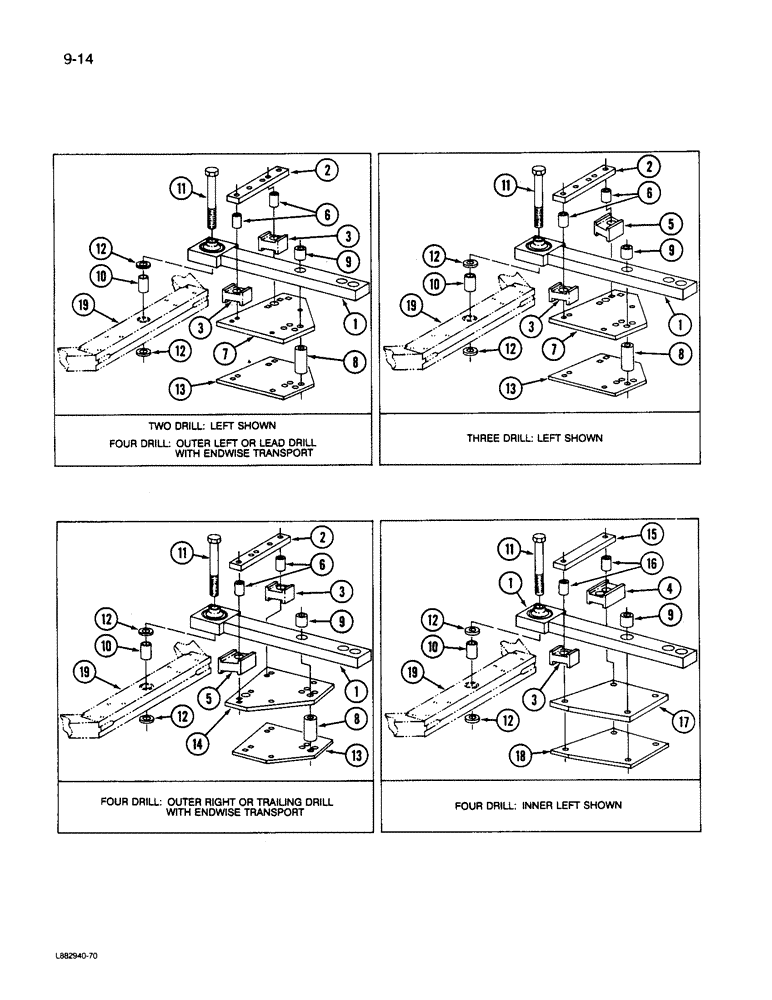

Запчасти Case IH 6200 (9-014) - HITCH LINKS AND BALL JOINTS, TWO, THREE AND FOUR DRILL HITCH, SERIAL NUMBER 501 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

1279485C1

LINK

- hitch

1шт.

2

1279543C1

BAR

- link guide outer

1шт.

3

1279491C1

BLOCK

- stop

1шт.

4

1279493C1

BLOCK

- stop

1шт.

5

1279554C1

BLOCK

- stop

1шт.

6

1279494C1

SPACER

- stop block, 17/32 x 7/8 x 1-5/16 inch

1шт.

113-437

BOLT,Hex, 1/2" - 13 x 6", Gr 5

1шт.

20869R1

WASHER

- flat, 17/32 x 7/8 x 3/64 inch

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- hex, flange lock, 1/2 inch

1шт.

7

1279540C1

PLATE

- upper hitch left outer

1шт.

7

1279541C1

PLATE

- upper hitch right outer

1шт.

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

4шт.

28646R1

CARRIAGE BOLT,#3, 1/2" - 13 x 4", Gr 5

BOLT - flat head square neck, 1/2 x 4 inch

2шт.

28645R1

CARRIAGE BOLT,#3, 1/2" - 13 x 3", Gr 5

BOLT - flat head square neck, 1/2 x 3 inch

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- hex, flange lock, 1/2 inch

6шт.

8

1279538C1

SPACER

- hitch plate, 41/64 x 1-1/8 x 2-1/2 inch

1шт.

9

1279492C1

SPACER

- pivot, 41/64 x 1-1/8 x 1-5/16

1шт.

113-643

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

2шт.

21759R1

WASHER

- flat, 21/32 x 3 x 3/32 inch

2шт.

1744763C1

NUT - flange lock, 5/8 inch NC

2шт.

20166R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- hex, 5/8 NC x 6 inch

2шт.

10

1279058C1

SPACER

- hitch pivot, 29/32 x 1-1/4 x 2-7/64 inch

2шт.

11

1279548C1

BOLT,Hex, 7/8" - 9 x 6 1/2", Gr 8, Drilled

- hex, 7/8 inch hitch ball point

2шт.

12

1279868C1

WASHER

- flat, 29/32 x 2 x 7/32 inch

4шт.

427643

SLOTTED NUT,7/8"-9, G5

NUT - hex, slotted, 7/8 inch NC

2шт.

137214

COTTER PIN

1/8" x 1-3/4"

2шт.

13

1279542C1

PLATE

- lower hitch outer

2шт.

14

1279541C1

PLATE

- upper hitch outer

1шт.

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

4шт.

28646R1

CARRIAGE BOLT,#3, 1/2" - 13 x 4", Gr 5

BOLT - flat head square neck, 1/2 x 4 inch

2шт.

28645R1

CARRIAGE BOLT,#3, 1/2" - 13 x 3", Gr 5

BOLT - flat head square neck, 1/2 x 3 inch

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- hex, flange lock, 1/2 inch

6шт.

15

1279489C1

BAR

- link guide, inner

1шт.

16

1279490C1

SPACER

- stop block, 41/64 x 7/8 x 1-5/16 inch

4шт.

113-654

BOLT,Hex, 5/8" - 11 x 7", Gr 5

4шт.

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

- flange lock, 5/8 inch NC

4шт.

17

1279488C1

PLATE

- upper hitch inner

1шт.

18

1279487C1

PLATE

- lower hitch inner

1шт.

113-647

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- hex, 5/8 NC x 5 inch

2шт.

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

- flange lock, 5/8 inch NC

1шт.

19

REF

INSTRUCTION

HITCH - basic (See Page 9-7)

1шт.
