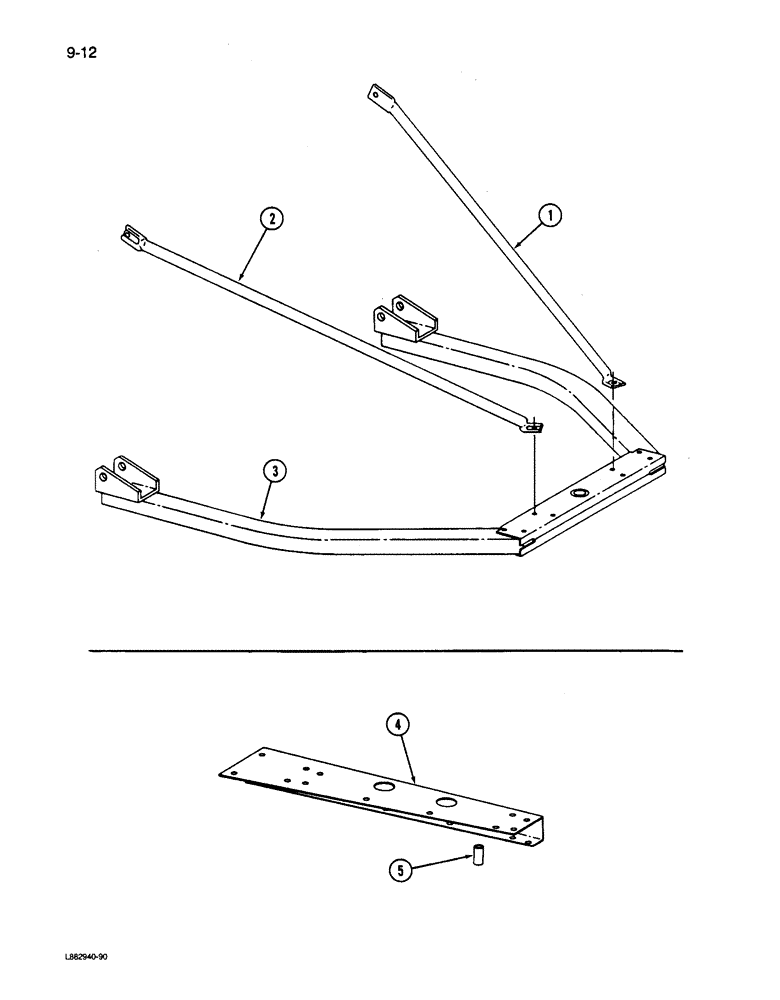

Запчасти Case IH 6200 (9-012) - HITCH SUPPORTS, MULTIPLE DRILLS, HITCH SERIAL NUMBER 501 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

818383C2

BRACE

SUPPORT - hitch left

1шт.

2

818384C2

BRACE

SUPPORT - hitch right

1шт.

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

2шт.

21905R1

WASHER

- flat, 21/32 x 1-3/4 x 7/32 inch

2шт.

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

- flange lock, 5/8 inch NC

4шт.

3

REF

INSTRUCTION

HITCH - basic (See Page 9-7)

1шт.

4

817757C1

EXTENSION

- hitch

1шт.

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Hitch extension Hex, 5/8"-11 x 1 1/2", G5, Full Thd

4шт.

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch, hitch extension

6шт.

113-643

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

Hitch extension Hex, 5/8"-11 x 5 1/2", G5

3шт.

826199C1

BOLT,Adj, Hex, 5/8" - 11 x 6.50"

- hex, 5/8 NC x 5-1/2 inch, hitch extension

1шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , Hitch extension 5/8"

14шт.

464623R1

WASHER

- flat, 21/32 x 1-1/2 x 3/32 inch, hitch extension

14шт.

21793R1

WASHER

- flat, 21/32 x 1-1/4 x 5/32 inch, hitch extension

14шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC, hitch extension

14шт.

5

817758C1

SPACER

- extension, hitch

2шт.
