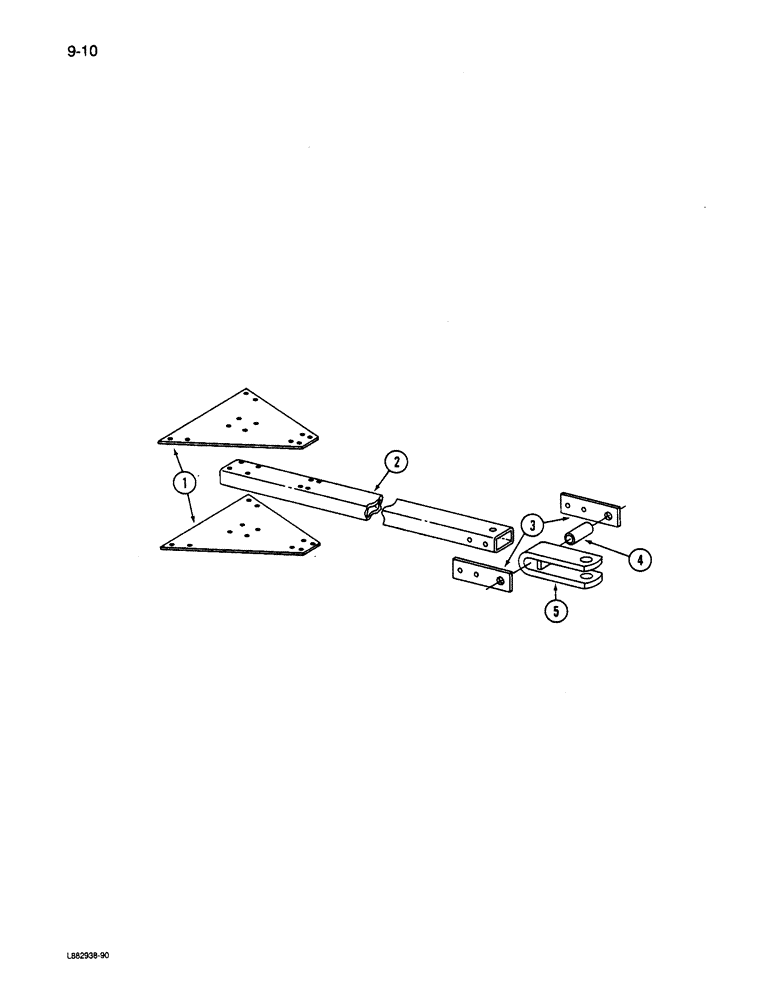

Запчасти Case IH 6200 (9-010) - FRONT HITCH SINGLE DRILL (09) - CHASSIS/ATTACHMENTS

1

818354C1

PLATE

- hitch

2шт.

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

11шт.

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

12шт.

2

818355C1

TUBE,1093 mm Length

- hitch

1шт.

3

1333760C1

CLEVIS

BRACE - clevis pivot (replaces 818356C1)

2шт.

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

113-643

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

1шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

3шт.

4

819724C1

PIN

SPACER - hitch clevis pivot (replaces 818142C1)

1шт.

5

608499R21

CLEVIS

- hitch (replaces 813560C1)

1шт.

113-928

BOLT,Hex, 1" - 8 x 6", Gr 5

- hex, 1 NC x 6 inch

1шт.

9849633

NUT,1"-8, G5

1шт.
