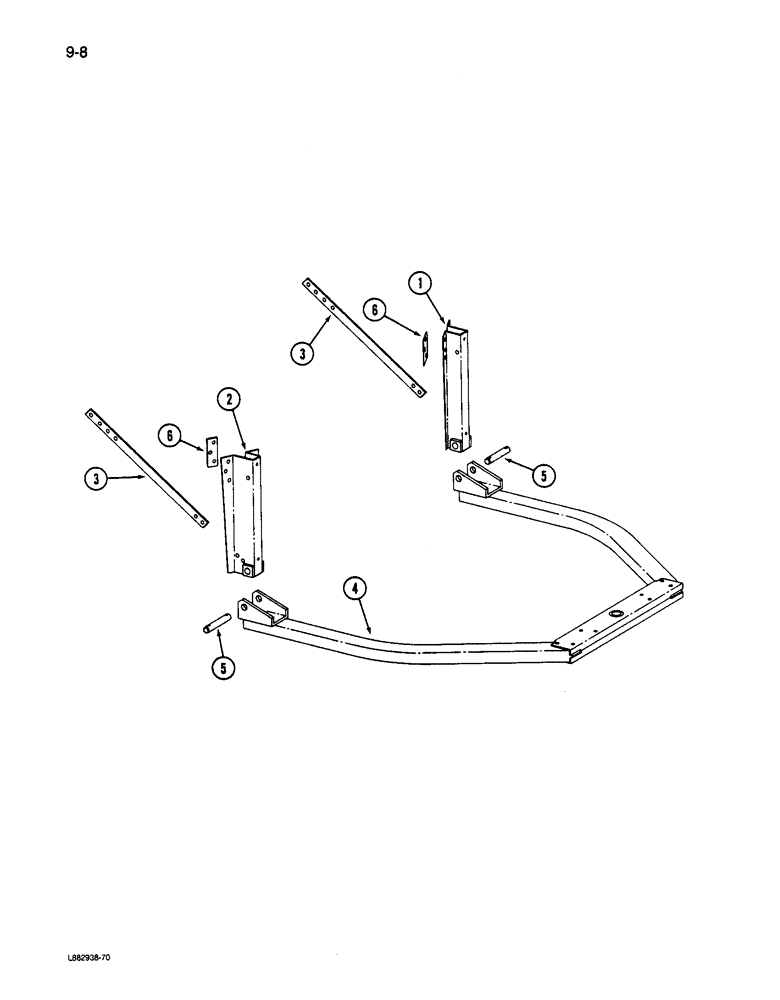

Запчасти Case IH 6200 (9-008) - BASIC HITCH (09) - CHASSIS/ATTACHMENTS

1

1279119C1

CHANNEL

SUPPORT - hitch left (16x6)

1шт.

1

1279123C1

CHANNEL

SUPPORT - hitch left (20x6, 24x6, 28x6, 20x7, 24x7, 16x8)

1шт.

ref #1 (P/N 127949C1, P/N 1279123C1, & P/N 1279120C1) - 19.62 inches

1шт.

P/N 1279123C1 and 1279124C1 - 3 Bolt holes

1шт.

2

1279120C1

CHANNEL

SUPPORT - hitch right (16x6)

1шт.

2

1279124C1

CHANNEL

SUPPORT - hitch right (20x6, 24x6, 28x6, 20x7, 24x7, 16x8)

1шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- hex, flange lock, 1/2 inch

8шт.

3

1279125C1

BAR

BRACE - hitch support (16x6)

2шт.

3

1279127C1

BAR

BRACE - hitch support (24x6, 28x6, 20x7, 24x7)

2шт.

3

1279126C1

BAR

BRACE - hitch support (20x6, 16x8)

2шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 3/32 inch

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

4

818349C2

TRAILER HITCH

HITCH - basic

1шт.

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 3/32 inch

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

5

818251C1

PIN

- hitch pivot channel

2шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

4шт.

6

819681C1

BAR

BRACE - hitch support upper reinforcement

4шт.
