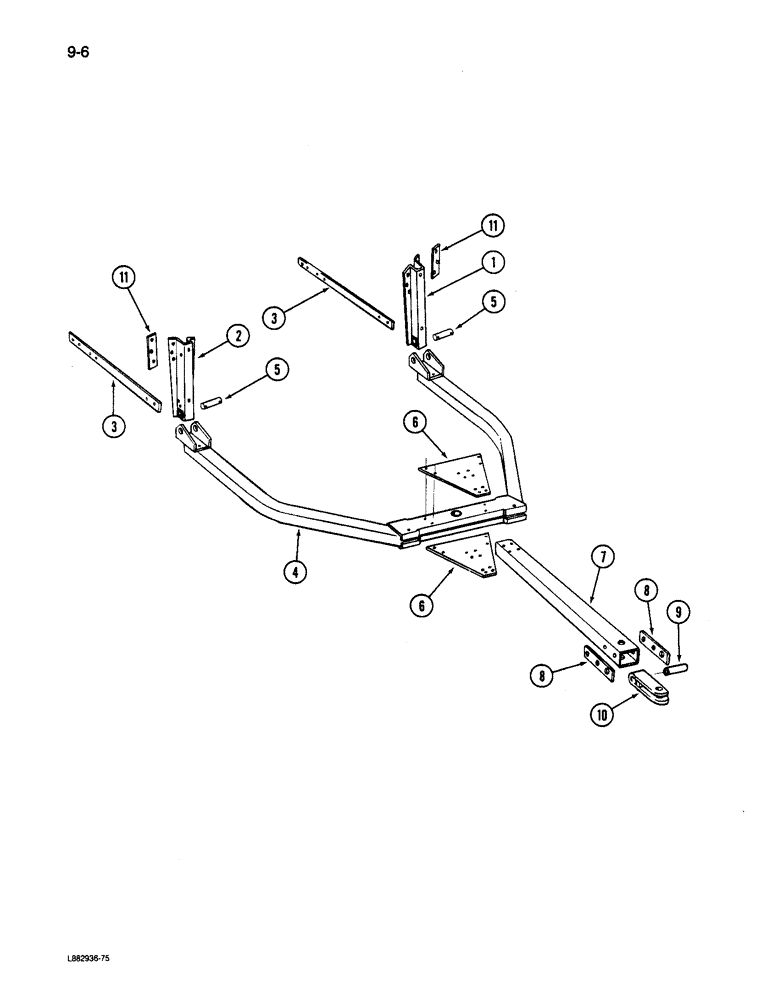

Запчасти Case IH 6200 (9-006) - SINGLE DRILL HITCH (09) - CHASSIS/ATTACHMENTS

1

815980C2

SUPPORT

- hitch left (16x6)

1шт.

1

815982C2

SUPPORT

- hitch left (20x6, 24x6, 28x6, 20x7, 24x7, 16x8)

1шт.

2

815981C2

SUPPORT

- hitch right (16x6)

1шт.

2

815983C2

SUPPORT

- hitch right (20x6, 24x6, 28x6, 20x7, 24x7, 16x8)

1шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

(16x6) Hex, 1/2"-13 x 1", G5, Full Thd

8шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

(16x6) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

8шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

(20x6, 24x6, 28x6, 20x7, 24x7 and 16x8) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

12шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- hex, flange lock, 1/2 inch

1шт.

3

815990C1

BAR

BRACE - hitch support (16x6)

2шт.

3

815991C1

BAR

BRACE - hitch support (24x6, 28x6, 20x7 and 24x7)

2шт.

3

816456C1

BAR

BRACE - hitch support (20x6 and 16x8)

2шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 3/32 inch

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

4

818349C2

TRAILER HITCH

HITCH - basic

1шт.

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 3/32 inch

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

5

818251C1

PIN

- hitch pivot channel

2шт.

520175R1

CLIP

PIN - hair

4шт.

6

818354C1

PLATE

- hitch

2шт.

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

1шт.

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

11шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

12шт.

7

818355C1

TUBE,1093 mm Length

- hitch

1шт.

8

1344549C1

TRAILER HITCH

BRACE - clevis pivot (replaces 818356C1)

2шт.

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

113-643

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

1шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

3шт.

9

819724C1

PIN

SPACER - hitch clevis pivot (replaces 818142C1)

1шт.

10

1333760C1

CLEVIS

- hitch (replaces 813560C1)

1шт.

113-928

BOLT,Hex, 1" - 8 x 6", Gr 5

- hex, 1 NC x 6 inch

1шт.

9849633

NUT,1"-8, G5

1шт.

11

819681C1

BAR

BRACE - hitch support upper reinforcement

4шт.
