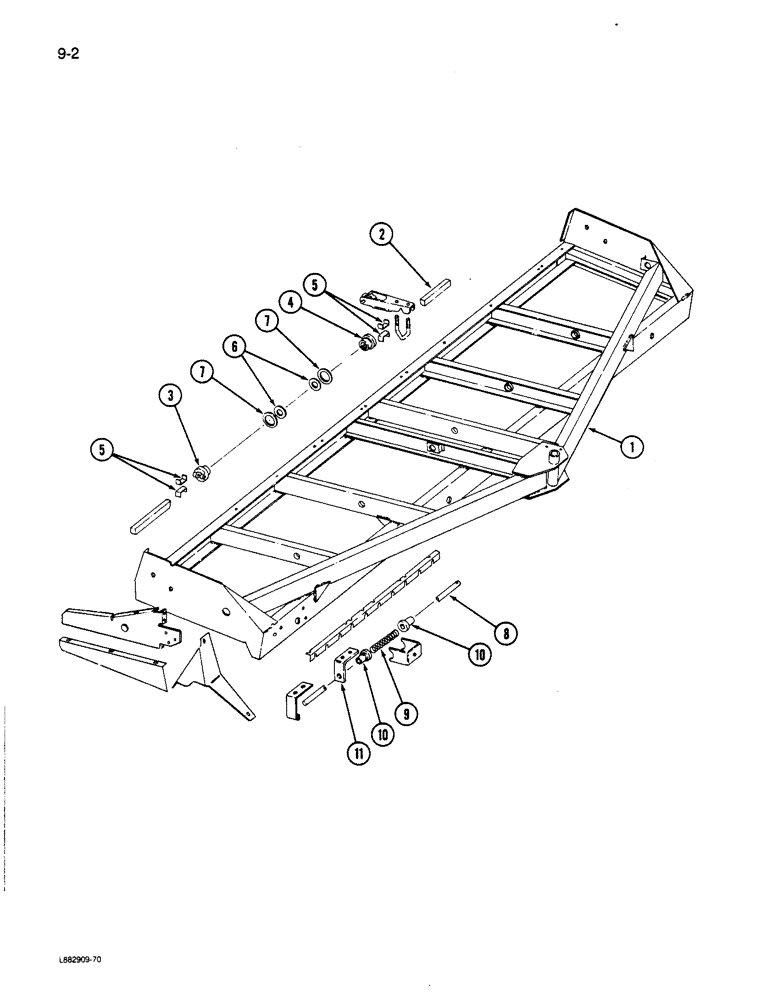

Запчасти Case IH 6200 (9-002) - MAIN FRAME (09) - CHASSIS/ATTACHMENTS

1

819083C92

FRAME

ASSEMBLY - main (14 x 6)

1шт.

1

819084C93

FRAME

ASSEMBLY - main (16 x 6)

1шт.

1

819085C93

FRAME

ASSEMBLY - main (20 x 6 and 16 x 8)

1шт.

1

819086C93

FRAME

ASSEMBLY - main (24 x 6 and 20 x 7)

1шт.

1

819087C93

FRAME

ASSEMBLY - main (28 x 6 and 24 x 7)

1шт.

Ref #1 - The Tube at the front of this frame is 815917C1 Weldment

1шт.

REF

INSTRUCTION

DECAL - caution (See Page 9-183)

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

10шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.

2

NSS

NOT SOLD SEPARAT

BAR - rockshaft, 87-5/16 inch, (14 x 6)(Order 603164R1 and, Serial Range: cut-length)

1шт.

2

603164R1

ROCKSHAFT

BAR - rockshaft, 94-5/16 inch

1шт.

2

815971C1

BAR

- rockshaft, (16 x 6)

1шт.

2

NSS

NOT SOLD SEPARAT

BAR - rockshaft, 64-3/8 inch, (20 x 6 and 16 x 8) (Order 603919R1 and, Serial Range: cut-length)

2шт.

2

603919R1

BAR

- rockshaft, 71-1/2 inch

1шт.

2

NSS

NOT SOLD SEPARAT

BAR - rockshaft, 73-7/8 inch, (24 x 6 and 20 x 7) (Order 603164R1 and, Serial Range: cut-length)

2шт.

2

NSS

NOT SOLD SEPARAT

BAR - rockshaft, 85-3/8 inch (28 x 6 and 24 x 7) (Order 603164R1 and, Serial Range: cut-length)

2шт.

3

603114R1

TRUNNION

- rockshaft end (2 per bar)

1шт.

19579R1

SET SCREW

SCREW - square head cup point, set 7/16 NC x 7/8 inch

2шт.

4

815086C1

TRUNNION

- rockshaft intermediate (4 used 14 x 6, 16 x 6; 6 used 20 x 6, 24 x 6, 20 x 7, 24 x 7, and 16 x 8)

1шт.

5

603196R1

CHANNEL

CHANGE - trunnion retaining (8 used 14 x 6, 16 x 6; 12 used 20 x 6, 24 x 6, 28 x 6, 20 x 7, 24 x 7, and 16 x 8)

1шт.

6

23696R1

WASHER

- flat, 1-27/32 x 2-3/4 x 1/16 inch

1шт.

7

22766R1

WASHER

- flat, 1-13/32 x 2-1/4 x 3/8 inch

1шт.

8

816850C1

ROD

- drawbar pivot (14 x 6)

1шт.

8

816851C1

ROD

- drawbar pivot (16 x 6)

1шт.

8

816852C1

ROD

- drawbar pivot (20 x 6 and 16 x 8)

1шт.

8

816849C1

ROD

- drawbar pivot (24 x 6 and 20 x 7)

1шт.

8

816853C1

ROD

- drawbar pivot (28 x 6 and 24 x 7)

1шт.

9

16046D

SPRING

- drawbar lock pivot rod (1 used per furrow opener)

1шт.

10

815264C1

BUSHING,19.43mm ID x 24.89mm OD x 31.24mm L

- drawbar lock (2 used per furrow opener)

1шт.

11

815262C1

ANGLE

BRACKET - pivot shaft support (6 used 14x6, 16x6; 7 used 16x8; 9 used 20x6, 24x6, 20x7, and 24x7; 11 used 28x6)

1шт.

113-2427

BOLT,Hex, 1/2" - 13 x 5/8", Gr 5, Full Thd

- hex, 1/2 NC x 5/8 inch

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.
