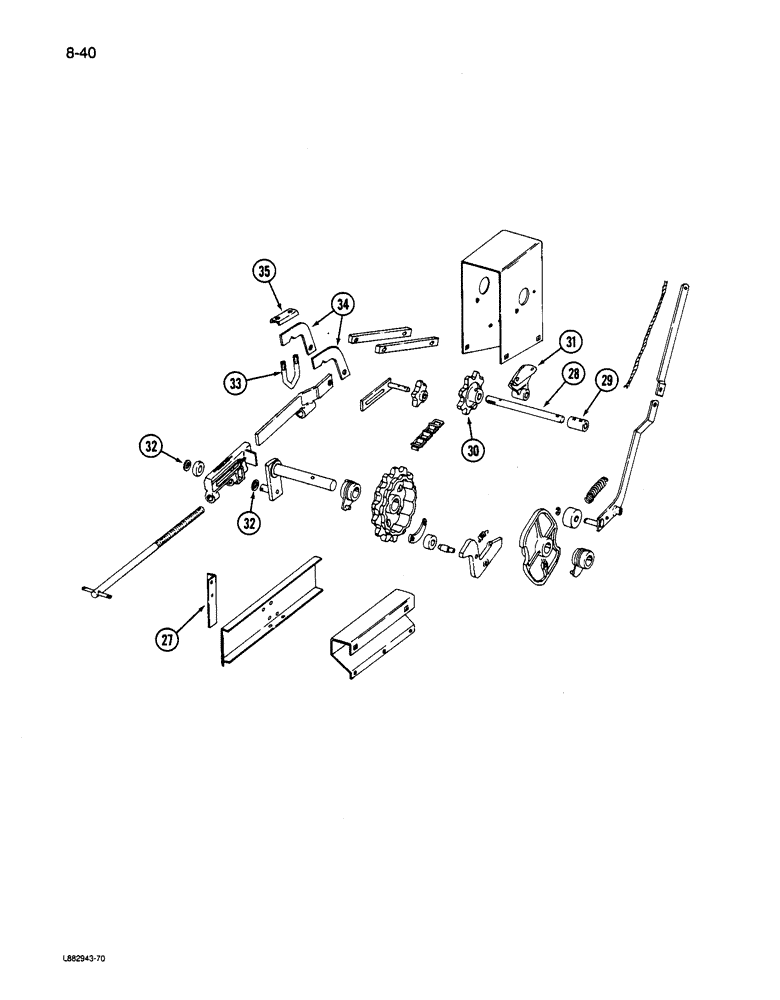

Запчасти Case IH 6200 (8-40) - POWER LIFT, CONTD (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
27
816424C1
ANGLE
- power lift support channel right (20x6, 24x6, 28x6, 20x7, 24x7 and 16x8)
1шт.
27
816423C1
ANGLE
- power lift support channel left (20x6, 24x6, 28x6, 20x7, 24x7 and 16x8)
1шт.
113-424
BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd
8шт.
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
8шт.
129-105
NUT,Hex, 1/2" - 13, Gr 5
8шт.
28
816425C1
SHAFT
- power lift left (20x6 and 16x8)
1шт.
28
816426C1
SHAFT
- power lift right (20x6 and 16x8)
1шт.
28
816427C1
SHAFT
- power lift left (24x6, 28x6, 20x7, 24x7)
1шт.
28
816428C1
SHAFT
- power lift right (24x6, 28x6, 20x7, 24x7)
1шт.
29
816429C1
SPACER
- power lift shaft coupling (20x6, 24x6, 20x7, 24x7, and 16x8)
2шт.
SB191
HEADED PIN,3/8" x 1 3/4"
PIN - headed 3/8 x 1-3/4 inch
4шт.
132-310
COTTER PIN,1/8" x 1"
PIN, SPLIT (COTTER), 1/8" x 1"
4шт.
30
603374R1
SPROCKET ASSY.
SPROCKET - power lift drive (20x6, 24x6, 28x6, 20x7, 24x7, and 16x8)
2шт.
132-317
COTTER PIN,3/16" x 2"
PIN, SPLIT (COTTER), 3/16" x 2"
2шт.
124553
WOODRUFF KEY,#15, 1/4" x 1", HT
2шт.
31
816021C1
COUNTERSHAFT
BEARING - power lift shaft (20x6, 24x6, 28x6, 20x7, 24x7 and 16x8)
2шт.
80711
LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg
NIPPLE, LUBE, 65º, 1/8" NPT x 7/8" lg
2шт.
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
32
178375R1
WASHER
- flat, 25/32 x 1-1/4 x 3/64 inch
2шт.
33
603392R1
BOLT,U, 5/8" - 11 x 3 9/16"
U-BOLT - lift arm clamp
2шт.
192-25
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
280374
NUT,Hex, 5/8" - 11, Gr 5
- hex, 5/8 inch NC
4шт.
34
815557C1
ARM
- rockshaft lift (14x6, 16x6)
2шт.
34
816414C1
ARM
- rockshaft lift (20x6, 24x6, 20x7, 24x7, and 16x8)
4шт.
138081
PIN
- clevis, 5/8 x 1-23/32 inch
1шт.
21782R1
WASHER
- flat, 21/32 x 1-1/2 x 3/64 inch
1шт.
103385
COTTER PIN,1/8" x 1"
PIN, SPLIT (COTTER), 1/8" x 1"
1шт.
35
603393R1
CHANNEL
- lift arm clamp
2шт.
Выбрано товаров: 30
