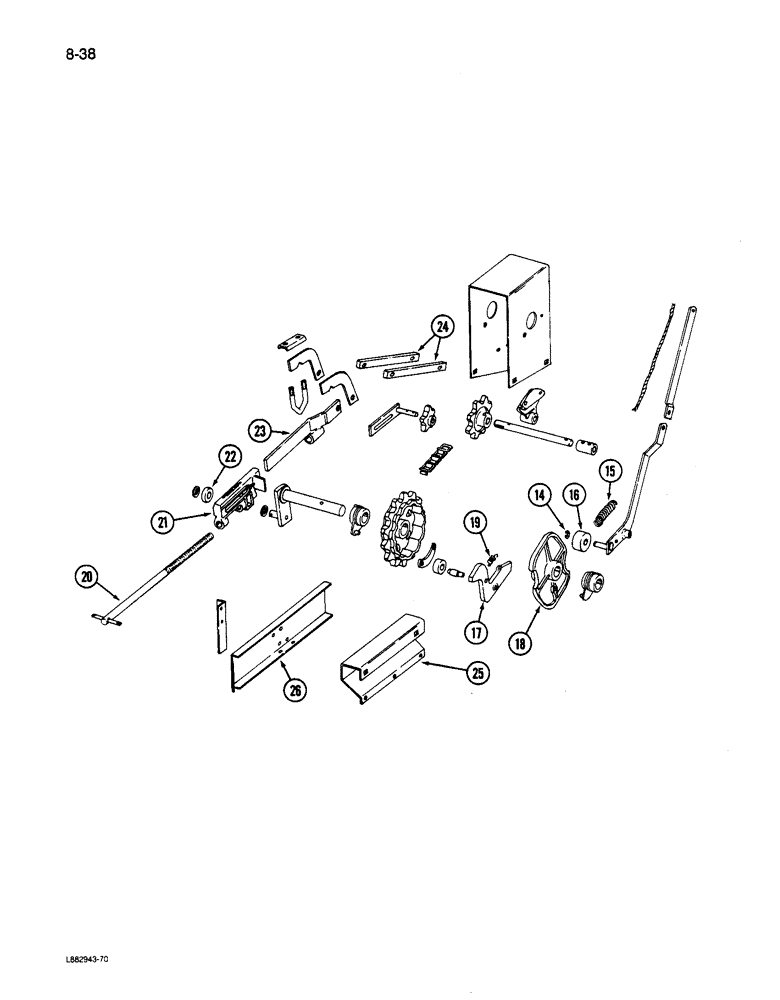

Запчасти Case IH 6200 (8-38) - POWER LIFT, CONTD (08) - HYDRAULICS

14

370290R1

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, , roller #50, .392" Dia, E-Type

2шт.

15

98457H

SPRING

- trip lever

2шт.

16

603378R2

ROLLER

- trip stop

2шт.

17

603382R1

PAWL

DOG - power lift right

1шт.

17

603381R1

PAWL

DOG - power lift left

1шт.

18

608421R1

CARRIER

- trip dog right

1шт.

18

608420R1

CARRIER

- trip dog left

1шт.

19972R1

PIN,11.1mm OD x 11.1mm L, Coiled

- coiled spring, 7/16 x 2-1/2 inch

2шт.

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

19

37AC

SPRING

- trip dog

2шт.

20

815550C1

ADJUSTMENT SCREW

- lift adjusting

2шт.

427637

SLOTTED NUT,3/4"-10, G5

NUT - hex slotted, 3/4 inch NC

2шт.

455182R1

LOCK PIN,3/16" x 1 1/8", Slotted

Pin, 3/16" x 1 1/8", Slotted

2шт.

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

21

815552C1

SLIDE

- adjustable right

1шт.

21

815553C1

SLIDE

- adjustable left

1шт.

22

601298R1

ROLLER

- adjustable slide

2шт.

23

816409C1

ARM

- slide connecting (14x6, 16x6)

1шт.

23

816411C1

ARM

- slide connecting (20x6, 24x6, 28x6, 20x7, 24x7 and 16x8)

1шт.

23

816412C1

ARM

- slide connecting right (20x6, 24x6, 28x6, 20x7, 24x7 and 16x8)

1шт.

24

816415C1

BAR

- power lift bracket spacer (14x6 and 16x6)

2шт.

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

25

816416C1

SUPPORT

- power lift bracket (14x6, 16x6)

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - round head square neck, 1/2 NC x 1 inch

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

26

816417C1

CHANNEL

- power lift support left (20x6, 16x8)

1шт.

26

816418C1

CHANNEL

- power lift support right (20x6, 16x8)

1шт.

26

816421C1

CHANNEL

- power lift support left (24x6, 28x6, 20x7, 24x7)

1шт.

26

816422C1

CHANNEL

- power lift support right (24x6, 28x6, 20x7, 24x7)

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - round head square neck, 1/2 NC x 1 inch

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

20803R1

WASHER

- 13/32 x 1 x 7/64 inch

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.
