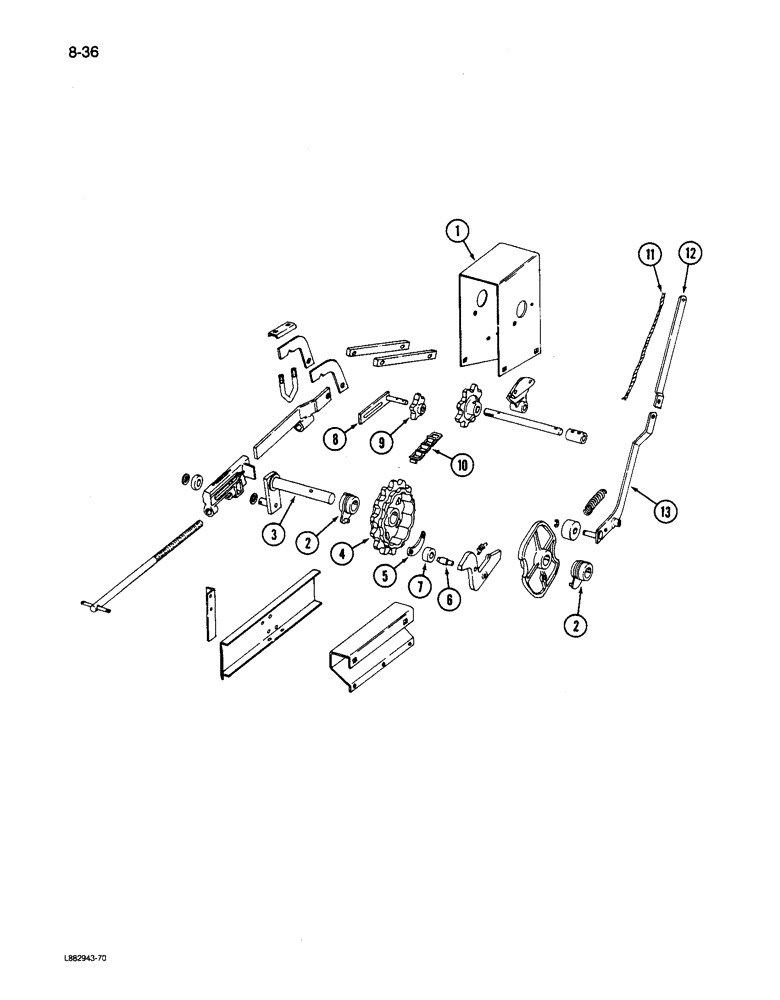

Запчасти Case IH 6200 (8-36) - POWER LIFT (08) - HYDRAULICS

1

816399C1

BRACKET

- power lift right

1шт.

1

816398C1

BRACKET

- power lift left

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

591714R1

WASHER

- flat, 23/32 x 1-1/4 x 3/64 inch

2шт.

132-347

COTTER PIN,1/4" x 1"

PIN, SPLIT (COTTER), 1/4" x 1 1/2"

2шт.

2

592770R1

CRANKSHAFT BEARING,1.257" ID x 2.12" OD x 2.06"

BEARING - power lift crank

4шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

4шт.

3

815543C1

CRANK

- power lift right

1шт.

3

815544C1

CRANK

- power lift left

1шт.

178375R1

WASHER

- flat, 25/32 x 1-1/4 x 3/64 inch

4шт.

22051R1

WASHER

- flat, l-17/32 x 2-1/4 x 3/64 inch

2шт.

608700R1

WASHER

- flat, 1-9/32 x 2 x 3/64 inch

1шт.

132-345

COTTER PIN,3/16" x 1 1/2"

PIN, SPLIT (COTTER), 3/16" x 1 1/2"

2шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

2шт.

4

603377R2

DRIVE SPROCKET

SPROCKET - clutch, 14 tooth

2шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING - grease, 90 degree, 1/8 inch

2шт.

5

603397R1

LINK

- trip dog carrier connecting

2шт.

22804R1

HEADED PIN,1/2" x 2 1/2"

PIN - headed, 1/2 x 2-1/2 inch

2шт.

132-345

COTTER PIN,3/16" x 1 1/2"

PIN, SPLIT (COTTER), 3/16" x 1 1/2"

2шт.

6

F15206

TRUNNION

PIN - trip dog roller

2шт.

7

F13685

PAWL

ROLLER - trip dog

2шт.

8

816566C1

BRACKET

- chain tightener right

1шт.

8

816402C1

BRACKET

- chain tightener left

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

619856R1

WASHER

- 13/32 x 1 x 1/16 inch

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

4шт.

21796R1

WASHER

- flat, 21/32 x 1 x 3/64 inch

4шт.

9

603375R1

DRIVE SPROCKET

SPROCKET - chain tightener 5 tooth

2шт.

271293

PULLEY

FITTING - grease, 5/16 inch straight

2шт.

10

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - power lift drive (See Note B)

1шт.

10

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - power lift drive (See Note C)

1шт.

11

NSS

NOT SOLD SEPARAT

ROPE - sisal, 5/16 x 12 foot (Dealer to supply locally)

1шт.

12

604526R1

ARM

- trip lever

2шт.

13

815539C1

BRACKET

LEVER - power lift trip right

1шт.

13

815540C1

LEVER

- power lift trip left

1шт.

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

PO15174

PIN - headed, 7/16 x 1 inch 7/16" x 1"

2шт.

21763R1

WASHER

- flat, 15/32 x 3/4 x 3/32 inch

2шт.

178373R1

WASHER

- flat, 17/32 x 1 x 1/16 inch

4шт.
