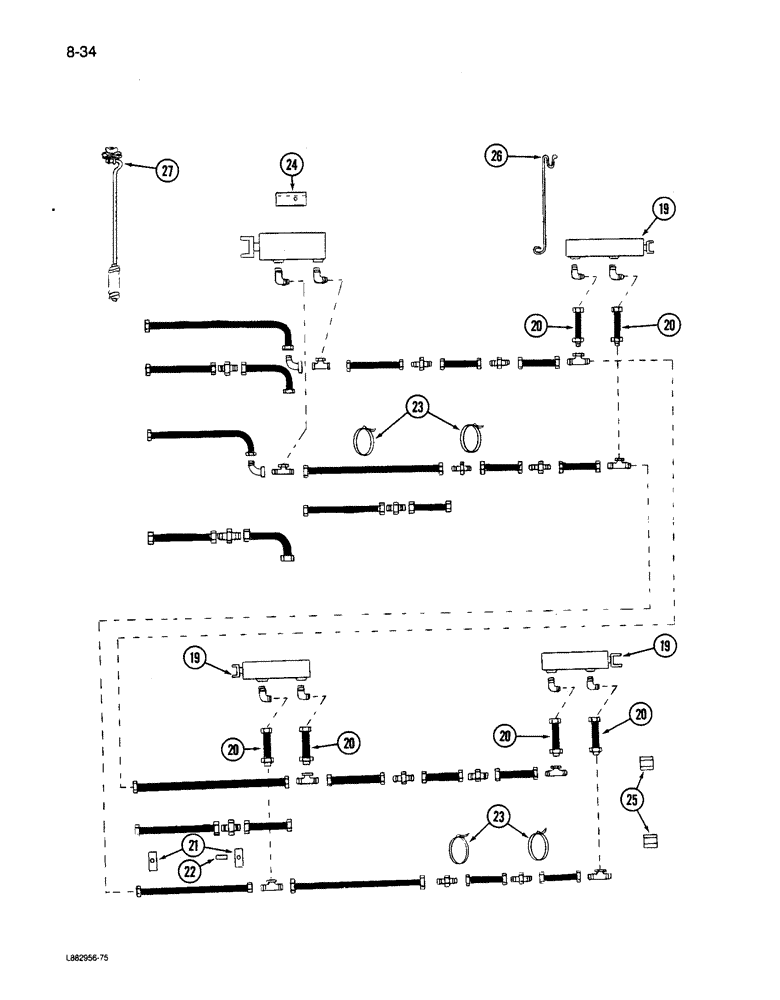

Запчасти Case IH 6200 (8-34) - HYDRAULIC SYSTEM ENDWISE TRANSPORT, CONTD (08) - HYDRAULICS

19

844025C92

CYLINDER

ASSEMBLY - hydraulic (Optional with 843125C91) (See Note)

1шт.

844042C91

PACKAGE

KIT - cylinder repair, O-ring and seal

1шт.

19

843125C91

CYLINDER

ASSEMBLY - hydraulic (Leading drill) (Optional with 844025C92) (See Note)

1шт.

19

843125C91

CYLINDER

ASSEMBLY - hydraulic (Second, third or fourth drill) (See Note)

2шт.

843219C1

KIT

- service, O-ring and seal

1шт.

19

1272402C91

CYLINDER,Double Acting, 31.7mm Rod, 203.2mm Stroke

ASSEMBLY - hydraulic (Optional with 1286321C91) (See Note)

1шт.

79975C1

SEAL KIT

KIT - cylinder repair, O-ring and seal

1шт.

19

1286321C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - hydraulic (Optional with 1272402C91) (See Note)

1шт.

843219C1

KIT

- service, O-ring and seal

1шт.

22973R1

PIN,1" x 4 1/2"

- headed, 1 x 4-1/2 inch

1шт.

21162R1

WASHER

- flat, 1-1/32 x 2 x 3/64 inch

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

20

819872C1

TUBE,0.5" OD, 5" Length

- cylinder elbow (Leading drill)

2шт.

20

819872C1

TUBE,0.5" OD, 5" Length

- cylinder elbow (Second, third or fourth drill)

4шт.

21

379045R1

CLAMP

- hose (Second, third or fourth drill)

2шт.

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

22

22055R1

SPACER,1/4" Pipe x .594"

- clamp (Second, third or fourth drill)

2шт.

23

813579C1

CABLE TIE

STRAP - hose tie (Three per drill)

1шт.

24

819825C1

CHANNEL

- hydraulic lockout

1шт.

21992R1

HEADED PIN,5/16" x 2 3/4"

PIN - headed, 5/16 x 2-3/4 inch

1шт.

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN - hair

1шт.

25

9403372

CAP,37 Degree, 3/4"-16

- 1/2 inch tube 3/4-16 thread (Second, third or fourth drill)

2шт.

26

651793R2

SUPPORT

ROD - hose support (Leading drill)

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

20803R1

WASHER

- flat, 13/32 x 1 x 7/64 inch

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

27

REF

INSTRUCTION

SUPPORT - hydraulic hose (See Page 9-179)

1шт.
