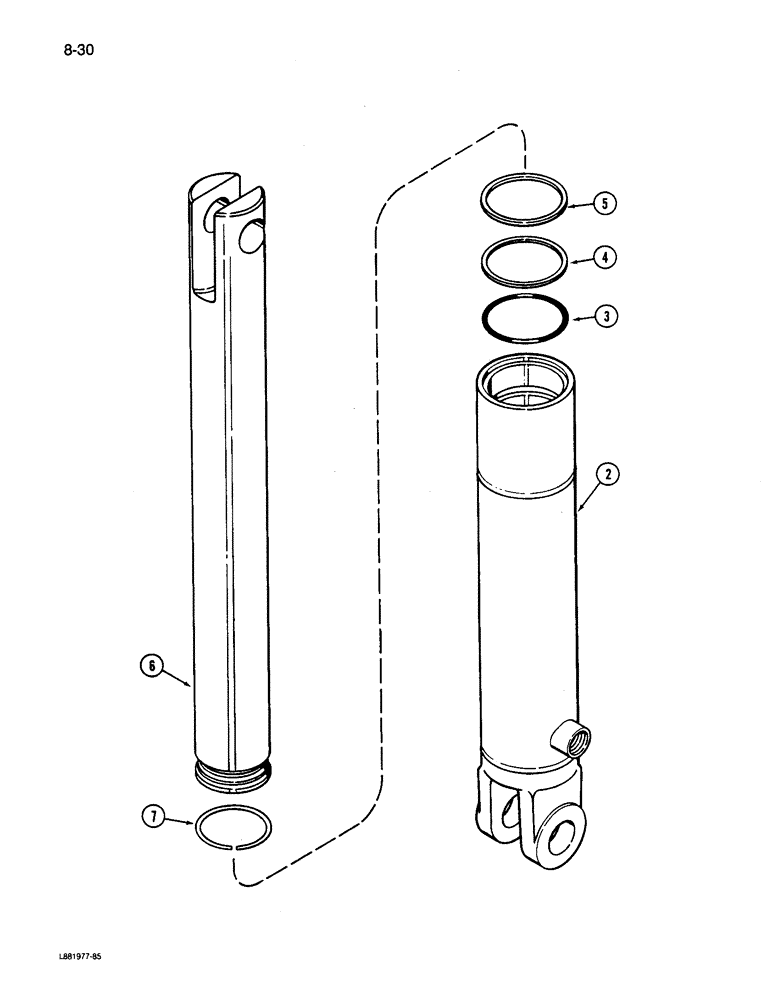

Запчасти Case IH 6200 (8-30) - LIFT CYLINDER, 2 X 8 INCH (08) - HYDRAULICS

145622C91

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 204.7mm Stroke

CYLINDER ASSEMBLY - marker lift

2шт.

2

145621C1

HYD TUBE

TUBE ASSEMBLY - CYLINDER

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - 2 x 2-3/8 inch

3шт.

Part of O-Ring and seal kit P/N 145682C1

1шт.

4

NSS

NOT SOLD SEPARAT

WASHER - back up

1шт.

Part of O-Ring and seal kit P/N 145682C1

1шт.

5

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

Part of O-Ring and seal kit P/N 145682C1

1шт.

6

149611C1

PISTON ROD

ROD - cylinder

1шт.

7

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

Part of O-Ring and seal kit P/N 145682C1

1шт.

145682C1

SEALING RING

KIT - O-ring and seal, service, Includes Ref. 3, 4, 5 and 7

1шт.
