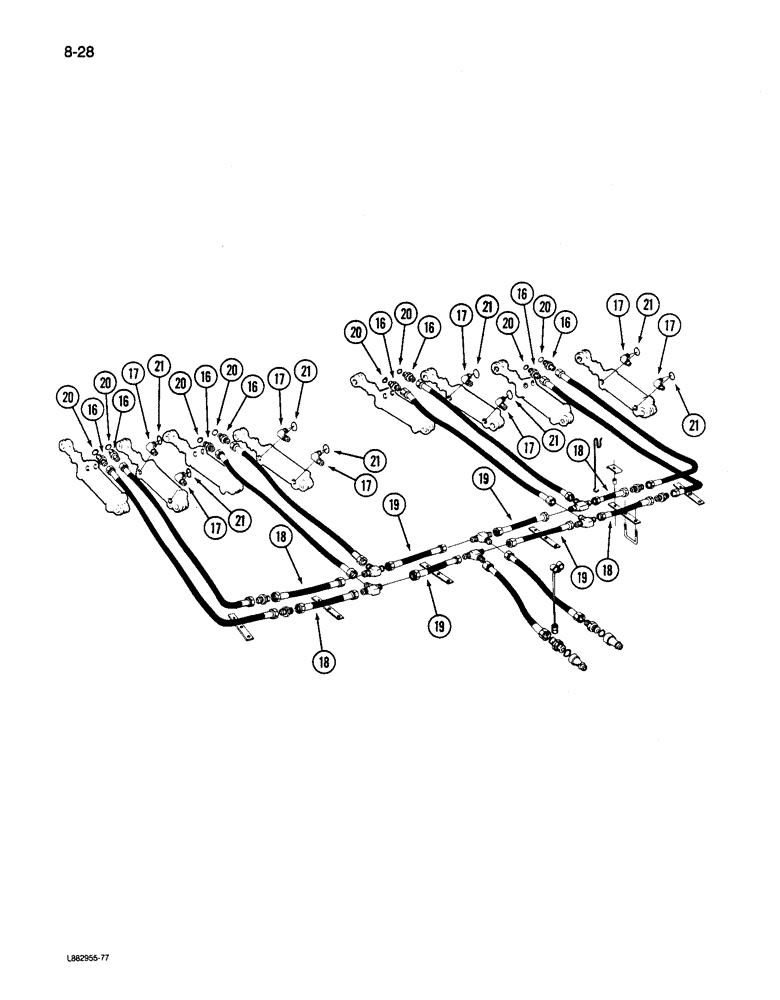

Запчасти Case IH 6200 (8-28) - HYDRAULIC LIFT SYSTEM FOUR DRILL, 20 X 6, 24 X 6, 16 X 6, 28 X 6, 20 X 7, 16 X 8 (08) - HYDRAULICS

16

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - short reducer, 1/2 tube 3/4-16 x 5/8 tube 7/8-1 (Use with 371291R96 cylinder)

8шт.

16

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - short swivel, 1/2 inch 3/4-16 thread (Use with 145353C91 cylinder)

8шт.

17

556656R1

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/2"-14, NPTF

- 90 degree (Use with 844025C92 cylinder)

8шт.

17

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

- 90 degree adjustable, 1/2 inch tube 3/4-16 thread (Use with 1272402C91 cylinder)

8шт.

18

819992C1

HOSE

ASSEMBLY - 3/8 x 128 inch (24x7, 28x6)

4шт.

18

675984R91

HOSE

ASSEMBLY - 3/8 x 80 inch (20x6, 16x8)

4шт.

18

850653C91

HYDRAULIC HOSE,0.38" ID x 104.00"

HOSE ASSEMBLY - 3/8 x 104 inch (24x6, 20x7)

4шт.

18

179411C1

HOSE

ASSEMBLY - 3/8 x 61 inch (Replaces 675987R91)(16x6)

4шт.

19

179411C1

HOSE

ASSEMBLY - 3/8 x 61 inch (16x6, 20x6, 16x8)

4шт.

19

675984R91

HOSE

ASSEMBLY - 3/8 x 80 inch (24x6, 20x7, 24x7, 28x6)

4шт.

20

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch OD tube (Use with 371291R96)

8шт.

20

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 ID x 3/32 inch (Use with 145353C91 cylinder)

8шт.

21

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch OD tube (Use with 844025C92 cylinder)

8шт.
