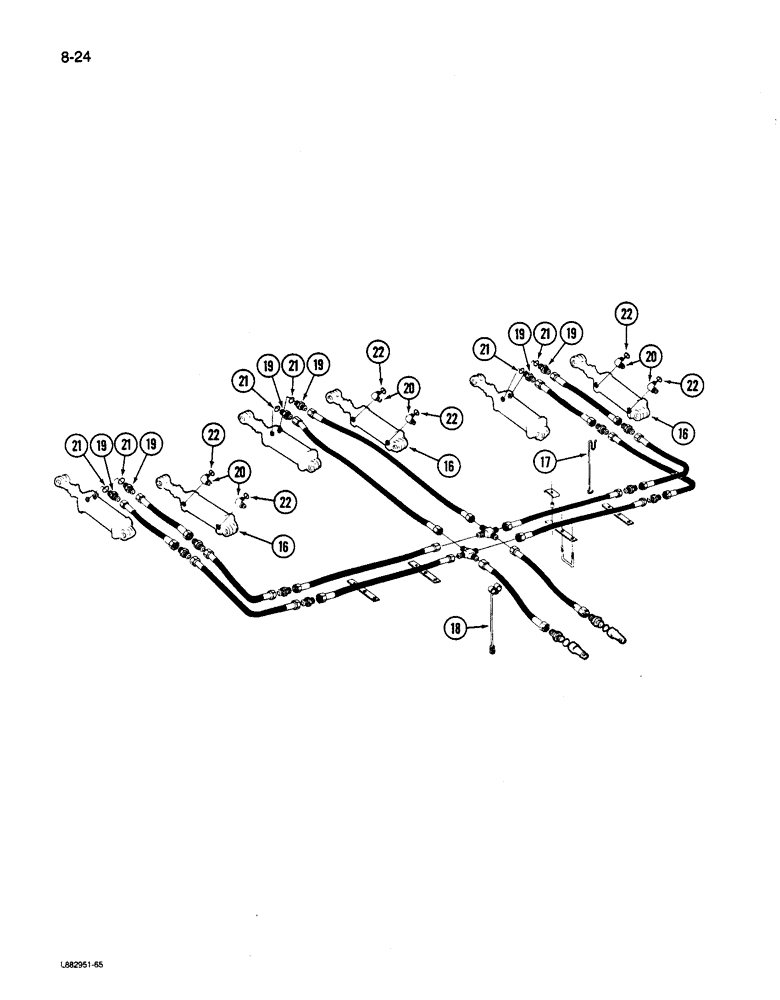

Запчасти Case IH 6200 (8-24) - HYDRAULIC LIFT SYSTEM THREE DRILL, 24 X 6, 20 X 7, 20 X 6, 16 X 8, CONTD (08) - HYDRAULICS

16

844025C92

CYLINDER

ASSEMBLY - with pipe thread ports (See Note)

2шт.

844042C91

PACKAGE

KIT - cylinder repair, O-ring and seal

1шт.

16

1272402C91

CYLINDER,Double Acting, 31.7mm Rod, 203.2mm Stroke

ASSEMBLY - hydraulic with O-ring ports (See Note)

1шт.

79975C1

SEAL KIT

KIT - cylinder repair, O-ring and seal

1шт.

844098C91

COLLAR

- stroke control

3шт.

17

651793R2

SUPPORT

ROD - hose support

3шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

3шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

464623R1

WASHER

- flat, 21/32 x 1-1/2 x 3/32 inch

6шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

3шт.

18

REF

INSTRUCTION

SUPPORT - hydraulic hose (See Page 9-179)

1шт.

19

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - short reducer, 1/2 tube 3/4-16 x 5/8 tube 7/8-1 (Use with 371291R96 cylinder)

6шт.

19

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - short swivel, 1/2 inch 3/4-16 thread (Use with 145353C91 cylinder)

6шт.

20

556656R1

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/2"-14, NPTF

- 90 degree (Use with 844025C92 cylinder)

6шт.

20

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

- 90 degree adjustable, 1/2 inch tube 3/4-16 thread (Use with 1272402C91 cylinder)

6шт.

21

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 inch OD tube (Use with 37129R96 cylinder)

6шт.

21

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 ID x 3/32 inch (Use with 145353C91 cylinder)

6шт.

22

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch OD tube (Use with 844025C92 cylinder)

6шт.
