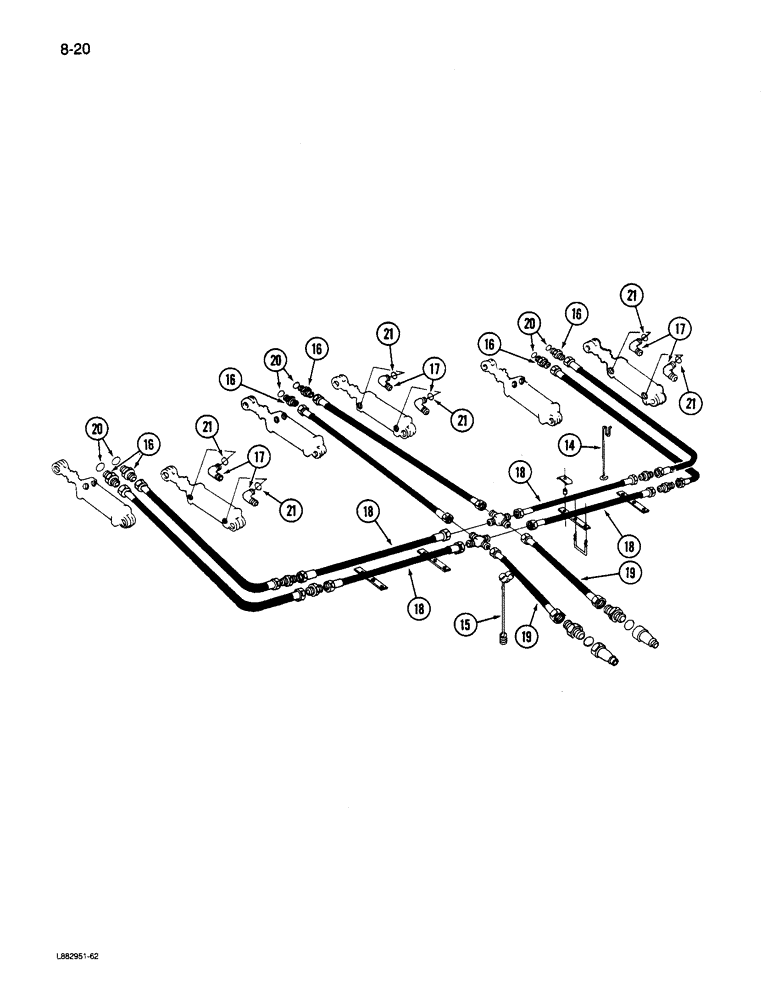

Запчасти Case IH 6200 (8-20) - HYDRAULIC LIFT SYSTEM THREE DRILL, CONTD (08) - HYDRAULICS

14

651793R2

SUPPORT

ROD - hose support (1 per machine)

3шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

3шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

464623R1

WASHER

- flat, 21/32 x 1-1/2 x 3/32 inch

6шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

3шт.

15

REF

INSTRUCTION

SUPPORT - hydraulic hose (See Page 9-27)

1шт.

16

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - short reducer, 1/2 tube 3/4-16 x 5/8 tube 7/8-1 (Use with 371291R96 cylinder)

6шт.

16

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - short swivel, 1/2 inch 3/4-16 thread (Use with 145353C91)

6шт.

17

556656R1

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/2"-14, NPTF

- 90 degree (Use with 844025C92 cylinder)

6шт.

18

819992C1

HOSE

ASSEMBLY - 3/8 x 128 inch

4шт.

19

841044C1

HYDRAULIC HOSE

HOSE ASSEMBLY - 3/8 x 103 inch (Replaces 819970C1)

2шт.

20

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch OD tube (Use with 371291R96 cylinder)

6шт.

20

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 ID x 3/32 inch (Use with 145353C91 cylinder)

6шт.

21

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch OD tube (Use with 844025C92 cylinder)

6шт.
